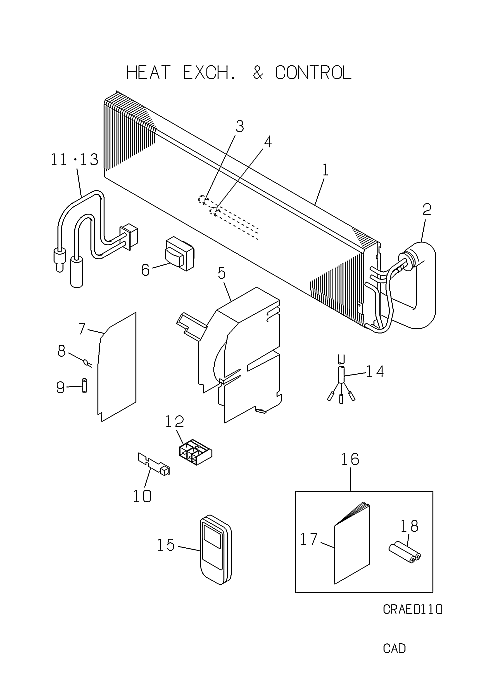

SRK09CBA HEAT EXCH. AND CONTROL

SRK09CBA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RKS311A500B
HEAT EXCH
Contact
[1-4] Contact
RKS301A500A
HEAT EXCH
Contact
[2-4] Contact
RKS321A500
P I P E
Contact
[3] Contact
SSA323F082A
UNION(SLD)
Contact
Notes: LIQ.
[4] Contact
SSA323F082
UNION
Contact
Notes: GAS
[5] Contact
RKS142A500
BOX CONT
Contact
[6] In Stock
SSA554A285B
TRANSFORMER
Show Image
SSA554A285B
[7-9] In Stock
RKS505A510CA
PWB ASSY
[8] Contact
SSA555B050A
VARISTOR
Contact
[9] Contact
SSA564A059B
FUSE
Contact
Substitute: SSA564A024B Notes: F 3A
[10] Contact
RKS505A511
PWB DISPLAY
Contact
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - PLUGS STRAIGHT INTO MAIN PCB - NO HARNESS
[11] In Stock
RKH551A511D
SENSOR ASSY
Notes: INCL.SENSOR(ROOM TEMP.& HEAT EXCH.), COIL SENSOR Show Image
RKH551A511D
[12] Contact
SSA561B669
BLOCK,TERMI
Contact
[13] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[14] Contact
RKS504A031
HARNESS ASSY
Contact
[15] In Stock
RKS502A502A
REMOCON
Notes: RKR032A002 = REMOTE HOLDER Show Image
RKS502A502A
[16] Contact
RWA008A931
PARTS STAND
Contact
[17] Contact
RWA012A210
MANUAL INST
Contact
[18] Contact
RKH549A500B
BATTERY
Contact
[19] Contact
RSA011F394A
LABEL,MODEL NAME
Contact
SKU: SRK09CBA HEAT EXCH. AND CONTROL Category:
