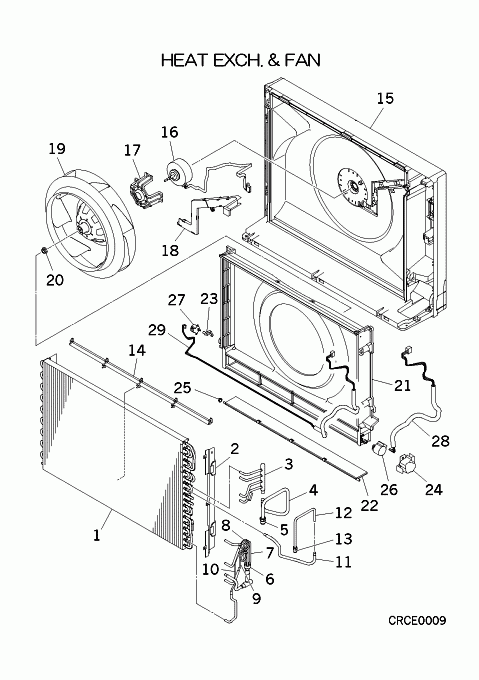

SRF50ZJX-S1 HEAT EXCH. AND FAN

SRF50ZJX-S1 HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RFB311A001
HEAT EXCH(AIR)
Contact
[1-13] Contact
RFB301A004A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RFB116A003
BRACKET,EX(R)
Contact
[3-5] In Stock
RFB315D002A
HEADER ASSY
Show Image
RFB315D002A
[4-5] Contact
RFB321A034A
PIPE ASSY(GAS)
Contact
[5] In Stock
SSA323F088B
UNION(SLD)
Notes: FOR GAS, FOR GAS‚ / LENGTH 3.2CM Show Image
SSA323F088B
[6] Contact
RSA315A004
DISTRIBUTOR
Contact
[6-10] Contact
RFB315A002
DISTRIBUTOR ASSY
Contact
[7] Contact
RFB315B003
CAPILLARY
Contact
Notes: !D2.8XD4.0 L250
[8] Contact
RFB315B004
CAPILLARY
Contact
Notes: !D2.8XD4.0 L250
[9] Contact
RFB315B005
CAPILLARY
Contact
Notes: !D2.8XD4.0 L250
[10] Contact
RFB315B006
CAPILLARY
Contact
Notes: !D2.8XD4.0 L250
[11] Contact
RFB321A030
PIPE
Contact
[12-13] Contact
RFB321A028
PIPE ASSY(LIQUID)
Contact
[13] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[14] Contact
RFB129A004
GUIDE,DRAIN
Contact
[15] Contact
RFB111A001
BASE ASSY
Contact
[16] In Stock
SSA512T118
MOTOR, DC
Notes: FOR FAN
[17] In Stock
RFB116A004
BRACKET ASSY,MOTOR
Show Image
RFB116A004
[18] Contact
RFB129A001
COVER,HARNESS
Contact
Substitute: RFB129A001B
[19] In Stock
SSA431J023
FAN TURBO
[20] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[21] In Stock
RFB433A003A
BELLMOUTH ASSY
[22] In Stock
RFB434A001
DAMPER ASSY
[23] In Stock
RFB129A012
ARM,DAMPER
Show Image
RFB129A012
[24] Contact
RFB129A003
COVER,MOTOR(A)
Contact
[25] In Stock
RKW935C200
COLLAR
Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[26] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP Show Image
SSA512T158
[27] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP Show Image
SSA512T158
[28] In Stock
RFB504A001B
HARNESS ASSY
Notes: FOR MOTOR,DAMPER Show Image
RFB504A001B
[29] In Stock
RFB504A001C
HARNESS ASSY
Notes: FOR MOTOR,DAMPER ARM Show Image
RFB504A001C
SKU: SRF50ZJX-S1 HEAT EXCH. AND FAN Category:
