SRF50ZJX-S PANEL ASSY

SRF50ZJX-S PANEL ASSY

Available Parts

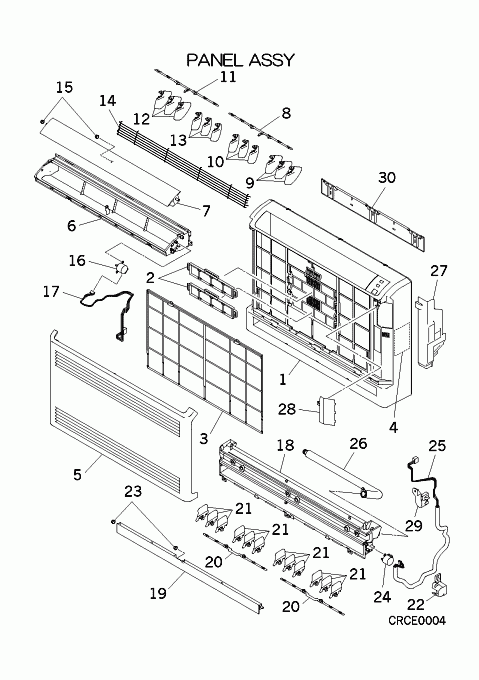

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RFB102A002 PANEL ASSY,FRONT In Stock
  • [1-4] RFB102A001B PANEL ASSY,FRONT In Stock
  • [2] RFB129A011 HOLDER,FILTER In Stock Show Image
  • [3] RFB437A001 FILTER,AIR In Stock Notes: W699XH413(T2), 1pc ONLY
  • [4] RFB011G001 LABEL,WIRING Contact   Contact
  • [5] RFB435A005 PANEL ASSY,AIR IN In Stock Substitute: RFB435A005B
  • [6] RFB435A007 GRILLE ASSY,OUT(U) In Stock
  • [7] RFB436A001 FLAP(UPPER) Out of Stock
  • [8] RFB129A006 PLATE,CONNECTING(U Contact   Contact
  • [8-10] RFB436A003 LOUVER ASSY(R) In Stock Notes: RIGHT, RIGHT
  • [9] RFB436A006 LOUVER(UPPER,A) Contact Notes: 1pc ONLY   Contact
  • [10] RFB436A007 LOUVER(UPPER,B) Contact Notes: 1pc ONLY   Contact
  • [11] RFB129A006 PLATE,CONNECTING(U Contact   Contact
  • [11-13] RFB436A004 LOUVER ASSY(L) In Stock Notes: LEFT, LEFT Show Image
  • [12] RFB436A006 LOUVER(UPPER,A) Contact Notes: 1pc ONLY   Contact
  • [13] RFB436A007 LOUVER(UPPER,B) Contact Notes: 1pc ONLY   Contact
  • [14] RFB131A001 GUARD,FAN In Stock
  • [15] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [16] SSA512T049 MOTOR,STEPPING In Stock Substitute: SSA512T158 Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [17] RFB504A001 HARNESS ASSY In Stock Notes: FOR MOTOR,FLAP(UPPER), FOR MOTOR,FLAP(UPPER) Show Image
  • [18] RFB435A008 GRILLE ASSY,OUT(L) In Stock
  • [19] RFB436A002 FLAP(LOWER) In Stock
  • [20] RFB129A007 PLATE,CONNECTING(L Contact   Contact
  • [20-21] RFB436A005 LOUVER ASSY(LOWER) In Stock Notes: 6 LOUVER FINS AND CONNECTING ROD Show Image
  • [21] RFB436A008 LOUVER(LOWER) Contact Notes: 1pc ONLY   Contact
  • [22] RFB129A008 COVER,MOTOR(B) Contact   Contact
  • [23] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [24] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [25] RFB504A001A HARNESS ASSY In Stock Notes: FOR MOTOR,FLAP(LOWER), FOR MOTOR,FLAP(LOWER) Show Image
  • [26] SSA423A114 HOSE,DRAIN In Stock
  • [27] RFB129A005 COVER(PIPE) Contact   Contact
  • [28] RFB132A002 LID(TERMINAL) Contact   Contact
  • [29] RFB937A001 CLAMP Contact   Contact
  • [30] RFB032A002 PLATE,INST(B) In Stock
SKU: SRF50ZJX-S PANEL ASSY Category:
