SRF50ZJX-S CONTROL AND PARTS SET

SRF50ZJX-S CONTROL AND PARTS SET

Available Parts

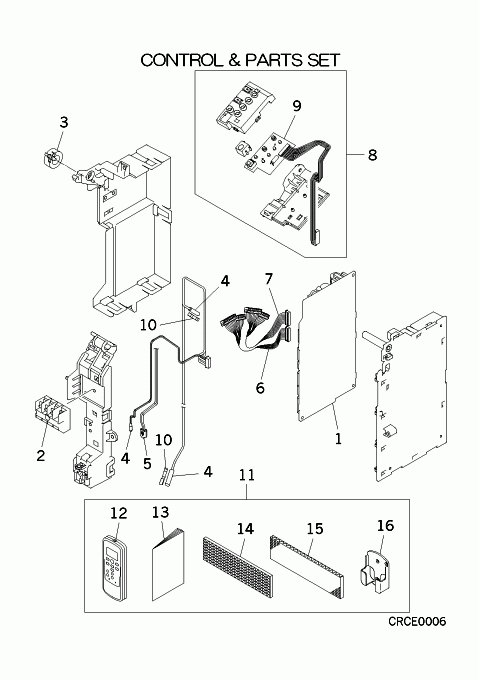

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

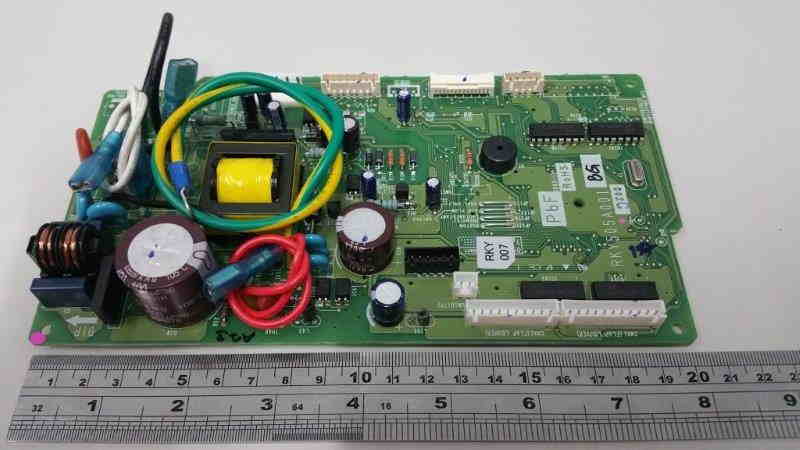

  • [1] RKY505A001BG PWB ASSY In Stock Show Image
  • [1-7] RFB501A002F CONTROL UNIT Contact   Contact
  • [2] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [3] SSA554D183 KILLER,NOISE In Stock Show Image
  • [4] SSA551A223B SENSOR ASSY In Stock Notes: INCL.SENSOR(ROOM TEMP.AND HEAT EXCH.1,2), INCL.SENSOR(ROOM TEMP.& HEAT EXCH.1,2) Show Image
  • [5] SSA551B017B SENSOR(HUMIDITY) In Stock Notes: LENGTH 52.5CM, HS Show Image
  • [6] RFB504A003 HARNESS ASSY(DAMP) Contact   Contact
  • [7] RFB504A004 HARNESS ASSY(FLAP) In Stock Show Image
  • [8] RFB503A001 DISPLAY ASSY In Stock
  • [9] RFB505A001 PWB ASSY(DISPLAY) In Stock Show Image
  • [10] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [11] RFB008A001A PARTS,STANDARD Contact   Contact
  • [12] RKX502A001K CONTROL ASSY,REMOTE In Stock Show Image
  • [13] RFB012A003 MANUAL,INSTRUCTION Contact   Contact
  • [14] RKT437A005 FILTER,CLEAN In Stock Notes: PHOTO-CATALYTIC / DEODORIZING FILTER - TRIANGULAR HONEYCOMB SHAPE, 1pc ONLY
  • [15] RKT437A801D FILTER,CLEAN(BIO) In Stock Notes: ALLERGEN FILTER/ LENGTH 25.5CM, 1pc ONLY Show Image
  • [16] RKN032A002B HOLDER In Stock Substitute: RKN032A002C Show Image
  • [17] RFB011F001F LABEL,MODEL NAME Contact   Contact
SKU: SRF50ZJX-S CONTROL AND PARTS SET Category:
