SRF50ZIX-S HEAT EXCH. AND FAN

SRF50ZIX-S HEAT EXCH. AND FAN

Available Parts

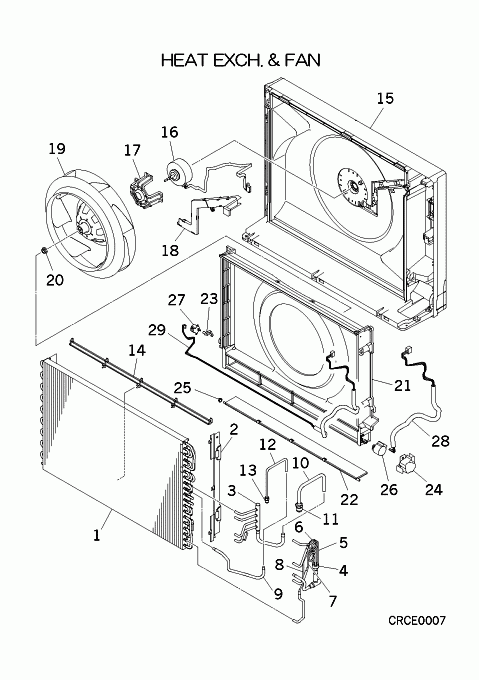

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RFB311A001 HEAT EXCH(AIR) Contact   Contact
  • [1-9] RFB301A004 HEAT EXCH ASSY(AIR Contact   Contact
  • [2] RFB116A003 BRACKET,EX(R) Contact   Contact
  • [3] RFB315D002 HEADER ASSY Contact   Contact
  • [4] RSA315A004 DISTRIBUTOR Contact   Contact
  • [4-8] RFB315A002 DISTRIBUTOR ASSY Contact   Contact
  • [5] RFB315B003 CAPILLARY Contact Notes: !D2.8XD4.0 L250, !D2.8XD4.0 L250   Contact
  • [6] RFB315B004 CAPILLARY Contact Notes: !D2.8XD4.0 L250, !D2.8XD4.0 L250   Contact
  • [7] RFB315B005 CAPILLARY Contact Notes: !D2.8XD4.0 L250, !D2.8XD4.0 L250   Contact
  • [8] RFB315B006 CAPILLARY Contact Notes: !D2.8XD4.0 L250, !D2.8XD4.0 L250   Contact
  • [9] RFB321A030 PIPE Contact   Contact
  • [10-11] RFB321A026A PIPE ASSY(GAS) Contact   Contact
  • [11] SSA323F088B UNION(SLD) In Stock Notes: FOR GAS / LENGTH 3.2CM, FOR GAS Show Image
  • [12-13] RFB321A028 PIPE ASSY(LIQUID) Contact   Contact
  • [13] SSA323F088A UNION(SLD) In Stock Notes: FOR LIQ. / LENGTH 2.3CM, FOR LIQ. Show Image
  • [14] RFB129A004 GUIDE,DRAIN Contact   Contact
  • [15] RFB111A001 BASE ASSY Contact   Contact
  • [16] SSA512T072B FAN MOTOR In Stock Notes: FOR FAN Show Image
  • [17] RFB116A004 BRACKET ASSY,MOTOR In Stock Show Image
  • [18] RFB129A001 COVER,HARNESS Contact   Contact
  • [19] SSA431J023 FAN TURBO In Stock
  • [20] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [21] RFB433A003 BELLMOUTH ASSY In Stock
  • [22] RFB434A001 DAMPER ASSY In Stock Substitute: RFB434A003
  • [23] RFB129A012 ARM,DAMPER In Stock Show Image
  • [24] RFB129A003 COVER,MOTOR(A) Contact   Contact
  • [25] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [26] SSA512T049 MOTOR,STEPPING In Stock Substitute: SSA512T158 Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [27] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [28] RFB504A001B HARNESS ASSY In Stock Notes: FOR MOTOR,DAMPER, FOR MOTOR,DAMPER Show Image
  • [29] RFB504A001C HARNESS ASSY In Stock Notes: FOR MOTOR,DAMPER ARM, FOR MOTOR,DAMPER ARM Show Image
