SRF25ZJX-S HEAT EXCH. AND FAN

SRF25ZJX-S HEAT EXCH. AND FAN

Available Parts

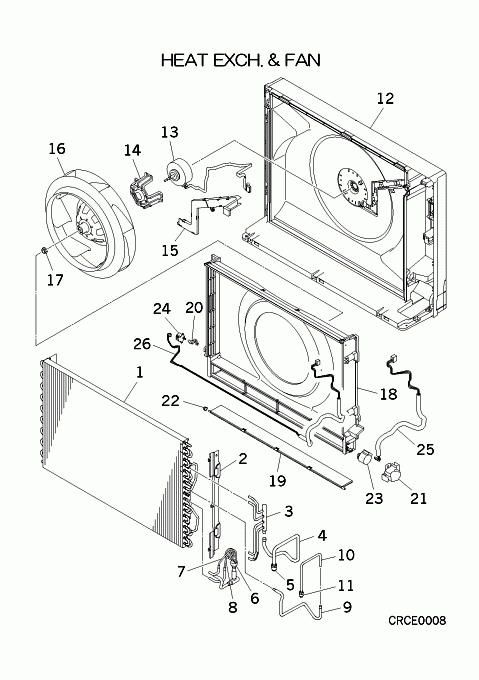

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RFB311A002 HEAT EXCH(AIR) Contact   Contact
  • [1-11] RFB301A002 HEAT EXCH ASSY(AIR Contact   Contact
  • [2] RFB116A003 BRACKET,EX(R) Contact   Contact
  • [3-5] RFB315D001 HEADER ASSY Contact   Contact
  • [4-5] RFB321A032 PIPE ASSY(GAS) Contact   Contact
  • [5] SSA323F088 UNION(SLD) In Stock Notes: LENGTH 2.6CM, FOR GAS
  • [6] RSA315A004B DISTRIBUTOR Contact   Contact
  • [6-8] RFB315A001 DISTRIBUTOR ASSY Contact   Contact
  • [7] RFB315B001 CAPILLARY Contact Notes: !D2.8XD4.0 L250, !D2.8XD4.0 L250   Contact
  • [8] RFB315B002 CAPILLARY Contact Notes: !D2.8XD4.0 L250, !D2.8XD4.0 L250   Contact
  • [9] RFB321A024 PIPE Contact   Contact
  • [10-11] RFB321A028 PIPE ASSY(LIQUID) Contact   Contact
  • [11] SSA323F088A UNION(SLD) In Stock Notes: FOR LIQ. / LENGTH 2.3CM, FOR LIQ. Show Image
  • [12] RFB111A001 BASE ASSY Contact   Contact
  • [13] SSA512T118 MOTOR, DC In Stock Notes: FOR FAN
  • [14] RFB116A004 BRACKET ASSY,MOTOR In Stock Show Image
  • [15] RFB129A001 COVER,HARNESS Contact   Contact
  • [16] SSA431J023 FAN TURBO In Stock
  • [17] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [18] RFB433A003A BELLMOUTH ASSY In Stock
  • [19] RFB434A001 DAMPER ASSY In Stock Substitute: RFB434A003
  • [20] RFB129A012 ARM,DAMPER In Stock Show Image
  • [21] RFB129A003 COVER,MOTOR(A) Contact   Contact
  • [22] RKW935C200 COLLAR In Stock Notes: ***SOLD INDIVIDUALLY***, 1pc ONLY
  • [23] SSA512T049 MOTOR,STEPPING In Stock Substitute: SSA512T158 Notes: FOR FLAP -UP AND DOWN / HORIZONTAL LOUVER MOTOR, FOR FLAP Show Image
  • [24] SSA512T096 STEPPING MOTOR In Stock Substitute: SSA512T049 Notes: FOR LOUVER(LEFT/RIGHT)
  • [25] RFB504A001B HARNESS ASSY In Stock Notes: FOR MOTOR,DAMPER, FOR MOTOR,DAMPER Show Image
  • [26] RFB504A001C HARNESS ASSY In Stock Notes: FOR MOTOR,DAMPER ARM, FOR MOTOR,DAMPER ARM Show Image
SKU: SRF25ZJX-S HEAT EXCH. AND FAN Category:
