SRC92ZL-S CONTROL AND PARTS SET

Name: SRC92ZL-S CONTROL AND PARTS SET
SKU: SRC92ZL-S CONTROL AND PARTS SET
Availability: InStock

SRC92ZL-S CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

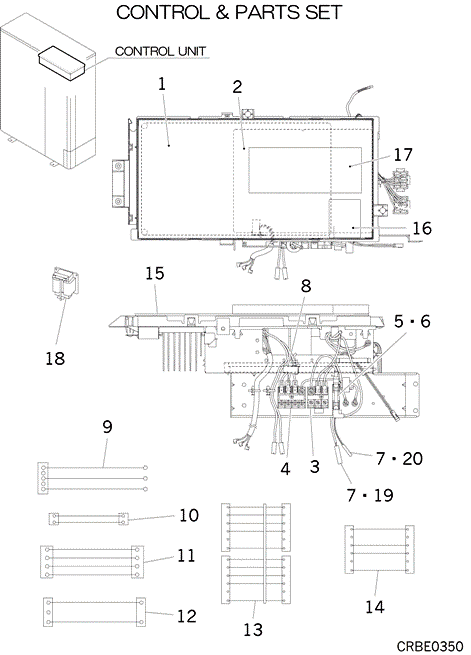

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT505A302FB

PWB ASSY(MAIN)

Notes: MAIN - ********DOES NOT CONTROL FAN MOTORS****************** Show Image

[1-17] Contact

RCR501A103

CONTROL UNIT

Contact

[2] In Stock

RCT505A303

PWB ASSY (SUB)

Notes: CONTROLS BOTH FAN MOTORS

[3] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[4] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[5] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[6] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[7] In Stock

SSA551A233C

SENSOR ASSY

Notes: TH1,2,3, TH1,2,3 - includes 3 sensors Show Image

[8] In Stock

SSA554D173

CORE,FERRITE

[9] In Stock

RCR504A040

WIRING ASSY

Notes: PWB2 CNA-TB2 1,TB2 2,TB2 3 Show Image

[10] In Stock

RPC504A917A

HARNESS ASSY

Notes: PWB1 CN20V -PWB2 CN20V, TWO BLACK CABLES WITH WHITE PLUGS Show Image

[11] In Stock

RCT504A001A

HARNESS ASSY

Notes: PWB2 CNMAIN-PWB1 CNSUB, CNMAIN-PWB1 - CNSUB-PWB2 Show Image

[12] In Stock

RCR504A036A

HARNESS ASSY

Notes: PWB2 CN20S-20S Show Image

[13] In Stock

RCR504A039A

HARNESS ASSY

Notes: PWB2 CNFAN1,PWB2 CNFAN2- FM01,FM02, EXTENSION/ADAPTER CABLE FOR FAN MOTORS Show Image

[14] In Stock

RCT504A012

HARNESS ASSY

Notes: PWB1 CNFAN-PWB2 CNFAN0, PWB1-PWB2 (FOR THE FAN MOTOR) CNFAN Show Image

[15-17] Contact

RCR142A103

LID ASSY,CONTROL

Contact

[16] Out of Stock

RSA011H031

LABEL,NOTICE

[17] Contact

RCR011G101

LABEL,WIRING

Contact

[18] In Stock

SSA554B113

REACTOR

Show Image

[19] In Stock

RKJ941F001

SPRING LEAF

Show Image

[20] In Stock

RKJ941F001

SPRING LEAF

Show Image

[21] Contact

RCR011F100B

LABEL,MODEL NAME

Contact
