SRC71HE-S PANEL AND FAN ASSY

SRC71HE-S PANEL AND FAN ASSY

Available Parts

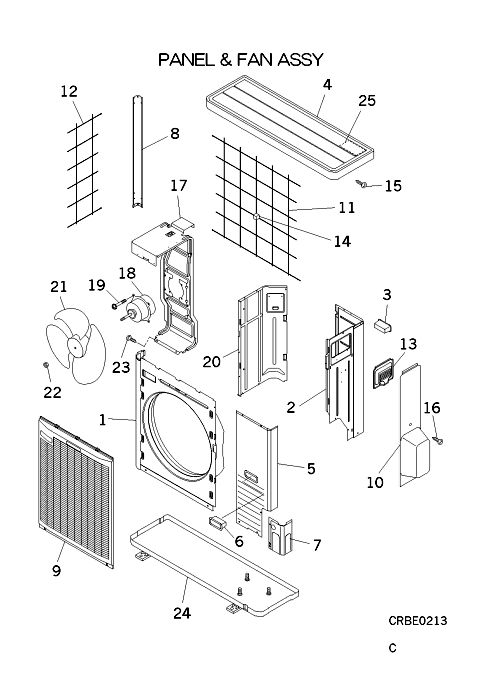

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCR122A001 PANEL ASSY, FRONT In Stock
  • [2] RCR125A002C PANEL ASSY,REAR In Stock
  • [3] RCR124A002A PANEL ASSY,TOP Contact   Contact
  • [4] RCR122A006B PANEL,SERVICE In Stock Substitute: RCR122A003A
  • [5] RCR132A001 COVER,FRONT In Stock Notes: SMALL, BOTTOM-RIGHT, FRONT COVER
  • [6] RCR115A002A SUPPORT,CORNER In Stock
  • [7] RCR435A001 GRILLE,AIR In Stock Notes: AIR OUTLET GRILLE / FAN GUARD
  • [8] RCR132A004 COVER ASSY In Stock Notes: PLASTIC
  • [9] RCR131A001 GUARD,FIN(A) In Stock
  • [10] RCR131A002 GUARD,FIN(B) In Stock
  • [11] SSA944B031A HANDLE In Stock Show Image
  • [12] RCR132A002 COVER,TERMINAL Out of Stock Show Image
  • [13] RCR941G001 CUSHION,RUBBER In Stock Notes: ! Show Image
  • [14] SSA913A034B SCREW In Stock Notes: 1PC ONLY, 4X8
  • [15] SSA913A034C SCREW In Stock Notes: 1PC ONLY, 4X12
  • [16] RCR116A001A BRACKET,MOTOR Contact   Contact
  • [17] SSA511T211 MOTOR,AC Contact   Contact
  • [18] SSA913A034C SCREW In Stock Notes: 1PC ONLY, 4X12
  • [19] RCR141A001A PLATE,BAFFLE Contact   Contact
  • [20] SSA431B247A FAN In Stock Notes: OUTDOOR FAN BLADE
  • [21] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: **1PC ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [22] W011D04X008 TAP SCREW In Stock Notes: 1PC ONLY, 4X8
  • [23] RCR111A001A BASE ASSY Contact   Contact
  • [24] RCR011G002 LABEL,WIRING Contact   Contact
