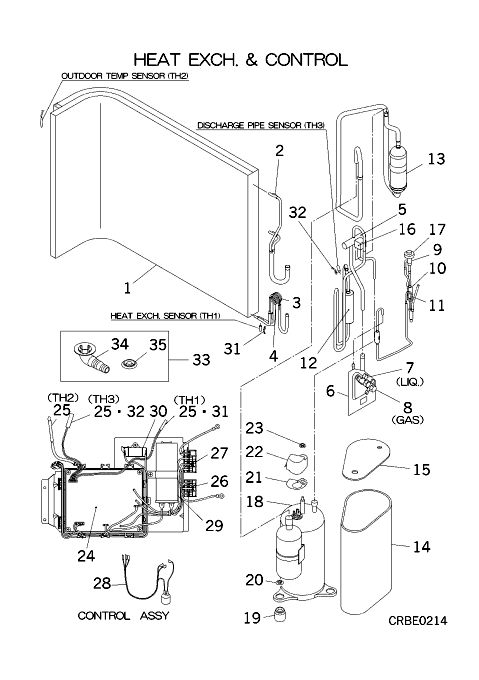

SRC71HE-S HEAT EXCH. AND CONTROL

SRC71HE-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
RCR301A001A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RCR321A046
PIPE ASSY
Contact
Notes: !
[3] Contact
RCR315B008
CAPILLARY
Contact
Notes: !D2.8XD4.0 L350
[3-4] Contact
RCR321A056
PIPE ASSY
Contact
Notes: !
[4] Contact
RCR315B009
CAPILLARY
Contact
Notes: !D2.8XD4.0 L500
[5] In Stock
SSA382C080
VALVE,S(4WAY)
Notes: 20S, 20S BODY Show Image
SSA382C080
[6] Contact
RCR116A003B
BRACKET(VALVE)
Contact
[7] In Stock
RCR381A003B
VALVE,SERVICE(1/4")
Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image
RCR381A003B
[8] In Stock
RCR381A004
VALVE,SERVICE(5/8)
Notes: GAS, 5/8" GAS (SUCTION)
[9] In Stock
SSA387F047
VALVE EXP
Notes: EEVH or SM, EEV - VALVE BODY Show Image
SSA387F047
[9-11] In Stock
RCR304A008
PIPING ASSY
Show Image
RCR304A008
[10] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[11] In Stock
RCP315B002
CAPILLARY,SUB
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image
RCP315B002
[12] Out of Stock
PCA325A007
PIPE SHELL
[13] In Stock
AHT351A001
ACCUMULATOR
Show Image
AHT351A001
[14] Contact
RCR154D002
INSULATION,COMP
Contact
[15] Contact
RCR154D003
INSULATION
Contact
[16] In Stock
RPC382F700B
COIL ASSY,S
Notes: FOR 20S Show Image
RPC382F700B
[17] In Stock
SSA382F210L
COIL,SOLENOID
Notes: FOR EEV, SOLENOID COIL FOR EEV (ELECTRONIC EXPANSION VALVE)
[18] Contact
RSA201A012
COMPRESSOR ASSY
Contact
Notes: 5JS270DAA01, ***COMPRESSORS CANNOT BE RETURNED***
[19] Out of Stock
SSA941C114A
CUSHION RUB
[20] In Stock
SSA914C033
NUT
Notes: 1pc
[21] In Stock
RSA932C004
GASKET
Show Image
RSA932C004
[22] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[23] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[24] Contact
RCR505A010
PWB ASSY
Contact
[25] Contact
SSA551A209A
SENSOR ASSY
Contact
Notes: TH1,TH2,TH3
[26] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[27] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[28] Contact
RCP504A500B
HARNESS ASSY
Contact
Notes: FOR COMP.
[29] Contact
SSA552A178A
CAPACITOR,RUNNING
Contact
Notes: CC 60MF 440VAC
[30] Contact
SSA552A836C
CAPACITOR,RUNNING
Contact
Notes: CFO 5.0MF 450VAC
[31] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THI-R Show Image
RKJ941F001
[32] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[33] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[34] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[35] In Stock
SSA947A089
GROMMET
Notes: D20.1, SSA422A024 ELBOW Show Image
SSA947A089
[36] Contact
RCR011F002
LABEL,MODEL NAME
Contact
SKU: SRC71HE-S HEAT EXCH. AND CONTROL Category:
