SRC60ZMXA-S/A HEAT EXCH. AND CONTROL

SRC60ZMXA-S/A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

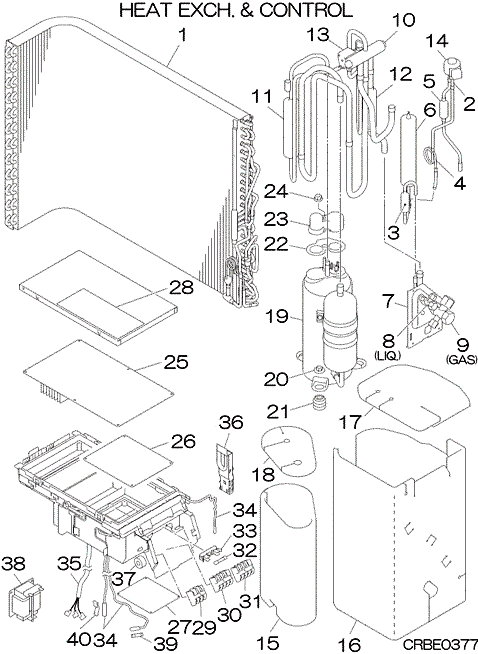

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock
RCT504A001
HARNESS ASSY
Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image
RCT504A001
[1] In Stock
RCT301A307
HEAT EXCH ASSY(AIR)
[2] In Stock
SSA387F052
VALVE,BODY(EXP)
Notes: EEV, EEV‚  - Expansion Valve Body - Body only Show Image
SSA387F052
[2-6] Contact
RCT304A302D
PIPING ASSY(EXPAN)
Contact
[3] In Stock
SSA357A005A
STRAINER
SSA357A005A
[4] In Stock
RCT315B002
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image
RCT315B002
[5] In Stock
RCN325A700
PIPE,SHELL
RCN325A700
[6] Contact
RCM325A300D
PIPE,SHELL
Contact
[7] In Stock
RCS116A004
BRACKET,VALVE
[8] In Stock
RCS381A004B
SERVICE VALVE
Notes: LIQ., (1/4") LIQ. Show Image
RCS381A004B
[9] In Stock
RCT381A002
SERVICE VALVE
Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image
RCT381A002
[10] In Stock
SSA382C092
VALVE,S(4WAY)
Notes: 20S Show Image
SSA382C092
[11] Contact
RCT304A307
PIPING ASSY(DISCH)
Contact
[12] Contact
RCT321A359A
PIPING ASSY(E)
Contact
[13] In Stock
RSA382F013L
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S‚ (REVERSING VALVE) Show Image
RSA382F013L
[14] In Stock
SSA382F210AY
SOLENOID COIL (EEV)
Notes: FOR EEV, SOLENOID COIL FOR EEV
[15] Contact
RCT154D300
INSULATION
Contact
[16] Contact
RCT154D001G
INSULATION
Contact
[17] Contact
RCT154D006C
INSULATION
Contact
[18] Contact
RCT154D302
INSULATION,COMP
Contact
[19] In Stock
AHT201C134CA
COMPRESSOR ASSY
Notes: RMT5113MCE2, ***COMPRESSORS CANNOT BE RETURNED***
[20] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[21] In Stock
SSA941C346A
CUSHION,RUBBER
Notes: 1pc, FOR COMPRESSOR Show Image
SSA941C346A
[22] In Stock
RSA932C004
GASKET
RSA932C004
[23] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[24] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[25] In Stock

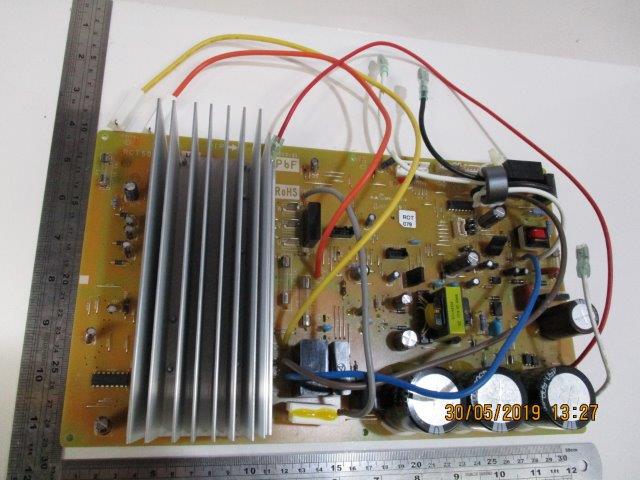

RCT505A302HG
PWB ASSY(MAIN)
Notes: PWB1 Show Image
RCT505A302HG
[26] In Stock
RCT505A004A
PWB ASSY(SUB)
RCT505A004A
[27] In Stock
RCT505A304
DRED
Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
RCT505A304
[28] Contact
RCT011G003
LABEL,WIRING
Contact
[29] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[30] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[31] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: T3 Show Image
SSA561B733
[32] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A
[33] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[34] In Stock
SSA551A216N
SENSOR ASSY
Notes: SENSOR ASSEMBLY - HAS 3 SENSORS ON 1 PLUG Show Image
SSA551A216N
[35] In Stock
RCV504A001
WIRING ASSY
Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image
RCV504A001
[36] In Stock
RCV129A001A
HOLDER,SENSOR
RCV129A001A
[37] In Stock
SSA554D173
CORE,FERRITE
[38] In Stock
SSA554B113
REACTOR
SSA554B113
[39] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[40] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[41] Contact
RWC011F014AZ
LABEL,MODEL NAME
Contact
