SRC60ZJX-S HEAT EXCH. AND CONTROL

Name: SRC60ZJX-S HEAT EXCH. AND CONTROL
SKU: SRC60ZJX-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC60ZJX-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

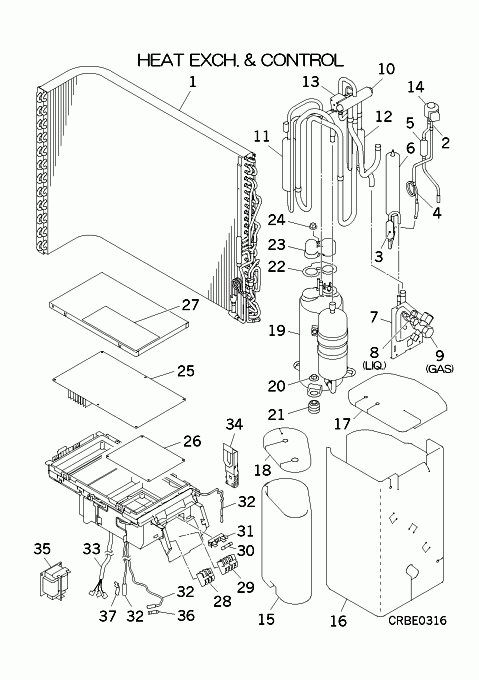

Check the parts position number [ ] matching with the drawing. Login to view prices.

[] In Stock

RCT504A001

HARNESS ASSY

Notes: CNSUB-CNMAIN, CNMAIN TO CNSUB - 4 black wires with white plug Show Image

[1] In Stock

RCT301A307

HEAT EXCH ASSY(AIR)

[2] In Stock

SSA387F052

VALVE,BODY(EXP)

Notes: EEV, EEV‚ - Expansion Valve Body - Body only Show Image

[2-6] Contact

RCT304A302D

PIPING ASSY(EXPAN)

Contact

[3] In Stock

SSA357A005A

STRAINER

Show Image

[4] In Stock

RCT315B002

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image

[5] In Stock

RCN325A700

PIPE,SHELL

Show Image

[6] Contact

RCM325A300D

PIPE,SHELL

Contact

[7] In Stock

RCS116A004

BRACKET,VALVE

[8] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[9] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[10] In Stock

SSA382C092

VALVE,S(4WAY)

Notes: 20S Show Image

[11] Contact

SSA325A001BD

MUFFLER

Contact

Substitute: SSA325A001BH

[12] Contact

SSA325A001CR

PIPE,SHELL

Contact

[13] In Stock

RSA382F013L

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S‚ (REVERSING VALVE) Show Image

[14] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[15] Contact

RCT154D300

INSULATION

Contact

[16] Contact

RCT154D001B

INSULATION

Contact

[17] Contact

RCT154D006A

INSULATION

Contact

[18] Contact

RCT154D302

INSULATION,COMP

Contact

[19] In Stock

AHT201C134CA

COMPRESSOR ASSY

Notes: RMT5113MCE2, ***COMPRESSORS CANNOT BE RETURNED***

[20] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[21] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[22] In Stock

RSA932C004

GASKET

Show Image

[23] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[24] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[25] In Stock

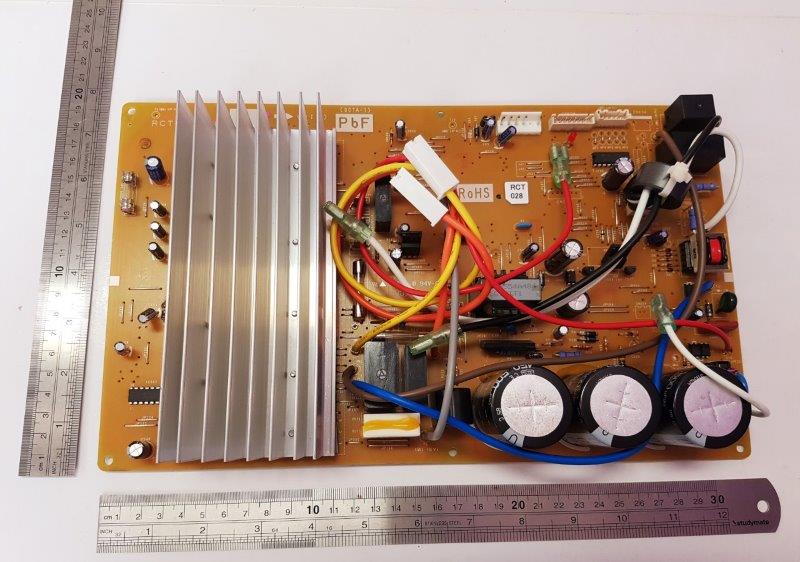

RCT505A005PA

PWB ASSY(MAIN)

Notes: ***CONFIRM SERVICE CODE BEFORE ORDERING ******LARGER BOARD IN UNIT

[26] In Stock

RCT505A004A

PWB ASSY(SUB)

Show Image

[27] Contact

RCT011G002AB

LABEL,WIRING

Contact

[28] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[29] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[30] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[31] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[32] In Stock

SSA551A216L

SENSOR ASSY

Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image

[33] In Stock

RCV504A001

WIRING ASSY

Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image

[34] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[35] In Stock

SSA554B113

REACTOR

Show Image

[36] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[37] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[38] Contact

RWC011F014AF

LABEL,MODEL NAME

Contact
