SRC56HAA HEAT EXCH. AND CONTROL

SRC56HAA HEAT EXCH. AND CONTROL

Available Parts

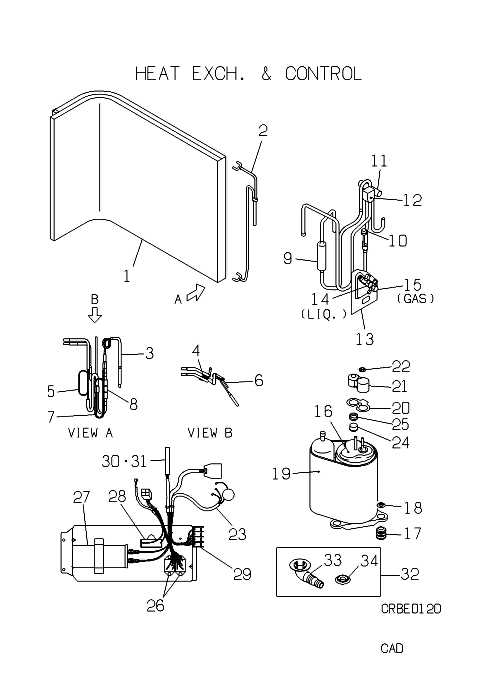

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RWC311A005 HEAT EX AIR Contact   Contact
  • [1-8] RWC301A015 HEAT EX AIR Contact   Contact
  • [2] RWC321A314 PIPING Contact   Contact

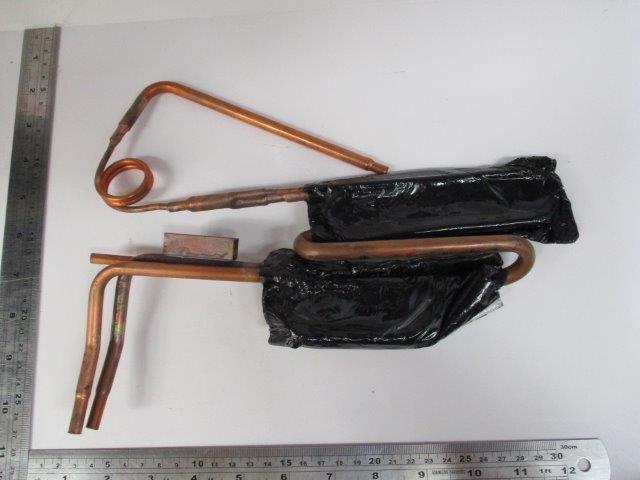

  • [3-8] RWC304A098 PIPING ASSY In Stock Show Image
  • [4] RWC315B085 CAPILLARY Contact Notes: !D1.5XD2.5 L500   Contact
  • [5] RWC315B085A CAPILLARY Contact Notes: !D1.5XD2.5 L500   Contact
  • [6] RWC315B086 CAPILLARY Contact Notes: !D2.6XD4.0 L300   Contact
  • [7] RWC315B090 CAPILLARY Contact Notes: !D2.0XD3.2 L600   Contact

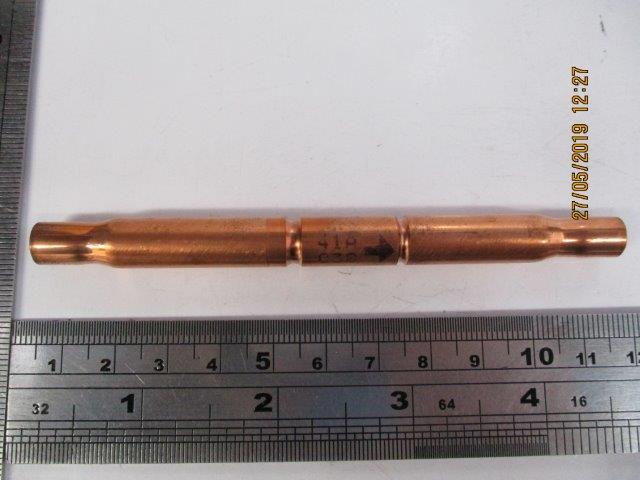

  • [8] SSA385A041A CHECK VALVE In Stock Show Image
  • [9] SSA325A001BD MUFFLER Contact Substitute: SSA325A001BH   Contact

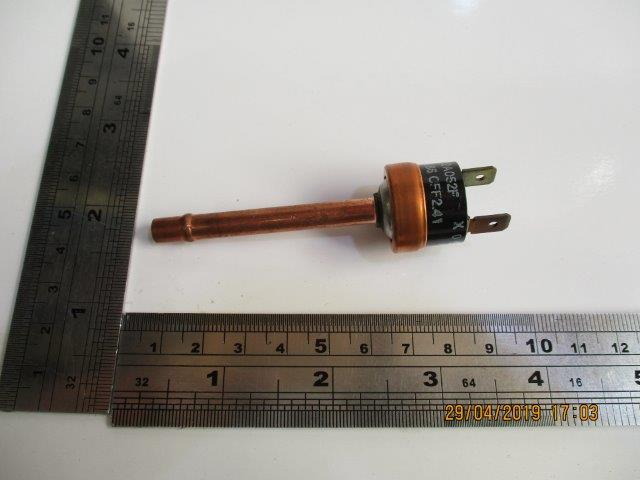

  • [10] SSA532A052F SWITCH,HP In Stock Substitute: OUT OF PRODUCTION Notes: 63H2 Show Image

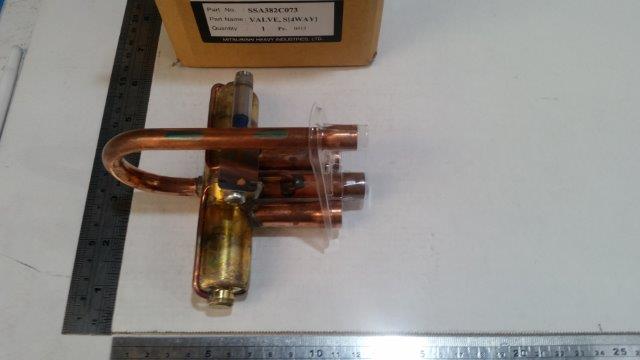

  • [11] SSA382C073 4 WAY VAL In Stock Show Image

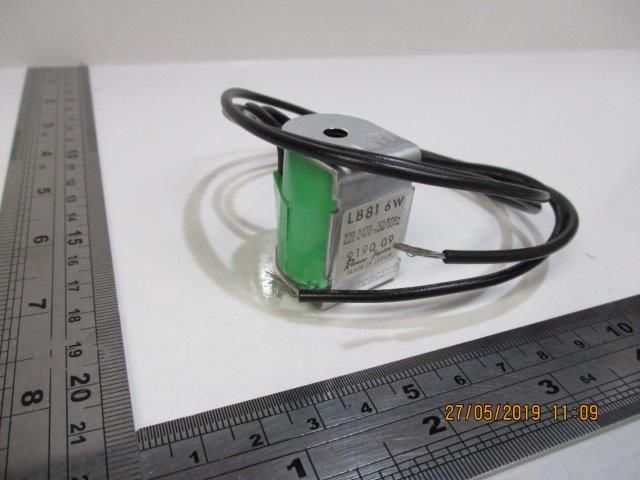

  • [12] SSA382F017C SOLENO COIL In Stock Notes: FOR 20S Show Image
  • [13] RCK116A002 B/K(VALVE) Contact   Contact
  • [14] RCK381A501 SERVICE V In Stock Notes: LIQ. Show Image
  • [16] AHT201D420NC COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM5526GNE4
  • [17] SSA941C114A CUSHION RUB Contact   Contact
  • [18] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [19] RWC154D115 INSULATION Contact   Contact
  • [20] AHL932C002 GASKET,COVER In Stock Show Image
  • [21] AHL947K001 COVER,TERMINAL Contact Substitute: OUT OF PRODUCTION   Contact
  • [22] SSA914C016 NUT In Stock Notes: 1PC Show Image

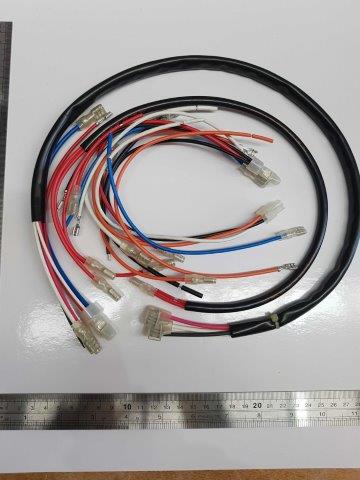

  • [23] RWC504A080A WIRING ASSY In Stock Notes: LENGTH 73.5CM Show Image
  • [24] ASA533B135 PROTECTOR In Stock Notes: 51C Show Image
  • [25] AHL941D003 SPRING(PROTECTOR) Contact   Contact
  • [26] SSA521F079 RELAY In Stock Notes: SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE, 52FL,52FM,52FH Show Image
  • [27] SSA552A823 CAPACITOR In Stock Notes: CC Show Image
  • [28] SSA552A491A CAPACITOR,R In Stock Notes: CFO Show Image
  • [29] SSA561B670 BLOCK,TERMI In Stock Notes: T2 Show Image
  • [30] SSA531D013A SWITCH THER In Stock Notes: 23DH, 23DH Show Image
  • [31] RCA941F001 SPRING LEAF Out of Stock Substitute: OUT OF PRODUCTION
  • [32] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [33] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [34] SSA947A089 GROMMET In Stock Substitute: RPC008A601 Notes: SSA422A024 ELBOW, D20.1 Show Image
  • [35] RWC011F005A LABEL,MODEL NAME Contact   Contact
SKU: SRC56HAA HEAT EXCH. AND CONTROL Category:
