SRC56CAA HEAT EXCH. AND CONTROL

SRC56CAA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

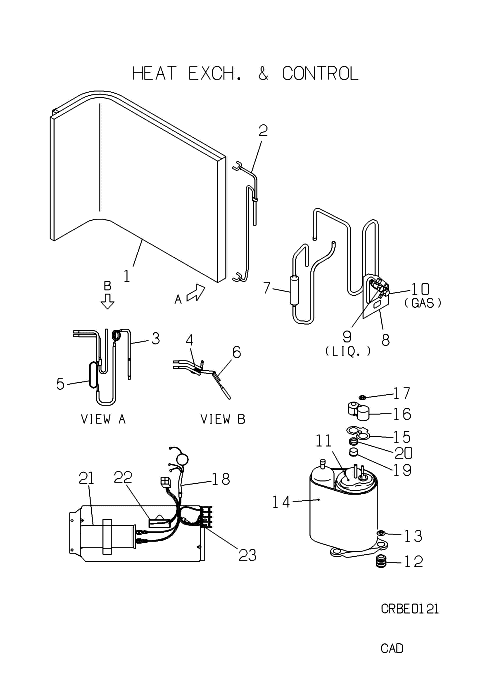

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RWC311A005
HEAT EX AIR
Contact
[1-6] Contact
RWC301A015A
HEAT EX AIR
Contact
[2] Contact
RWC321A314A
PIPING
Contact
[3-6] Contact
RWC304A098A
PIPING ASSY
Contact
[4] Contact
RWC315B085
CAPILLARY
Contact
Notes: !D1.5XD2.5 L500
[5] Contact
RWC315B085A
CAPILLARY
Contact
Notes: !D1.5XD2.5 L500
[6] Contact
RWC315B086
CAPILLARY
Contact
Notes: !D2.6XD4.0 L300
[7] Contact
SSA325A001BD
MUFFLER
Contact
Substitute: SSA325A001BH
[8] Contact
RCK116A002
B/K(VALVE)
Contact
[9] In Stock

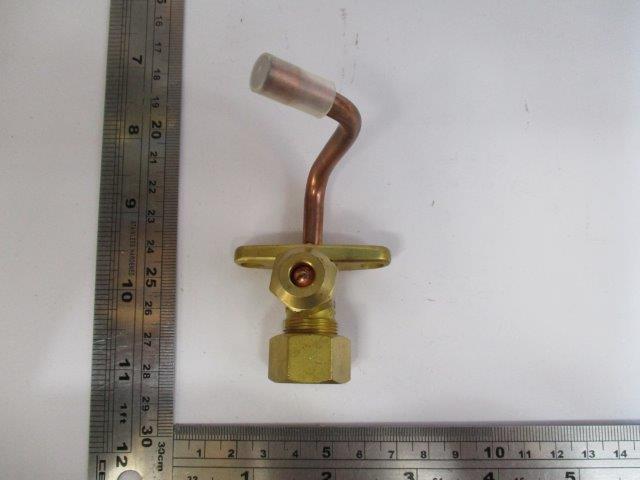

RCK381A501
SERVICE V
Notes: LIQ. Show Image
RCK381A501
[10] In Stock

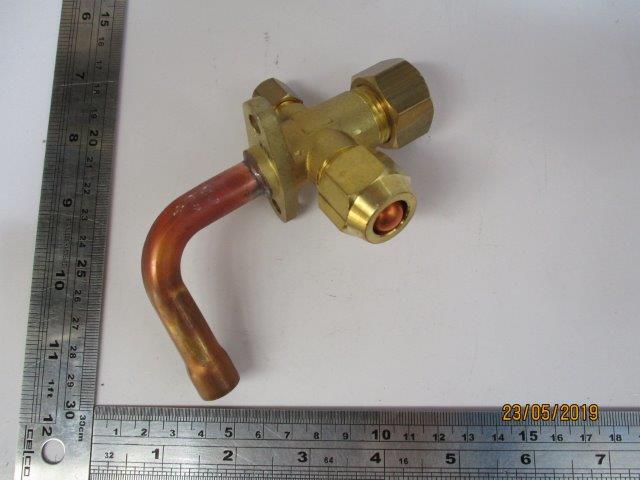

RWC381A012
VALVE,SERVS
Notes: GAS Show Image
RWC381A012
[11] Out of Stock
AHT201D420NC
COMPRESSOR
Substitute: OUT OF PRODUCTION Notes: RM5526GNE4, ***COMPRESSORS CANNOT BE RETURNED***
[12] Out of Stock
SSA941C114A
CUSHION RUB
[13] In Stock
SSA914C033
NUT
Notes: 1pc
[14] Contact
RWC154D115
INSULATION
Contact
[15] In Stock
AHL932C002
GASKET,COVER
Show Image
AHL932C002
[16] Out of Stock
AHL947K001
COVER,TERMINAL
Substitute: OUT OF PRODUCTION
[17] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[18] Contact
RWC504A077A
WIRING ASSY
Contact
Notes: FOR COMP.
[19] In Stock
ASA533B135
PROTECTOR
Notes: 51C Show Image
ASA533B135
[20] Out of Stock
AHL941D003
SPRING(PROTECTOR)
[21] Out of Stock

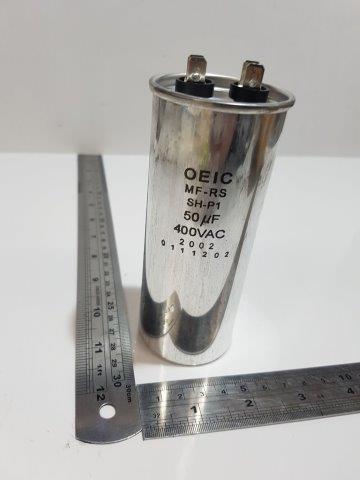

SSA552A823
CAPACITOR
Notes: CC Show Image
SSA552A823
[22] In Stock

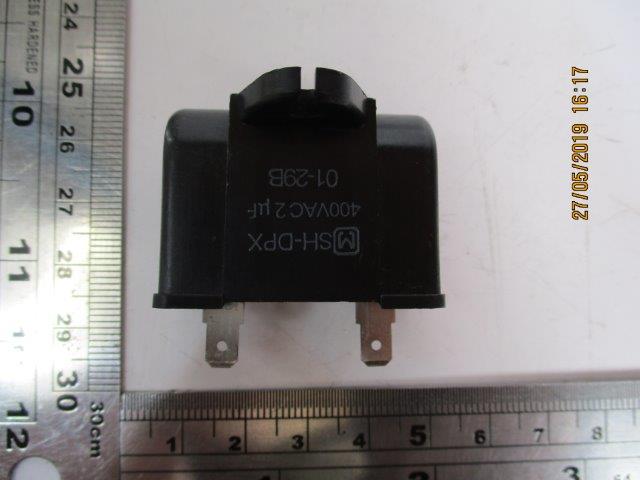

SSA552A491A
CAPACITOR,R
Notes: CFO Show Image
SSA552A491A
[23] In Stock
SSA561B670
BLOCK,TERMI
Notes: T2 Show Image
SSA561B670
[24] Contact
RWC011F005C
LABEL,MODEL NAME
Contact
SKU: SRC56CAA HEAT EXCH. AND CONTROL Category:
