SRC568HENF-A HEAT EXCH. AND CONTROL

SRC568HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

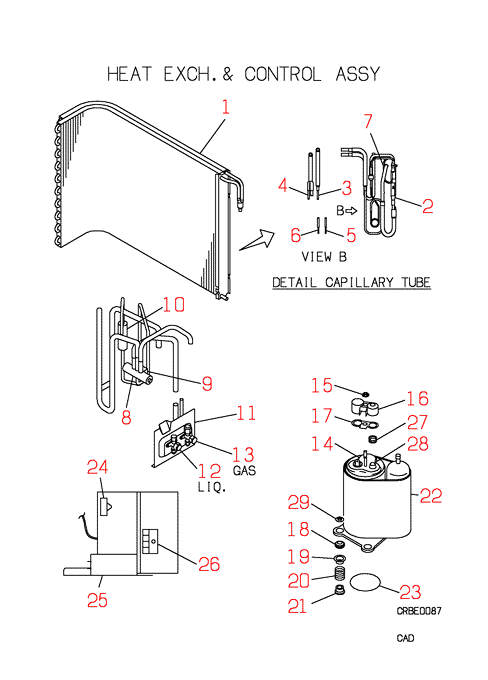

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCC311A007D
HEAT,EX,AIR
Contact
[1-7] Contact
RCC301A015A
HEAT EX,AIR
Contact
[2] In Stock
SSA385A015
VALVE CHECK
Show Image
SSA385A015
[2-7] Out of Stock
RCC304A063A
PIPING
[3] Contact
RCC315B058
CAPILLARY
Contact
[4] Contact
RCC315B059
CAPILLARY
Contact
[5] Contact
RCC315B065
CAPILLARY
Contact
[6] Contact
RCC315B065A
CAPILLARY
Contact
[7] Contact
RCC315B066
CAPILLARY
Contact
Notes: ! D2.0XD3.2 L300

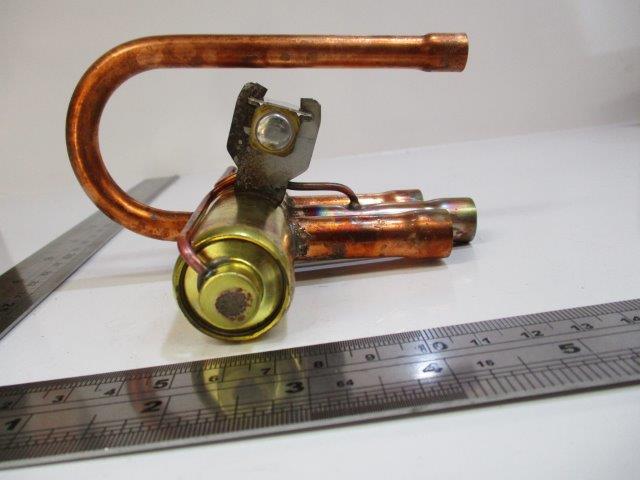

[8] In Stock
SSA382C014
VALVE 4WAY
Show Image
SSA382C014
[9] In Stock
SSA382F008F
COIL S 150O
Notes: 20S Show Image
SSA382F008F
[10] Contact
SSA325A001AY
MUFFLER
Contact
[11] Contact
RCC116A003N
BRAKET VALV
Contact

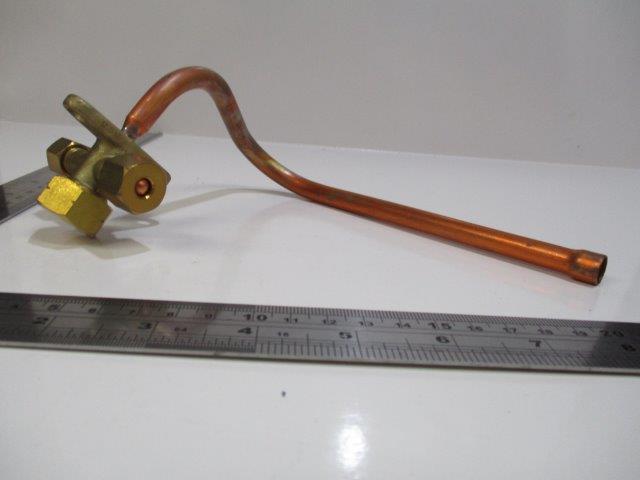

[12] In Stock
RCC381A010
VALVE SERVI
Notes: LIQ. Show Image
RCC381A010
[13] Out of Stock
RCC381A009
VALVE SERVI
Notes: GAS
[14] Out of Stock
AHT201D420NC
COMPRESSOR
Substitute: OUT OF PRODUCTION Notes: RM5526GNE4, ***COMPRESSORS CANNOT BE RETURNED***
[15] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[16] Out of Stock
AHL947K001
COVER,TERMINAL
Substitute: OUT OF PRODUCTION
[17] In Stock
AHL932C002
GASKET,COVER
Show Image
AHL932C002
[18] Contact
SSA941C133
CUSHION RUB
Contact
[19] Contact
SSA935C010
COLLER
Contact
Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[20] Contact
AHA941D002A
SPRING(MOUNT)
Contact
[21] Contact
SSA941C012
CUSHION
Contact
Substitute: RM80168
[22] Contact
RCC151D010A
INSULA,COMP
Contact
[23] Contact
RCA154A001
INSULATION
Contact

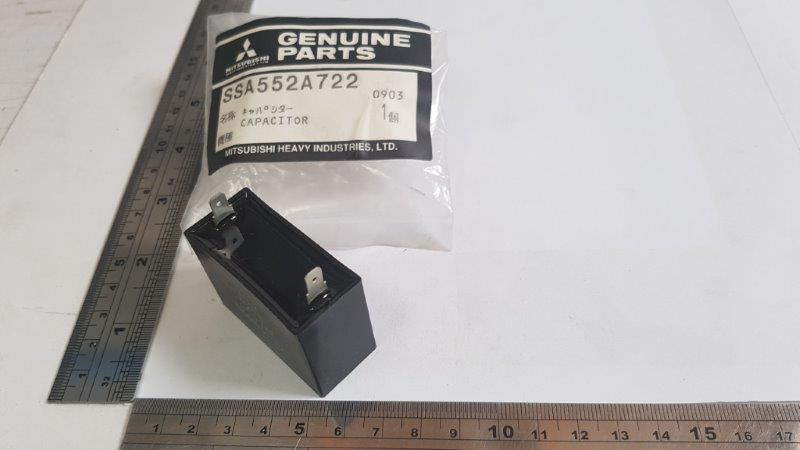

[24] In Stock
SSA552A722
CAPACITOR
Notes: CFO, CAPACITOR FOR FAN MOTOR - 4MF Show Image
SSA552A722
[25] In Stock
SSA552A128
CAPACITOR
Notes: CC 50MF 370V Show Image
SSA552A128
[26] In Stock
SSA561B670
BLOCK,TERMI
Notes: T2 Show Image
SSA561B670
[27] Out of Stock
AHL941D003
SPRING(PROTECTOR)

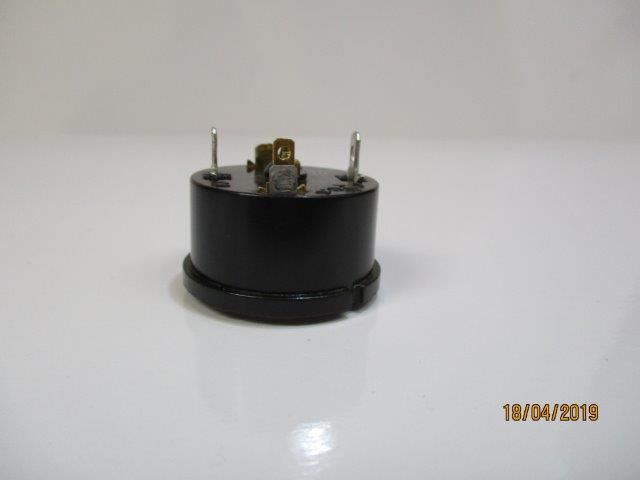

[28] In Stock
ASA533B135
PROTECTOR
Notes: 51C Show Image
ASA533B135
[29] In Stock
SSA914C033
NUT
Notes: 1pc
SKU: SRC568HENF-A HEAT EXCH. AND CONTROL Category:
