SRC50ZDA-S HEAT EXCH. AND CONTROL

Name: SRC50ZDA-S HEAT EXCH. AND CONTROL
SKU: SRC50ZDA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC50ZDA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

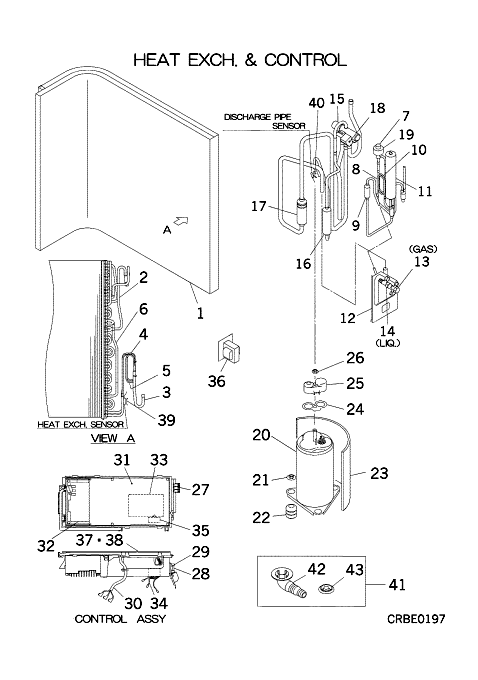

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-7] In Stock

RPC301A851

HEAT EXCH ASSY(AIR)

[2] Contact

RPC321A889

PIPING ASSY

Contact

Notes: !

[3-5] Contact

RPC321A888

PIPE ASSY

Contact

[4] Contact

RPC315B850

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[5] Contact

RPC315B851

CAPILLARY

Contact

Notes: !D2.6XD4.0 L500

[6] Contact

RPC321A890

PIPE ASSY

Contact

Notes: !

[7] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[7-11] In Stock

RWC304A117

PIPING ASSY(EXPAN)‚ (EXPAN)

Show Image

[8] Contact

RWC315B091

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] Contact

RWC315B091A

CAPILLARY,SUB

Contact

Notes: !D2.6XD4.0 L300

[11] Contact

RCM325A300D

PIPE,SHELL

Contact

[12] Contact

RCK116A002

B/K(VALVE)

Contact

[13] In Stock

RWC381A013

VALVE,SERVICE(1/2"

Notes: GAS

[14] In Stock

RPC381A852A

VALVE SERVI

Notes: LIQ. Show Image

[15] In Stock

SSA382C080

VALVE,S(4WAY)

Notes: 20S, 20S BODY Show Image

[16] Contact

SSA325A001CA

PIPE,SHELL

Contact

[17] Contact

SSA357A027

STRAINER

Contact

[18] In Stock

RSA382F010B

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR REVERSING VALVE (COIL ONLY) Show Image

[19] In Stock

SSA382F210C

COIL,SOLENOID

Notes: FOR EEV, FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM Show Image

[20] In Stock

RSA201A001

COMPRESSOR

Notes: 5CS102XFA, ***COMPRESSORS CANNOT BE RETURNED***

[21] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[22] In Stock

SSA941C241

CUSION

Show Image

[23] Contact

RCN154D500

INSULATION

Contact

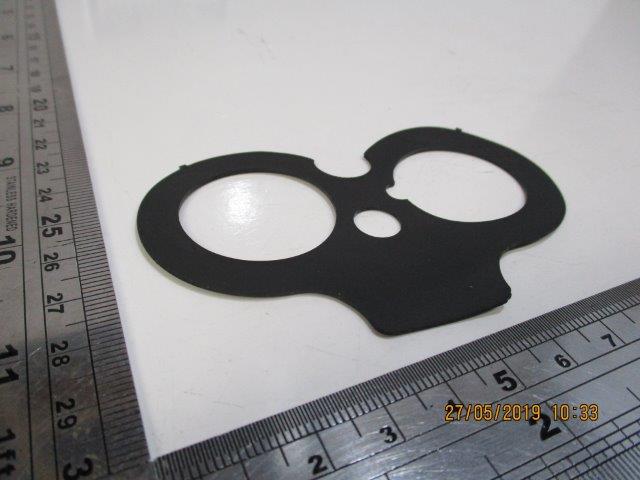

[24] In Stock

RSA932C001

GASKET,COVE

Show Image

[25] Contact

RSA947K002

COVER,TERMI

Contact

[26] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[27] In Stock

SSA561B675A

BLOCK,TERMI

Notes: TB Show Image

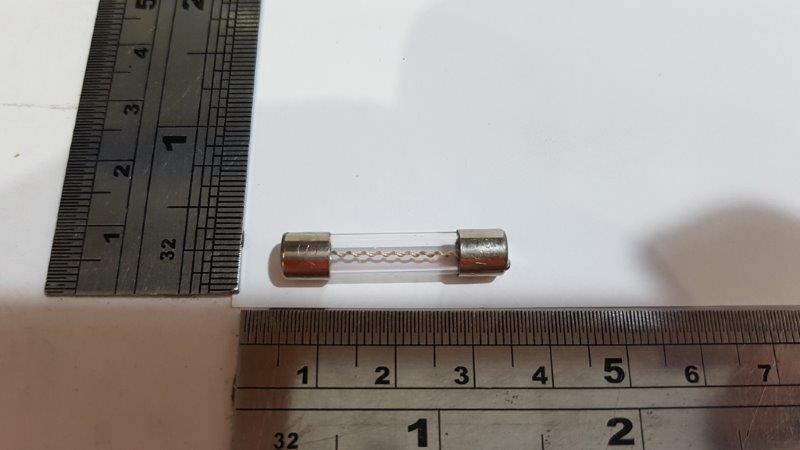

[28] In Stock

SSA564A106A

FUSE(CURREN

Notes: F 15A Show Image

[29] In Stock

SSA564B044

HOLDER, FUSE

Show Image

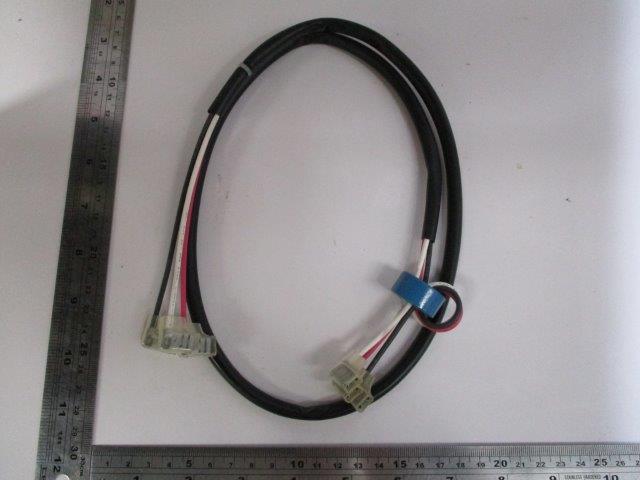

[30] In Stock

RPC504A862

WIRING ASSY

Notes: FOR COMPRESSOR Show Image

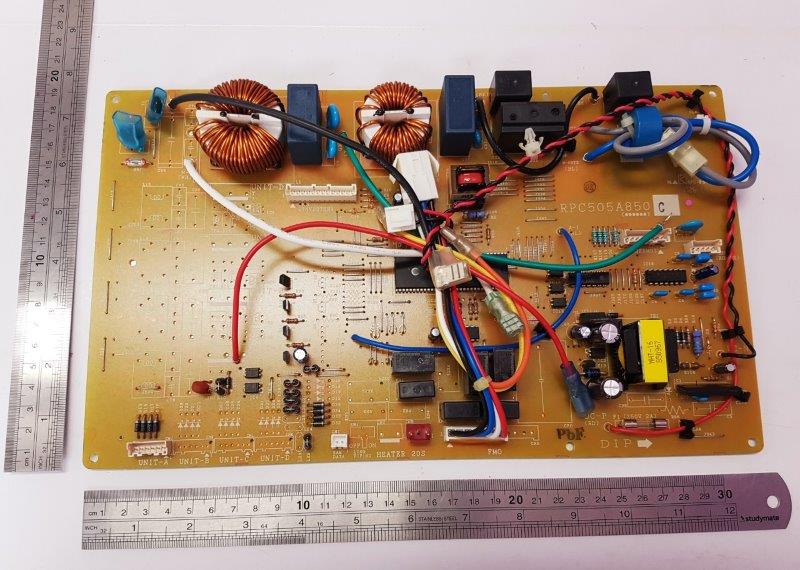

[31] In Stock

RPC505A850C

PWB MAIN

Notes: PCB1, PWB1 - MAIN -

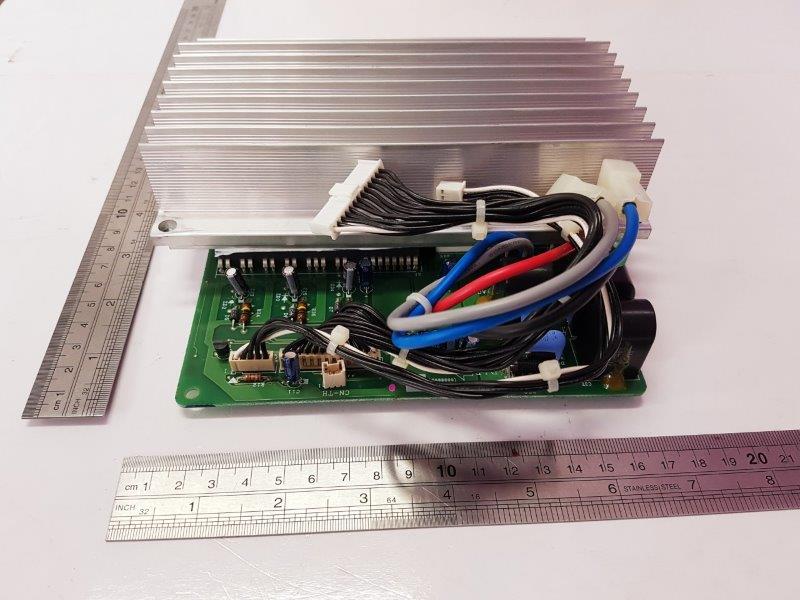

[32] In Stock

RPC505A851

PWB POWER

Notes: PCB2, INVERTER

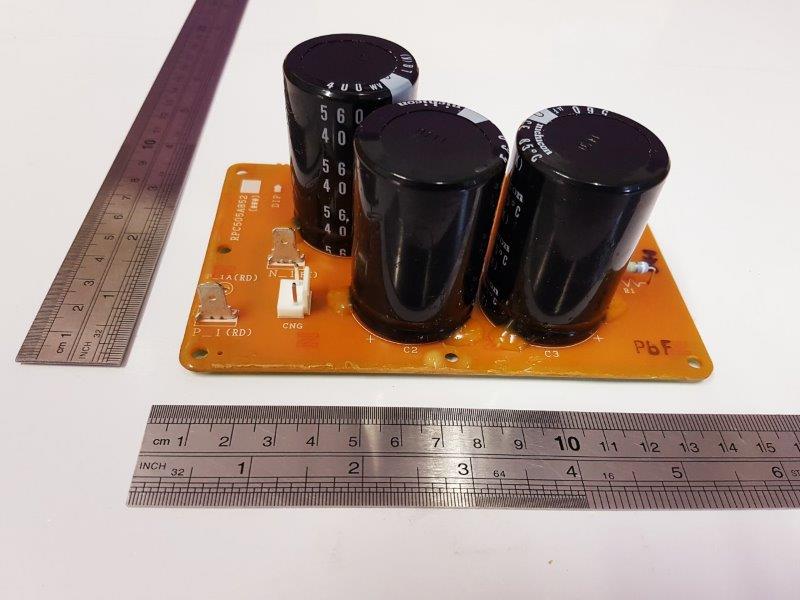

[33] In Stock

RPC505A852

PWB CAPACITOR

Notes: PCB3, PCB3 - CAPACITOR

[34] In Stock

SSA551A195C

SENSOR

Notes: HEAT EXCH., DISCHARGE PIPE, OUTDOOR TEMP - TH1, TH2, TH3

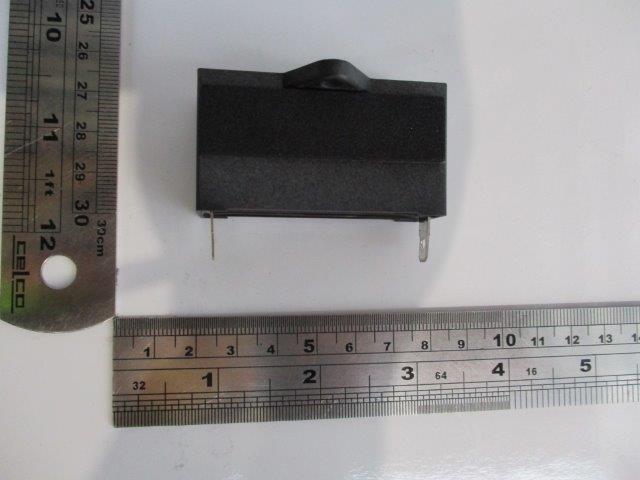

[35] In Stock

RPC552A001B

CAPACITOR,A

Notes: CFO 3MF 500V Show Image

[36] In Stock

SSA554B079

REACTOR

Show Image

[37-38] Contact

RPC142A856A

LID ASSY,CO

Contact

[38] Contact

RWC011G076

LABEL,WIRING

Contact

[39] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[40] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[41] Contact

RPC008A601B

PARTS,STANDARD(B)

Contact

Notes: !

[42] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[43] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[44] Contact

RSA011F398

LABEL,MODEL NAME

Contact
