SRC50CA HEAT EXCH. AND CONTROL

SRC50CA HEAT EXCH. AND CONTROL

Available Parts

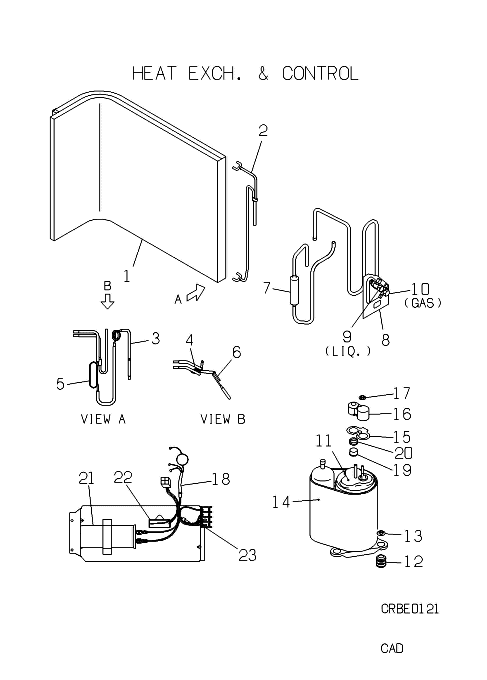

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RWC311A005 HEAT EX AIR Contact   Contact
  • [1-6] RWC301A015A HEAT EX AIR Contact   Contact
  • [2] RWC321A314A PIPING Contact   Contact
  • [3-6] RWC304A098A PIPING ASSY Contact   Contact
  • [4] RWC315B085 CAPILLARY Contact Notes: !D1.5XD2.5 L500   Contact
  • [5] RWC315B085A CAPILLARY Contact Notes: !D1.5XD2.5 L500   Contact
  • [6] RWC315B086 CAPILLARY Contact Notes: !D2.6XD4.0 L300   Contact
  • [7] SSA325A001BD MUFFLER Contact Substitute: SSA325A001BH   Contact
  • [8] RCK116A002 B/K(VALVE) Contact   Contact
  • [9] RCK381A501 SERVICE V In Stock Notes: LIQ. Show Image
  • [10] RWC381A012 VALVE,SERVS In Stock Notes: GAS Show Image
  • [11] AHT201A410NC RM5523GNE4- Out of Stock Substitute: AHT201D410NC Notes: ***COMPRESSORS CANNOT BE RETURNED*** **** SUB ALSO OUT OF PRODUCTION AHT201D410NC ****, RM5523GNE4
  • [12] SSA941C114A CUSHION RUB Contact   Contact
  • [13] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [14] RWC154D115 INSULATION Contact   Contact
  • [15] AHL932C002 GASKET,COVER In Stock Show Image
  • [16] AHL947K001 COVER,TERMINAL Contact Substitute: OUT OF PRODUCTION   Contact
  • [17] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [18] RWC504A077 WIRING ASSY Contact Notes: FOR COMP.   Contact
  • [19] ASA533B176 PROTECTOR In Stock Notes: 51C Show Image
  • [20] AHL941D003 SPRING(PROTECTOR) Contact   Contact
  • [21] SSA552A822 CAPACITOR In Stock Notes: CC Show Image
  • [22] SSA552A491A CAPACITOR,R In Stock Notes: CFO Show Image
  • [23] SSA561B670 BLOCK,TERMI In Stock Notes: T2 Show Image
  • [24] RWC011F005B LABEL,MODEL NAME Contact   Contact
SKU: SRC50CA HEAT EXCH. AND CONTROL Category:
