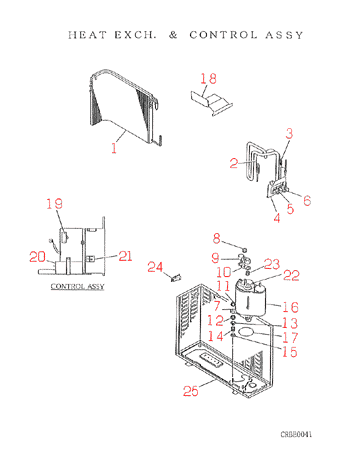

SRC503CENF HEAT EXCH. AND CONTROL

SRC503CENF HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCC301A011
HEAT EXCHANGER,AIR
Contact
[2] Contact
P210V08A000
CAPILLARY TUBE
Contact
Notes: ! D0.8XD2.0 L1000
[3] Contact
P210V25X800
CAPILLARY TUBE
Contact
Notes: ! D2.5XD4.0 L800
[4] Contact
RCC116A003N
BRAKET VALV
Contact
[5] In Stock
RCC381A010
VALVE SERVI
Notes: LIQ. Show Image
RCC381A010
[6] Out of Stock
RCC381A009
VALVE SERVI
Notes: GAS
[7] In Stock
AHT201A411NF
RM5523GNHE6
Notes: RM5523GNHE6, ***COMPRESSORS CANNOT BE RETURNED***
[8] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[9] Out of Stock
AHL947K001
COVER,TERMINAL
Substitute: OUT OF PRODUCTION
[10] In Stock
AHL932C002
GASKET,COVER
Show Image
AHL932C002
[11] In Stock
SSA914C033
NUT
Notes: 1pc
[12] Contact
SSA941C133
CUSHION RUB
Contact
[13] Contact
SSA935C010
COLLER
Contact
Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[14] Contact
AHA941D002A
SPRING(MOUNT)
Contact
[15] Contact
SSA941C012
CUSHION
Contact
Substitute: RM80168
[16] Contact
RCC151D009
INSULA,COMP
Contact
[17] Contact
RCA154A001
INSULATION
Contact
[18-23] Contact
RCC501A007Y
CONTROL ASSY
Contact
Notes: !
[19] In Stock
SSA552A862C
CAPACITOR,R
Notes: CFO 3MF 400V Show Image
SSA552A862C
[20] In Stock
SSA552A128
CAPACITOR
Notes: CC 50MF 370V Show Image
SSA552A128
[21] Contact
SSA561C001A
BLOCK,TERMINAL
Contact
[22] In Stock
ASA533B176
PROTECTOR
Notes: 51C Show Image
ASA533B176
[23] Out of Stock
AHL941D003
SPRING(PROTECTOR)
[24] Out of Stock
SSA944B008A
HANDLE
[25] Contact
RCC111A001G
BASE ASSY
Contact
