SRC502Z-L HEAT EXCH. AND CONTROL

SRC502Z-L HEAT EXCH. AND CONTROL

Available Parts

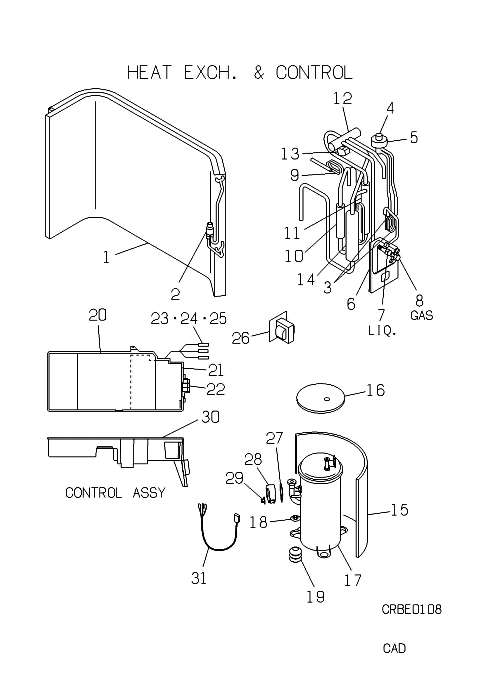

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCM311A001 HEAT EXCH Contact   Contact
  • [1-2] RCM301A001 HEAT EXCH In Stock
  • [2] RCM304A005 PIPING Contact   Contact
  • [3] RCM315B001 CAPLLARY Contact Substitute: P215V26A000   Contact
  • [3-4] RCM304A004A PIPING Contact   Contact
  • [4] SSA387F017D EXP V In Stock Notes: FEEDS INDOOR UNITS
  • [5] SSA382F202G SOLENOID Contact Notes: EEV   Contact
  • [6] RCM116A002 BRACKET Contact   Contact
  • [7] RCK381A200 SERVISE V Contact Notes: LIQ.   Contact
  • [8] RCM381A001B SERVICE VALVE In Stock Notes: GAS Show Image
  • [9] RCM315B003 CAPILLARY Contact Notes: !D0.8XD2.0 L500   Contact
  • [9-11] RCM321A025 PIPING ASSY Contact   Contact
  • [10] SSA325A001BH MUFFLER Contact   Contact
  • [11] SSA325A001BP PIPE SHELL Contact   Contact
  • [12] SSA382C073 4 WAY VAL In Stock Show Image
  • [13] RCD382F007W SOLENOID In Stock Show Image
  • [14] SSA351A110 ACCUMULATOR Contact   Contact
  • [15] RCK154D200D INSULATION Contact Notes: SIDE   Contact
  • [16] RCK154D005 INSULATION Contact Notes: UPPER   Contact
  • [17] AGR201A011C GR5490FD4 In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***
  • [18] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [19] SSA941C267 RUBBER Contact   Contact
  • [20] RWC006A002B PWB SET In Stock Substitute: OUT OF PRODUCTION Notes: MAIN / INVERTER (FOR COMP AND FAN MOTOR), PWB1 Show Image
  • [21] RPC505A601C PWB POWER In Stock Notes: POWER, PWB2 Show Image
  • [22] SSA561B678 TERMINAL B Contact Notes: T1   Contact
  • [23] SSA551A174H SENSER Out of Stock Substitute: OUT OF PRODUCTION Notes: 3 SENSORS
  • [24] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [25] RCJ941F500 SPRING Contact   Contact
  • [26] SSA554B050 INDUCTOR In Stock Show Image
  • [28] AGR947K002 TERMINAL C Contact   Contact
  • [29] SSA914B007AB NUT Contact Notes: 1PC   Contact
  • [30] RCM142A002A COVER Contact   Contact
  • [31] RPC504A607 HARNESS Contact   Contact
  • [32] RWC011G067 LABEL,WIRING Contact   Contact
  • [33] RSA011F301AJ LABEL,MODEL NAME Contact   Contact
SKU: SRC502Z-L HEAT EXCH. AND CONTROL Category:
