SRC501CENF-A HEAT EXCH. AND CONTROL

SRC501CENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

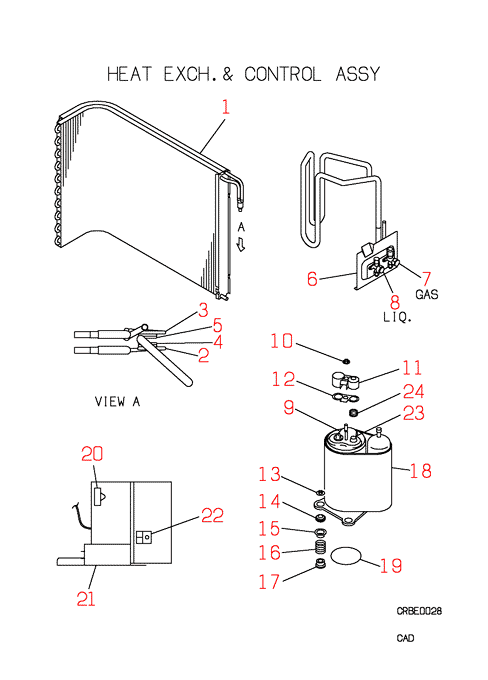

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCC311A007D
HEAT,EX,AIR
Contact
[1-5] Contact
RCC301A015B
HEAT EX,AIR
Contact
[2] Contact
RCC315B058
CAPILLARY
Contact
[2-5] Contact
RCC304A064
PIPING ASSY(CAPI)
Contact
[3] Contact
RCC315B059
CAPILLARY
Contact
[4] Contact
RCC315B060
CAPILLARY
Contact
[5] Contact
RCC315B061
CAPILLARY
Contact
[6] Contact
RCC116A003N
BRAKET VALV
Contact
[7] Out of Stock
RCC381A009
VALVE SERVI
Notes: GAS
[8] In Stock
RCC381A010
VALVE SERVI
Notes: LIQ. Show Image
RCC381A010
[9] Out of Stock
AHT201A410NC
RM5523GNE4-
Substitute: AHT201D410NC Notes: RM5523GNE4, ***COMPRESSORS CANNOT BE RETURNED*** **** SUB ALSO OUT OF PRODUCTION AHT201D410NC ****
[10] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[11] Out of Stock
AHL947K001
COVER,TERMINAL
Substitute: OUT OF PRODUCTION
[12] In Stock
AHL932C002
GASKET,COVER
Show Image
AHL932C002
[13] In Stock
SSA914C033
NUT
Notes: 1pc
[14] Contact
SSA941C133
CUSHION RUB
Contact
[15] Contact
SSA935C010
COLLER
Contact
Substitute: RM80170 Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[16] Contact
AHA941D002A
SPRING(MOUNT)
Contact
[17] Contact
SSA941C012
CUSHION
Contact
Substitute: RM80168
[18] Contact
RCC151D010A
INSULA,COMP
Contact
[19] Contact
RCA154A001
INSULATION
Contact
[20] In Stock
SSA552A862C
CAPACITOR,R
Notes: CFO 3MF 400V Show Image
SSA552A862C
[21] In Stock
SSA552A128
CAPACITOR
Notes: CC 50MF 370V Show Image
SSA552A128
[22] Contact
SSA561B669
BLOCK,TERMI
Contact
[23] In Stock
ASA533B176
PROTECTOR
Notes: 51C Show Image
ASA533B176
[24] Out of Stock
AHL941D003
SPRING(PROTECTOR)
[25] Contact
RSA011F301V
LABEL,MODEL NAME
Contact
