SRC40HCA-S HEAT EXCH. AND CONTROL

SRC40HCA-S HEAT EXCH. AND CONTROL

Available Parts

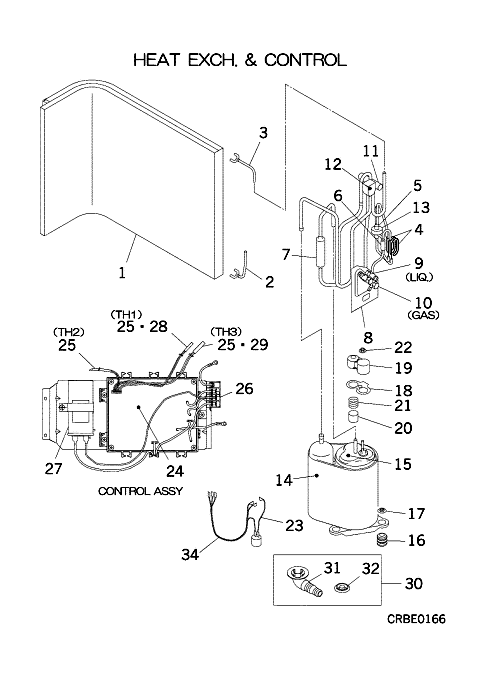

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-3] RWC301A022 HEAT EXCH A Contact   Contact
  • [2] RWC321A373 PIPE ASSY Contact   Contact
  • [3] RWC321A374 PIPE ASSY Contact   Contact
  • [4] RWC315B091 CAPILLARY,SUB Contact Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300   Contact

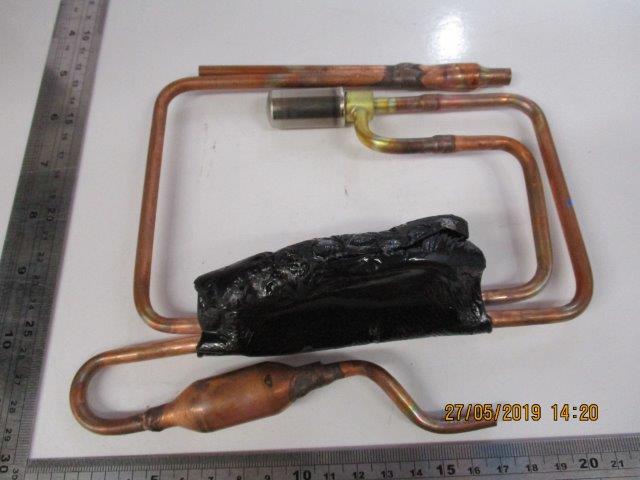

  • [4-6] RWC304A113 PIPING ASSY In Stock Show Image
  • [5] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [6] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [7] RCD325A700 PIPE,SHELL Contact   Contact
  • [8] RCK116A002 B/K(VALVE) Contact   Contact
  • [9] RCP381A001 SERVICE V In Stock Substitute: RCP381A001A Notes: LIQ. Show Image
  • [10] RWC381A013 VALVE,SERVICE(1/2 In Stock Notes: GAS, GAS
  • [11] SSA382C073 4 WAY VAL In Stock Show Image

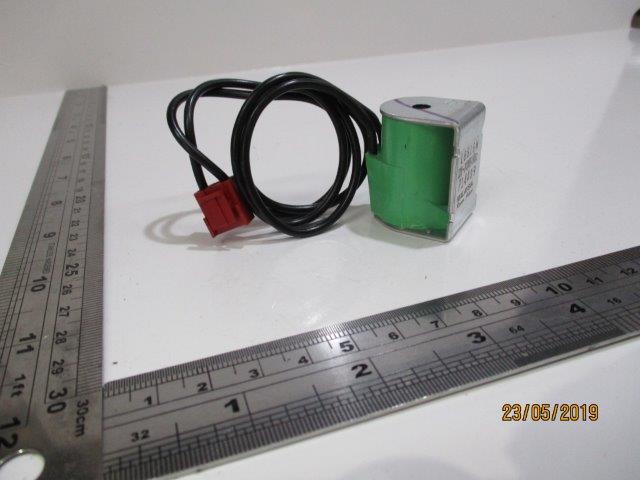

  • [12] RCD382F007AB COIL ASSY,S In Stock Notes: FOR 20S Show Image
  • [13] SSA382F210 SOLENOID,EX In Stock Substitute: SSA382F228 Show Image
  • [14] RWC154D125 INSULATION Contact   Contact
  • [15] RSA201A006 COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, 5KS150DBB
  • [16] SSA941C114A CUSHION RUB Contact   Contact
  • [17] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [18] RSA932C002 GASKET,COVE Contact   Contact
  • [19] RSA947K003 COVER,TERMI Contact   Contact

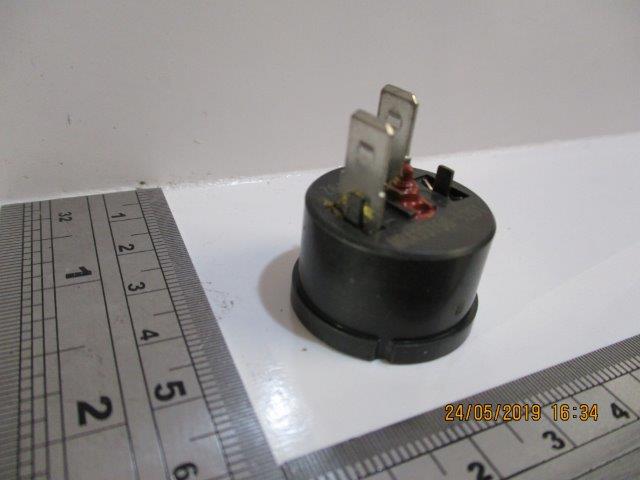

  • [20] RSA533B003 PROTECTOR,M In Stock Show Image
  • [21] AHA941D003 SPRING (PROTECTOR) In Stock Substitute: RM80088 Show Image
  • [22] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [23] RCP504A504A HARNESS ASSY In Stock Notes: LENGTH 13CM, FOR COMP.
  • [24] RCP505A500A PWB ASSY In Stock
  • [25] SSA551A185F SENS0R In Stock Notes: TH1,TH2,TH3 - SENSOR ASSEMBLY, TH1,TH2,TH3
  • [26] SSA561B702 BLOCK,TERMI In Stock Notes: TB1 Show Image

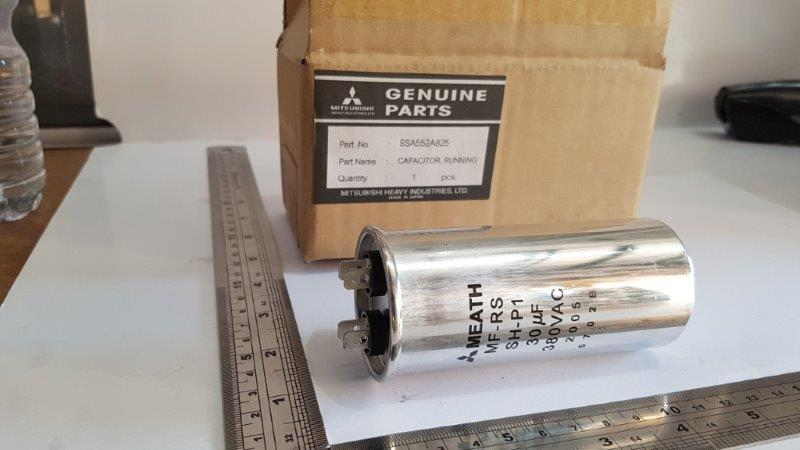

  • [27] SSA552A825 CAPACITOR In Stock Notes: CC Show Image
  • [28] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [29] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [30] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [31] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [32] SSA947A089 GROMMET In Stock Substitute: RPC008A601 Notes: SSA422A024 ELBOW, D20.1 Show Image
  • [33] RWC011F006D LABEL,MODEL NAME Contact   Contact
  • [34] RCP504A500A HARNESS In Stock Notes: LENGTH 65.5CM, FOR COMP.
SKU: SRC40HCA-S HEAT EXCH. AND CONTROL Category:
