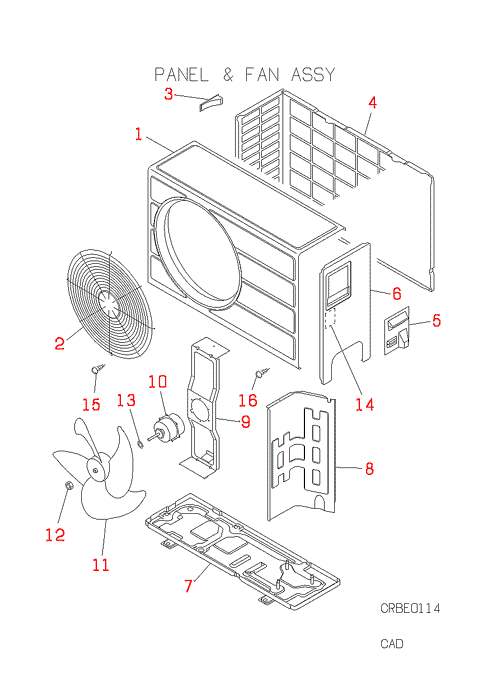

SRC408HENF-L3 PANEL AND FAN ASSY

SRC408HENF-L3 PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock
RCG122A001MK
PANEL,FRONT
[2] Out of Stock
RWC131A003
GUARD,FAN
[3] Out of Stock
SSA944B008A
HANDLE
[4] Contact
RCG125A001MM
PANEL REAR
Contact
Substitute: RCG125A001M
[5] Out of Stock
RCG132A001A
LID CONTROL
Show Image
RCG132A001A
[6] Out of Stock
RCG123A002MA
PANEL SIDE
Substitute: RCG123A002
[7] Contact
RCG111A001MA
BASE
Contact
[8] Contact
RCG141A007A
PLATE,BAFFL
Contact
Substitute: RCG141A007
[9] Out of Stock
RCG116A002MD
BRACKET,MOT
Substitute: RCG116A002MC
[10] Out of Stock
SSA511A453AB
MOTOR
Substitute: SSA511A453AD
[11] In Stock
SSA431B068MA
PROPELLER
[12] In Stock
SSA914B006D
NUT,TH
Notes: 1pc Show Image
SSA914B006D
[13] Out of Stock
W200H08
WASHR PLAIN
Notes: 1pc ONLY
[14] Contact
RWC011G043D
LABEL,WIRING
Contact
[15] In Stock
SSA913D006A
SCREW 4X12
Notes: M4x12, 1pc ONLY
[16] Contact
SSA913D011
SCREW
Contact
Notes: 4X8, 1pc ONLY
SKU: SRC408HENF-L3 PANEL AND FAN ASSY Category:
