SRC408HENF-L3 HEAT EXCH. AND CONTROL

SRC408HENF-L3 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

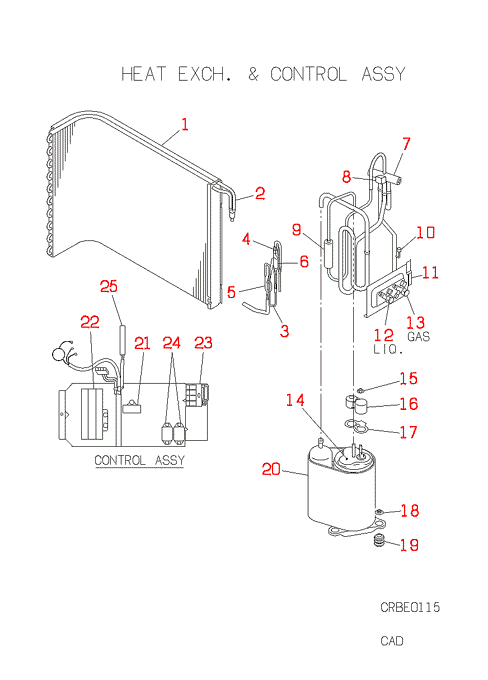

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCG311A005
HEAT,EX,AIR
Contact
[2] Contact
RCG321A184
PIPING ASSY
Contact
[3] Contact
RCG315B061
CAPI 1000L
Contact
Substitute: P210V26A000
[3-6] Contact
RCG304A076L
PIPING ASSY
Contact
[4] Contact
RCG315B062D
CAPILLARY
Contact
Notes: !D1.5XD2.5 L350
[5] Contact
RCG315B060D
CAPILLARY
Contact
Notes: !D1.5XD2.5 L230
[6] In Stock
SSA385A015
VALVE CHECK
Show Image
SSA385A015
[7] Out of Stock
SSA382C073
4 WAY VAL
Substitute: OUT OF PRODUCTION Show Image
SSA382C073
[8] In Stock
SSA382F414
COIL SOLENO
Notes: SV, 240V Show Image
SSA382F414
[9] Contact
RCD325A700
PIPE,SHELL
Contact

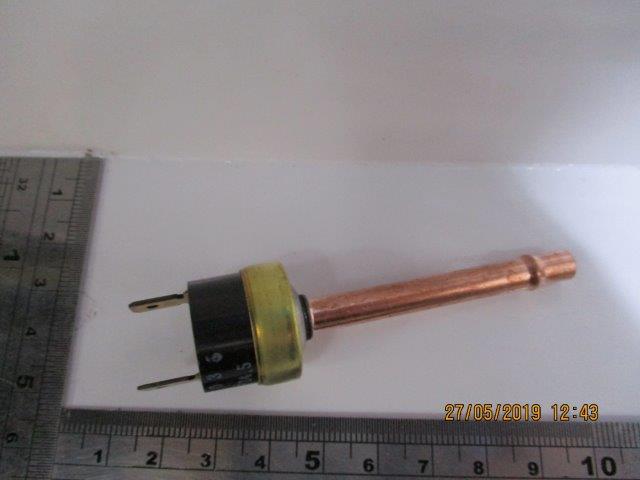

[10] In Stock
SSA532A052A
SWITCH HP
Notes: 63H Show Image
SSA532A052A
[11] Contact
RCG116A003MG
BRACKET,VAL
Contact
[12] Contact
RCG381A700A
SERVICE VAL
Contact
Substitute: RYC381A007A Notes: LIQ.
[13] In Stock
RCG381A007A
VELVE SERVI
Notes: GAS, 1/2" GAS (SUCTION) Show Image
RCG381A007A
[14] Contact
RWC201A008
COMPRESSOR
Contact
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[15] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[16] Contact
RWC947K001
COVER
Contact
[17] Contact
RWC932C001
GASKET
Contact
[18] In Stock
SSA914C033
NUT
Notes: 1pc
[19] Contact
RWC941C502
CUSHION,RUBBER
Contact
[20] Contact
RWC151C001
INSULATION ASSY,CO
Contact
[21] In Stock
SSA552A153
CAPACITOR,R
Notes: 1.6MF 460VAC Show Image
SSA552A153
[22] Contact
SSA552A447M
CAPACITOR
Contact
Notes: CC
[23] In Stock
SSA561B670
BLOCK,TERMI
Notes: T2 Show Image
SSA561B670
[24] In Stock
SSA521F079
RELAY
Notes: 52FL,52FM,52FH, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image
SSA521F079
[25] In Stock
SSA531D013A
SWITCH THER
Notes: 23DH Show Image
SSA531D013A
[26] Contact
RSA011F282AN
LABEL,MODEL NAME
Contact
SKU: SRC408HENF-L3 HEAT EXCH. AND CONTROL Category:
