SRC408HENF-A2 HEAT EXCH. AND CONTROL

SRC408HENF-A2 HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

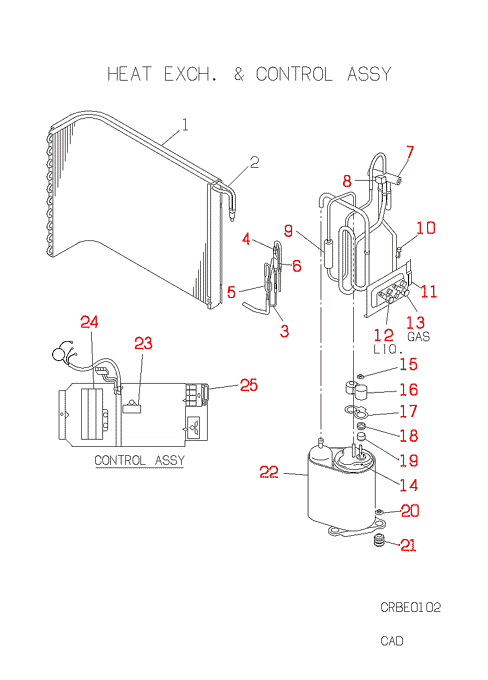

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCG311A005
HEAT,EX,AIR
Contact
[1-5] Contact
RCG301A013R
HEAT,EX,AIR
Contact
[2] Contact
RCG321A184
PIPING ASSY
Contact
[3] Contact
RCG315B061
CAPI 1000L
Contact
Substitute: P210V26A000
[3-5] Contact
RCG304A076H
PIPING ASSY
Contact
[4] In Stock
P210V15A500
CAPILLARY
Show Image
P210V15A500
[5] Out of Stock
RCG315B060B
CAPILLARY
Substitute: P210V15A000
[6] In Stock
SSA385A015
VALVE CHECK
Show Image
SSA385A015
[7] In Stock
SSA382C034
VALVE 4WAY
Notes: REVERSING VALVE (4WAY) Show Image
SSA382C034
[8] In Stock
SSA382F414
COIL SOLENO
Notes: SV, 240V Show Image
SSA382F414
[9] Contact
RCD325A700
PIPE,SHELL
Contact
[10] In Stock
SSA532A052A
SWITCH HP
Notes: 63H Show Image
SSA532A052A
[11] Contact
RCG116A003MG
BRACKET,VAL
Contact
[12] Contact
RCG381A700A
SERVICE VAL
Contact
Substitute: RYC381A007A Notes: LIQ.
[13] In Stock
RCG381A007A
VELVE SERVI
Notes: GAS, 1/2" GAS (SUCTION) Show Image
RCG381A007A
[14] In Stock
AHT201A340NC
RM5517GNE4
Notes: RM5517GNE4 1PHASE 22, ***COMPRESSORS CANNOT BE RETURNED***
[15] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[16] In Stock
AHA947K002
COVER
[17] In Stock
AHA932C002
GASKET
[18] In Stock
AHA941D003
SPRING (PROTECTOR)
Show Image
AHA941D003

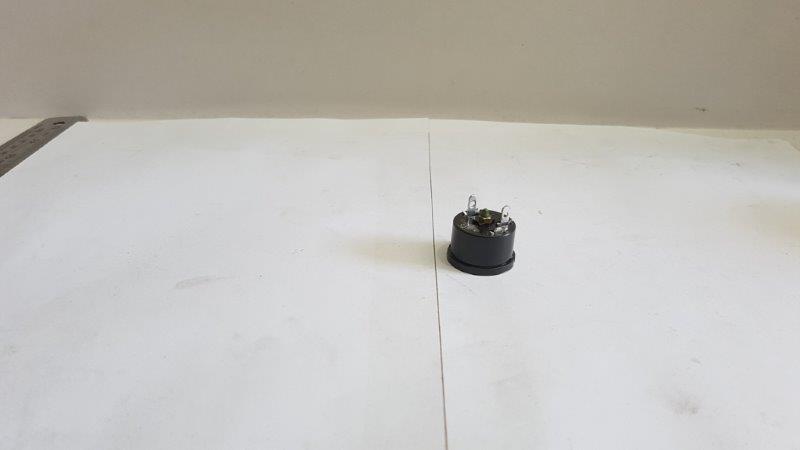

[19] In Stock
ASA533B092
PROTECTOR
Notes: 51C Show Image
ASA533B092
[20] In Stock
SSA914C033
NUT
Notes: 1pc
[21] Out of Stock
SSA941C239
R CUSSION
Substitute: OUT OF PRODUCTION
[22] Contact
RCG151C021A
INSULATION
Contact
[23] In Stock
SSA552A153
CAPACITOR,R
Notes: 1.6MF 460VAC Show Image
SSA552A153

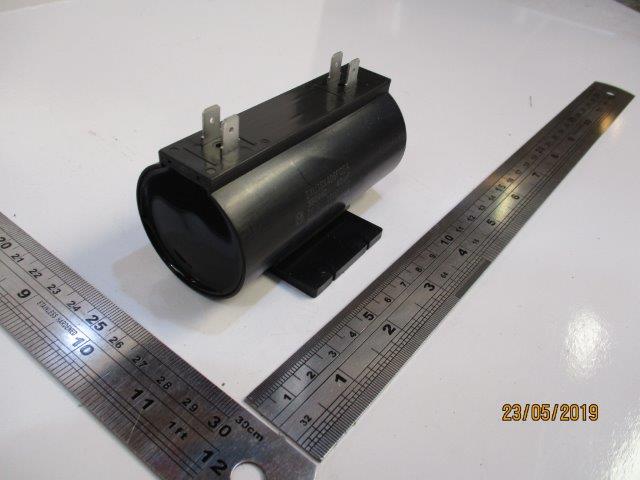

[24] In Stock
SSA552A459
CAPACITOR
Notes: CC Show Image
SSA552A459
[25] In Stock
SSA561B670
BLOCK,TERMI
Notes: T2 Show Image
SSA561B670
[26] Contact
RSA011F282AH
LABEL,MODEL NAME
Contact
SKU: SRC408HENF-A2 HEAT EXCH. AND CONTROL Category:
