SRC408CENF-A HEAT EXCH. AND CONTROL

SRC408CENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

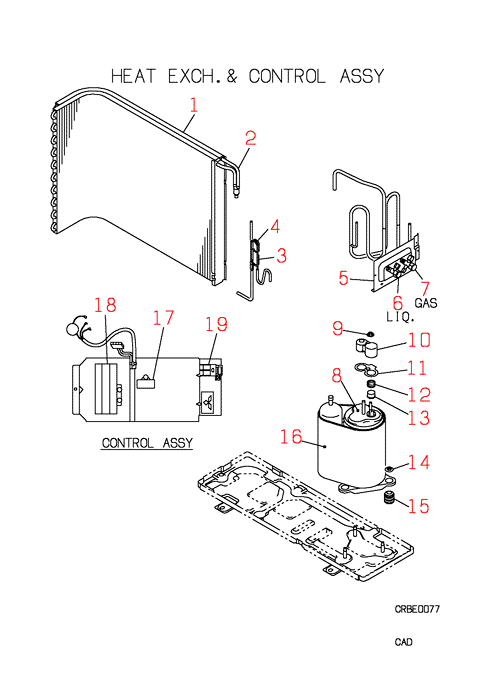

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCG311A005
HEAT,EX,AIR
Contact
[1-4] Contact
RCG301A013K
HEAT,EX,AIR
Contact
[2] Contact
RCG321A195
PIPING ASSY
Contact
[3] Contact
RCG315B064
CAPILLARY
Contact
Substitute: P210V26A000 Notes: !D2.6XD4.0 L300
[3-4] Contact
RCG304A075A
PIPING ASSY
Contact
[4] In Stock
P210V15A500
CAPILLARY
Notes: !D1.5XD2.5 L230 Show Image
P210V15A500
[5] Contact
RCG116A003MG
BRACKET,VAL
Contact
[6] Contact
RCG381A701
SERVICE V
Contact
Substitute: RCG381A013 Notes: LIQ.
[7] Contact
RCG381A704
SERVICE V
Contact
Substitute: RCG381A003A Notes: GAS
[8] In Stock
AHT201A340NC
RM5517GNE4
Notes: RM5517GNE4 1PHASE 22, ***COMPRESSORS CANNOT BE RETURNED***
[9] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[10] In Stock
AHA947K002
COVER
[11] In Stock
AHA932C002
GASKET
[12] In Stock
AHA941D003
SPRING (PROTECTOR)
Show Image
AHA941D003
[13] In Stock
ASA533B092
PROTECTOR
Notes: 51C Show Image
ASA533B092
[14] In Stock
SSA914C033
NUT
Notes: 1pc
[15] Out of Stock
SSA941C239
R CUSSION
Substitute: OUT OF PRODUCTION
[16] Contact
RCG151C021B
INSULATION
Contact
[17] In Stock
SSA552A153
CAPACITOR,R
Notes: 1.6MF 460VAC Show Image
SSA552A153
[18] In Stock
SSA552A459
CAPACITOR
Notes: CC Show Image
SSA552A459
[19] Contact
SSA561B669
BLOCK,TERMI
Contact
