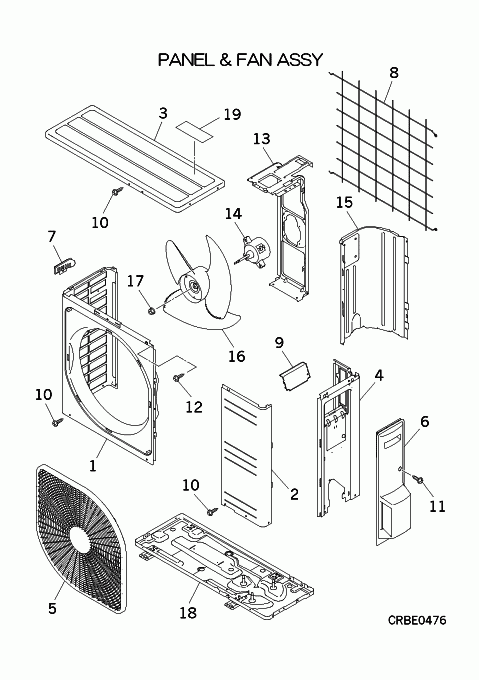

SRC35ZSXA-W PANEL AND FAN ASSY

SRC35ZSXA-W PANEL AND FAN ASSY

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCT122A003 PANEL FRONT In Stock
  • [2] RCT122A006 PANEL,SERVICE In Stock
  • [3] RCT124A200 PANEL, TOP In Stock
  • [4] RCT125A002 PANEL ASSY,REAR In Stock
  • [5] RCT435A002 GRILLE AIR OUTLET In Stock Notes: FAN GRILLE / FAN GUARD
  • [6] RCT132A002 SERVICE COVER ASSY In Stock Notes: PLASTIC SERVICE PANEL - RIGHT SIDE
  • [7] SSA944B036B HANDLE In Stock Notes: LENGTH 9.7CM Show Image
  • [8] RCT131A001 GUARD,FIN In Stock Substitute: RCT131A001B
  • [9] RCT142A004 COVER(TB) In Stock Show Image
  • [10] SSA913A034F SCREW,TAP In Stock Notes: 1PC ONLY, 4X8, 4x8 Show Image
  • [11] SSA913A034J SCREW,TAP In Stock Notes: 1PC ONLY/ LENGTH 1.5CM, 4x12
  • [12] SSA913A008F SCREW,TAP Contact Notes: 1PC ONLY, 4X10, 4x10   Contact
  • [13] RCT116A003 BRACKET In Stock
  • [14] SSA512T061G MOTOR,DC In Stock Notes: CONDENSER FAN MOTOR
  • [15] RCT141A001 PLATE,BAFFLE Contact   Contact
  • [16] SSA431B250 FAN In Stock Notes: FAN BLADE
  • [17] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [18] RCT111A001AB BASE ASSY Out of Stock
  • [19] RSA011H036B LABEL,NOTICE In Stock Notes: LENGTH 16.5CM
