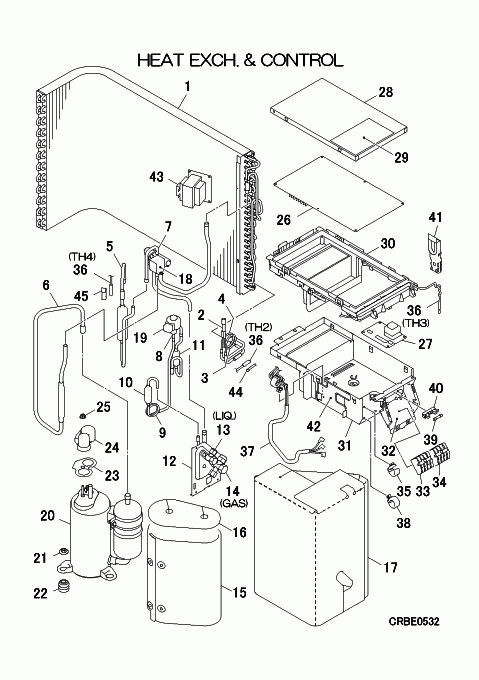

SRC35ZSA-W/A HEAT EXCH. AND CONTROL

SRC35ZSA-W/A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] In Stock
RCV301A013
HEAT EXCH ASSY(AIR)
[2-4] Contact
RCV321A134
PIPE ASSY
Contact
Notes: !
[3] Contact
RCV315B005
CAPILLARY
Contact
Notes: !D2.6XD3.6 L200
[4] Contact
RCV315B005A
CAPILLARY
Contact
Notes: !D2.6XD3.6 L200
[5] In Stock
RCV321A149A
PIPING ASSY(DISCH)
[6] Contact
RCV321A126
PIPING ASSY(SUCTIO
Contact
[7] In Stock
SSA382C097
4 WAY VALVE
Notes: 20S, Reversing Valve Body - Body only
[8] In Stock
SSA387F078
VALVE, BODY(EXP)
Notes: EEV, Expansion Valve Body - LENGTH 7.7CM Show Image
SSA387F078
[8-11] Contact
RCV304A013
PIPING ASSY(EXPAN)
Contact
Substitute: RCV304A013A
[9] Contact
RCV315B202
CAPILLARY
Contact
Notes: !D2.6XD3.6 L300
[10] In Stock
SSA357A005A
STRAINER
SSA357A005A
[11] In Stock
RCN325A700
PIPE,SHELL
Notes: ! Show Image
RCN325A700
[12] Out of Stock
RCS116A004B
BRACKET,VALVE
[13] In Stock
RCS381A004B
SERVICE VALVE
Notes: LIQ., (1/4") LIQ. Show Image
RCS381A004B
[14] In Stock
RCV381A001A
SERVICE VALVE
Notes: GAS, (3/8") GAS Show Image
RCV381A001A
[15] Contact
RCV154D019
INSULATION,COMP
Contact
[16] In Stock
RCS154D009
INSULATION,COMP
Notes: UPPER
[17] In Stock
RCV154D007A
INSULATION
[18] In Stock
RSA382F013AK
COIL ASSY,S
Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image
RSA382F013AK
[19] In Stock
SSA382F210AY
SOLENOID COIL (EEV)
Notes: FOR EEV, SOLENOID COIL FOR EEV
[20] In Stock
AHT201A864BS
COMPRESSOR ASSY
Notes: RM-B5077SBE2, ***COMPRESSORS CANNOT BE RETURNED***
[21] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[22] In Stock
SSA941C346A
CUSHION,RUBBER
Notes: 1pc, FOR COMPRESSOR Show Image
SSA941C346A
[23] In Stock
RSA932C004
GASKET
RSA932C004
[24] Out of Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[25] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[26] In Stock
RCV505A351V
PWB ASSY
Notes: PWB1, Main PCB
[27] In Stock
RCT505A304
DRED
Notes: PWB2, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
RCT505A304
[28-29] Contact
RCV142A012BD
LID ASSY,CONTROL
Contact
[29] Contact
RCV011G004K
LABEL,WIRING
Contact
Notes: !
[30] In Stock
RCV142A017
BOX ASSY CONTROL
[31] In Stock
RCV142A014A
BOX ASSY,CONTROL(A)
[32] Contact
RCV116A014
BRACKET(TB)
Contact
[33] In Stock
SSA561B723C
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B723C
[34] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: TB2, T3 Show Image
SSA561B733
[35] In Stock
SSA554D173
CORE,FERRITE
[36] In Stock
SSA551A239A
SENSOR ASSY
Notes: TH2,3,4, SENSOR ASSEMBLY Show Image
SSA551A239A
[37] In Stock
RCV504A001A
HARNESS ASSY
Notes: FOR COMP., Red,White,Black Show Image
RCV504A001A
[38] In Stock
SSA554D183
KILLER,NOISE
SSA554D183
[39] In Stock
SSA564A136
FUSE
Notes: F 15A
[40] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[41] In Stock
RCV129A001A
HOLDER,SENSOR
RCV129A001A
[42] Contact
RCV142A008
LID
Contact
[43] In Stock
SSA554B099A
REACTOR
SSA554B099A
[44] In Stock
RKF941F002
SPRING
Notes: FOR TH2, LENGTH 2.8CM Show Image
RKF941F002
[45] In Stock
RCJ941F001
SPRING
Notes: FOR TH4, LENGTH 2.5CM Show Image
RCJ941F001
[46] Contact
RWC011F042A
LABEL,MODEL NAME
Contact
Notes: !
