SRC35ZJ-S HEAT EXCH. AND CONTROL

Name: SRC35ZJ-S HEAT EXCH. AND CONTROL
SKU: SRC35ZJ-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC35ZJ-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

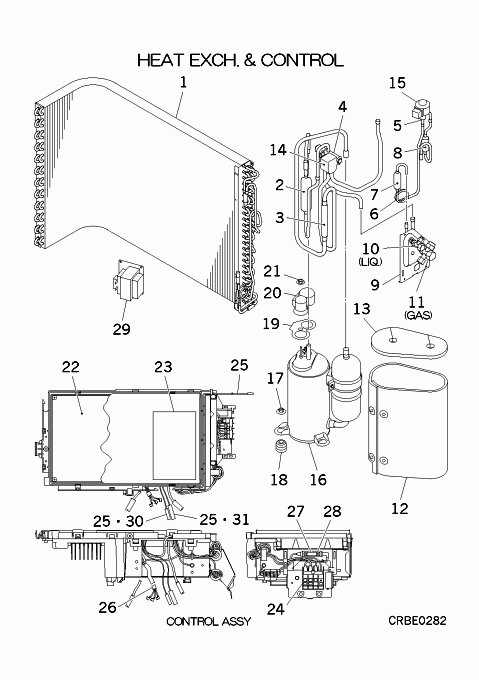

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCV301A007

HEAT EXCH ASSY(AIR)

Notes: Outdoor Heat Exchanger coil assembly

[2] Contact

RCD325A700

PIPE,SHELL

Contact

[3] Contact

RCK325A501C

PIPE,SHELL

Contact

Notes: !

[4] In Stock

SSA382C091

VALVE,S(4WAY)

Notes: 20S

[5] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[5-8] In Stock

RCV304A009

PIPING ASSY(EXPAN)

Show Image

[6] In Stock

RCV315B001

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image

[7] In Stock

SSA357A005A

STRAINER

Show Image

[8] In Stock

RCN325A700

PIPE,SHELL

Show Image

[9] In Stock

RCS116A004

BRACKET,VALVE

[10] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[11] In Stock

RCV381A001

VALVE,SERVICE(3/8")

Notes: GAS, (SUCTION 3/8") GAS Show Image

[12] In Stock

RCS154D012

INSULATION,COMP

Notes: SIDE

[13] In Stock

RCS154D009

INSULATION,COMP

Notes: UPPER

[14] In Stock

RSA382F013K

COIL ASSY,SOLENOID

Notes: FOR 20S, FOR 20S‚ - 2 BLUE WIRES - RED PLUG Show Image

[15] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[16] In Stock

AHT201A864DR

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[17] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[18] Contact

SSA941C346

CUSHION,RUBBER

Contact

[19] In Stock

RSA932C004

GASKET

Show Image

[20] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[21] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[22] In Stock

RCV505A101

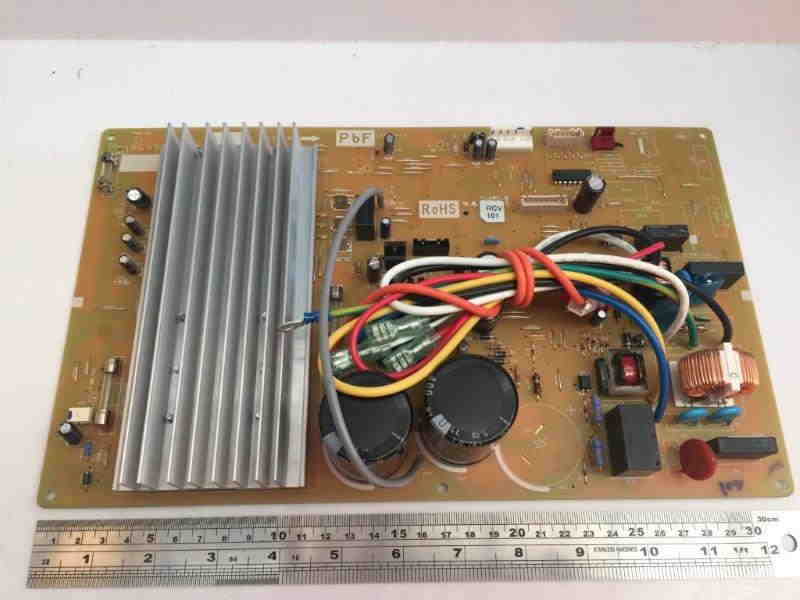

PWB ASSY

Notes: ONLY OUTDOOR PWB Show Image

[23] Contact

RCV011G002AA

LABEL,WIRING

Contact

[24] In Stock

SSA561B723

BLOCK,TERMINAL

Show Image

[25] In Stock

SSA551A216L

SENSOR ASSY

Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image

[26] In Stock

RCV504A001

WIRING ASSY

Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image

[27] In Stock

SSA564A136

FUSE

Notes: 15A

[28] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[29] In Stock

SSA554B099

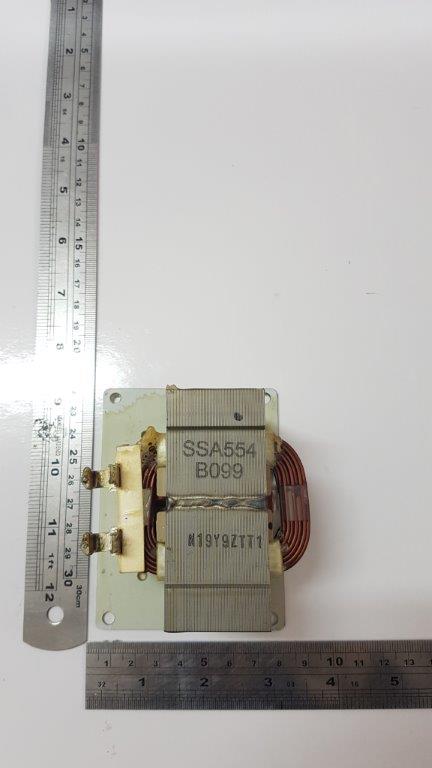

REACTOR

Show Image

[30] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[31] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[32] Contact

RWC011F016B

LABEL,MODEL NAME

Contact
