SRC328HENF-A HEAT EXCH. AND CONTROL

SRC328HENF-A HEAT EXCH. AND CONTROL

Available Parts

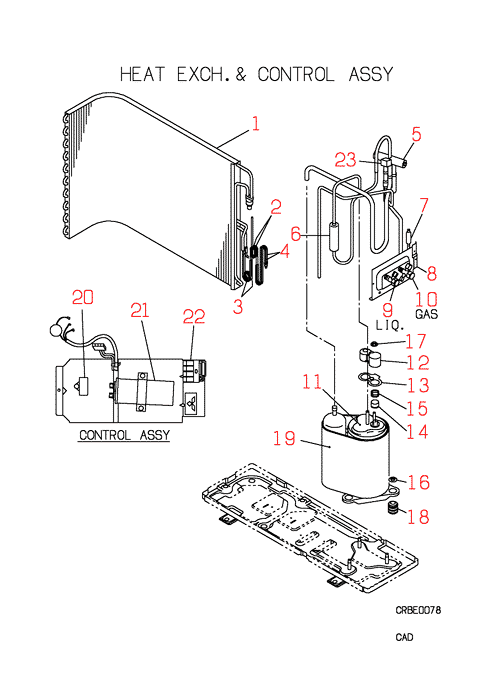

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCG311A001MA HEAT EXCH Contact   Contact
  • [1-4] RCG301A004MN HEAT EXCH ASSY(AIR Contact   Contact
  • [2] RCG315B019L CAPILLARY Contact   Contact
  • [2-4] RCG304A015N PIPING ASSY Contact   Contact
  • [3] RCG315B017 CAPILLARY Contact Substitute: P210V26A000   Contact
  • [4] RCG315B018 CAPILLARY Contact Substitute: P210V26A000   Contact
  • [5] SSA382C034 VALVE 4WAY In Stock Notes: REVERSING VALVE (4WAY) Show Image
  • [6] RCD325A700 PIPE,SHELL Contact   Contact
  • [7] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [8] RCG116A003MG BRACKET,VAL Contact   Contact
  • [9] RCG381A700 SERVICE VAL Contact Substitute: RCG381A014 Notes: LIQ.   Contact
  • [10] RCG381A007A VELVE SERVI In Stock Notes: 1/2 GAS (SUCTION), GAS Show Image
  • [11] AHT201A340NA RM5517GNE2 In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM5517GNE2 1PHASE 22
  • [12] AHA947K002 COVER In Stock
  • [13] AHA932C002 GASKET In Stock Substitute: RM80087
  • [14] ASA533B092 PROTECTOR In Stock Notes: 51C Show Image
  • [15] AHA941D003 SPRING (PROTECTOR) In Stock Substitute: RM80088 Show Image
  • [16] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [17] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [18] SSA941C239 R CUSSION Contact Substitute: OUT OF PRODUCTION   Contact
  • [19] RCG151C021 INSULATION Contact   Contact
  • [20] SSA552A153 CAPACITOR,R In Stock Notes: 1.6MF 460VAC, 1.6MF 460VAC Show Image

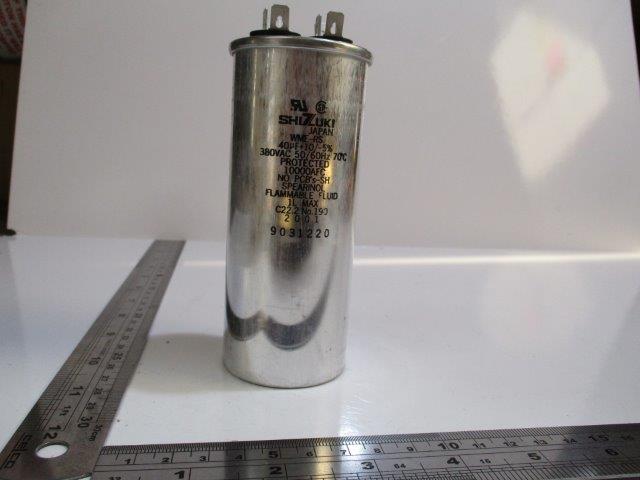

  • [21] SSA552A149 CAPACITOR In Stock Notes: CC Show Image
  • [22] SSA561B670 BLOCK,TERMI In Stock Notes: T2 Show Image
  • [23] SSA382F414 COIL SOLENO In Stock Notes: 240V, SV Show Image
SKU: SRC328HENF-A HEAT EXCH. AND CONTROL Category:
