SRC28HG-S HEAT EXCH. AND CONTROL

SRC28HG-S HEAT EXCH. AND CONTROL

Available Parts

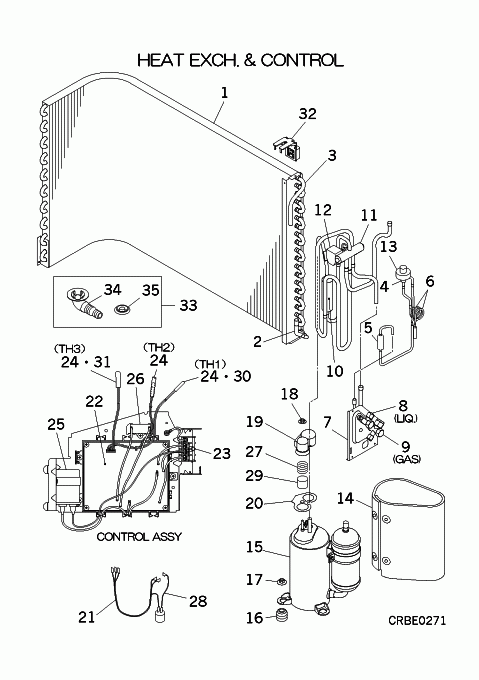

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-3] RCS301A001   Contact   Contact
  • [2] RCS321A003 PIPE Contact Notes: !   Contact
  • [3] RCP321A035A PIPE Contact Notes: !   Contact
  • [4] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [4-6] RCS304A009 PIPING ASSY(EXPAN) In Stock
  • [5] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image

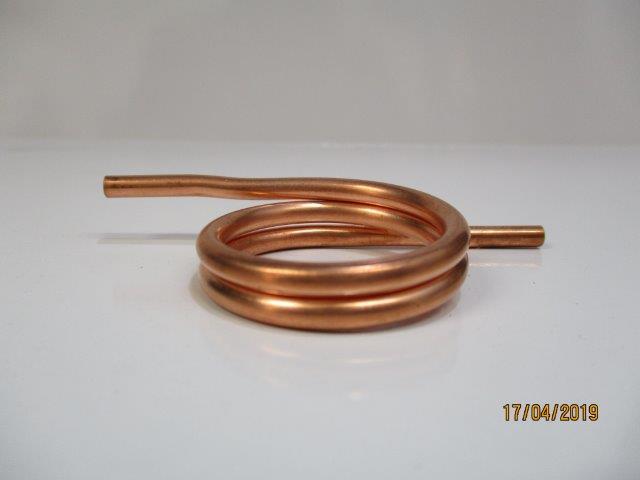

  • [6] RCS315B005 CAPILLARY,SUB In Stock Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300 Show Image
  • [7] RCS116A004 BRACKET,VALVE Contact   Contact
  • [8] RCS381A004 VALVE,SERVICE(1/4 Contact Notes: LIQ.   Contact
  • [9] RCP381A004A   Contact Notes: GAS   Contact
  • [10] RCD325A700 PIPE,SHELL Contact   Contact
  • [11] SSA382C083 VALVE,S(4WAY) In Stock Notes: 20S, 20S Show Image
  • [12] RSA382F013G COIL ASSY,SOLENOID In Stock Notes: FOR 20S, FOR 20S Show Image
  • [13] SSA382F210C COIL,SOLENOID In Stock Notes: FOR EEVA - 5 WIRES - WHITE PLUG/ LENGTH 56CM, FOR EEV Show Image
  • [14] RCS154D018   Contact   Contact
  • [15] RSA201A005 COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***
  • [16] SSA941C241 CUSION In Stock Show Image
  • [17] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [18] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [19] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [20] RSA932C004 GASKET In Stock Show Image
  • [21] RCP504A500 HARNESS ASSY Contact Notes: FOR COMP.   Contact
  • [22] RCR505A025J PWB ASSY In Stock
  • [23] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T Show Image
  • [24] SSA551A216C SENSOR ASSY In Stock Show Image
  • [25] SSA552A843B CAPACITOR,RUNNING In Stock Substitute: SSA552A178K Notes: CFO 30MF 400VAC, CC 30MF 400VAC Show Image
  • [26] SSA552A842B CAPACITOR,RUNNING Contact Notes: CFI 1.2MF 450VAC, CFO 1.2MF 450VAC   Contact
  • [27] AHA941D003 SPRING (PROTECTOR) In Stock Substitute: RM80088 Show Image
  • [28] RCP504A504 HARNESS ASSY Contact   Contact
  • [29] RSA533B002   Contact   Contact
  • [30] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM, FOR TOPL Show Image
  • [31] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM, FOR TD Show Image
  • [32] RCS129A001 HOLDER,SENSOR Contact   Contact
  • [33] RPC008A601B PARTS,STANDARD(B) Contact Notes: !   Contact
  • [34] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [35] SSA947A089 GROMMET In Stock Substitute: RPC008A601 Notes: SSA422A024 ELBOW, D20.1 Show Image
  • [36] RWC011F011A   Contact   Contact
SKU: SRC28HG-S HEAT EXCH. AND CONTROL Category:
