SRC28HCA-S HEAT EXCH. AND CONTROL

Name: SRC28HCA-S HEAT EXCH. AND CONTROL
SKU: SRC28HCA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC28HCA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

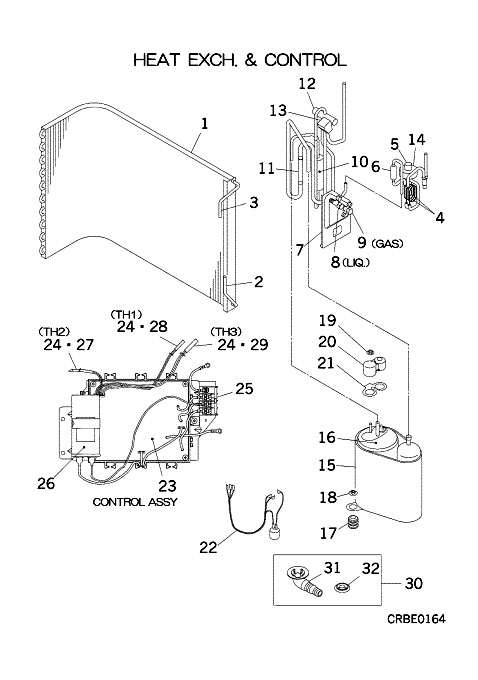

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

RCP301A001

HEAT EXCH

Contact

Substitute: RCP301A001D

[2] Contact

RCP321A001

PIPE

Contact

[3] Contact

RCP321A035

PIPE

Contact

[4] In Stock

RCP315B002

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image

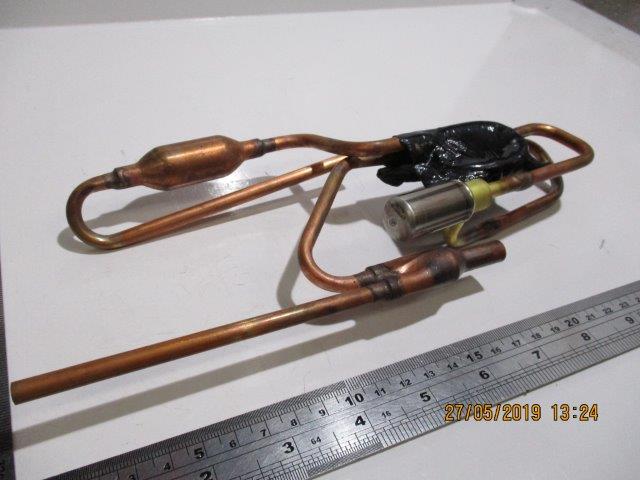

[4-6] In Stock

RCP304A007A

PIPING

Show Image

[5] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[6] In Stock

SSA357A005A

STRAINER

Show Image

[7] Contact

RCK116A002

B/K(VALVE)

Contact

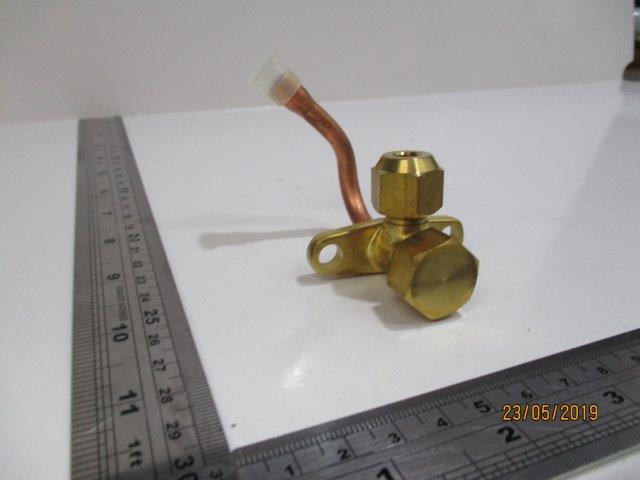

[8] In Stock

RCP381A003

SERVICE V

Notes: LIQ. Show Image

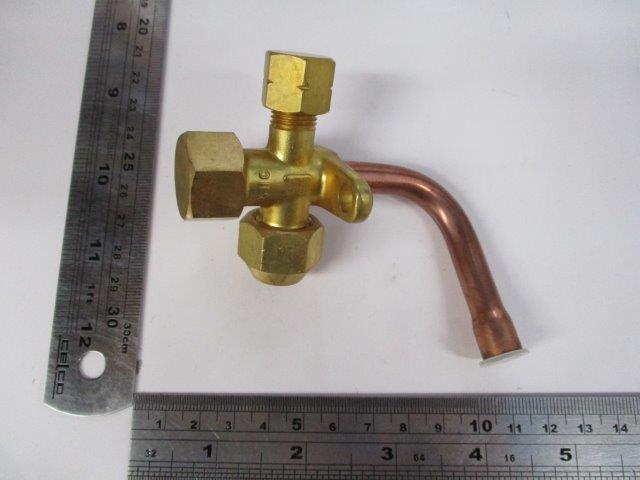

[9] In Stock

RCP381A002

SERVICE V

Notes: GAS Show Image

[10] Contact

RCD325A700

PIPE,SHELL

Contact

[11] Contact

RCK325A501C

PIPE,SHELL

Contact

Notes: !

[12] In Stock

SSA382C071

4 WAY VAL

Notes: 20S

[13] In Stock

RCD382F007AB

COIL ASSY,S

Notes: FOR 20S Show Image

[14] In Stock

SSA382F210

SOLENOID,EX

Show Image

[15] Contact

RCP154D500A

INSULATION,

Contact

[16] In Stock

RSA201A005

COMPRESSOR

Notes: 5PS102DAB, ***COMPRESSORS CANNOT BE RETURNED***

[17] In Stock

SSA941C241

CUSION

Show Image

[18] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[19] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[20] Contact

RSA947K003

COVER,TERMI

Contact

[21] Contact

RSA932C002

GASKET,COVE

Contact

[22] Contact

RCP504A503A

HARNESS ASSY

Contact

Notes: FOR COMP.

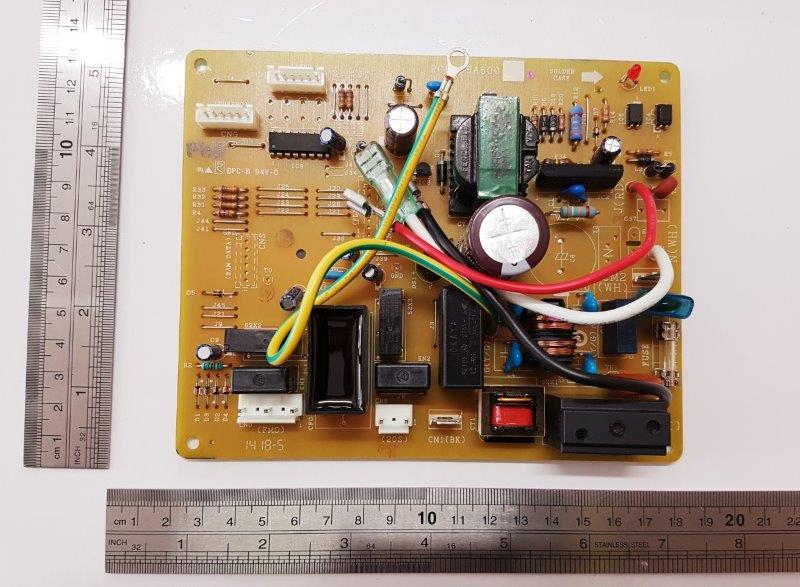

[23] In Stock

RCP505A500

PWB ASSY

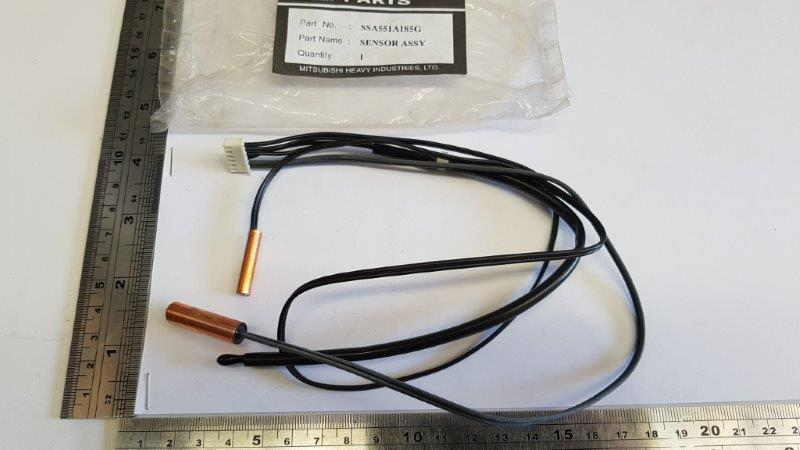

[24] In Stock

SSA551A185G

SENSOR

Notes: TH1,TH2,TH3 Show Image

[25] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[26] In Stock

SSA552A825

CAPACITOR

Notes: CC Show Image

[27] Contact

RCP129A001

HOLDER

Contact

Notes: FOR OUTDOOR TEMP SENSOR

[28] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[29] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[30] Contact

RPC008A601B

PARTS,STANDARD(B)

Contact

Notes: !

[31] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[32] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[33] Contact

RWC011F006C

LABEL,MODEL NAME

Contact

SKU: SRC28HCA-S HEAT EXCH. AND CONTROL Category: Uncategorised
