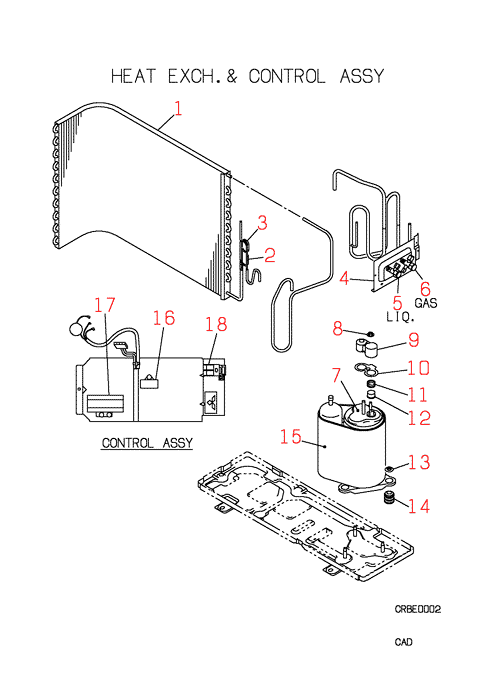

SRC288CENF-A HEAT EXCH. AND CONTROL

SRC288CENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCG311A001MJ
HEAT,EX,AIR
Contact
[1-3] Contact
RCG301A006MM
HEAT,EX,AIR
Contact
[2] Contact
RCD315B044
CAPILLARY
Contact
Substitute: P210V26A000 Notes: ! D2.6XD4.0 L300
[2-3] Contact
RCG304A027N
PIPING ASSY
Contact
[3] Contact
RCG315B023D
CAPILLARY
Contact
Notes: ! D1.4XD2.5 L200
[4] Contact
RCG116A003MG
BRACKET,VAL
Contact
[5] Contact
RCG381A701
SERVICE V
Contact
Substitute: RCG381A013 Notes: LIQ.
[6] In Stock

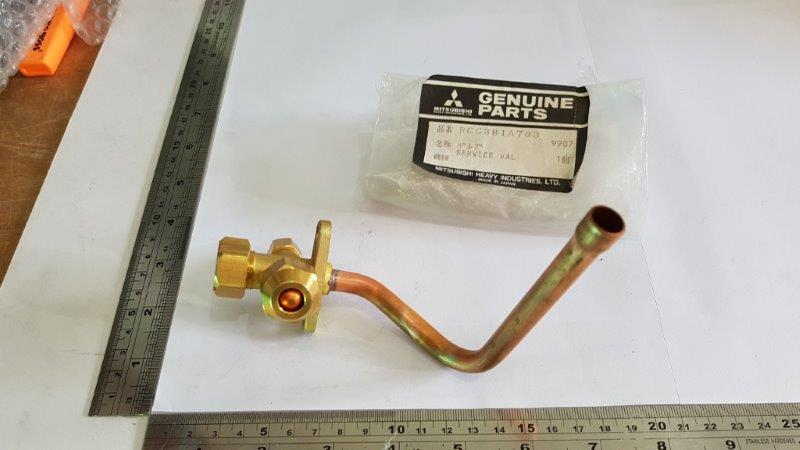

RCG381A703
SERVICE V
Notes: GAS Show Image
RCG381A703
[7] In Stock
AHT201A240N
RM5512GNE1
Notes: RM5512GNE1 1PHASE 220, ***COMPRESSORS CANNOT BE RETURNED***
[8] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[9] In Stock
AHA947K002
COVER
[10] In Stock
AHA932C002
GASKET
[11] In Stock
AHA941D003
SPRING (PROTECTOR)
Show Image
AHA941D003
[12] In Stock
ASA533B149
PROTECTOR
Notes: 51C Show Image
ASA533B149
[13] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[14] Contact
SSA941C141A
CUSHION RUB
Contact
[15] Contact
RCG151C008B
INSULATION
Contact
[16] In Stock
SSA552A153
CAPACITOR,R
Notes: 1.6MF 460VAC Show Image
SSA552A153
[17] In Stock
SSA552A447L
CAPACITOR
Notes: CC 30MF 380V Show Image
SSA552A447L
[18] Contact
SSA561B669
BLOCK,TERMI
Contact
