SRC25ZSXA-W HEAT EXCH. AND CONTROL

Name: SRC25ZSXA-W HEAT EXCH. AND CONTROL
SKU: SRC25ZSXA-W HEAT EXCH. AND CONTROL
Availability: InStock

SRC25ZSXA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

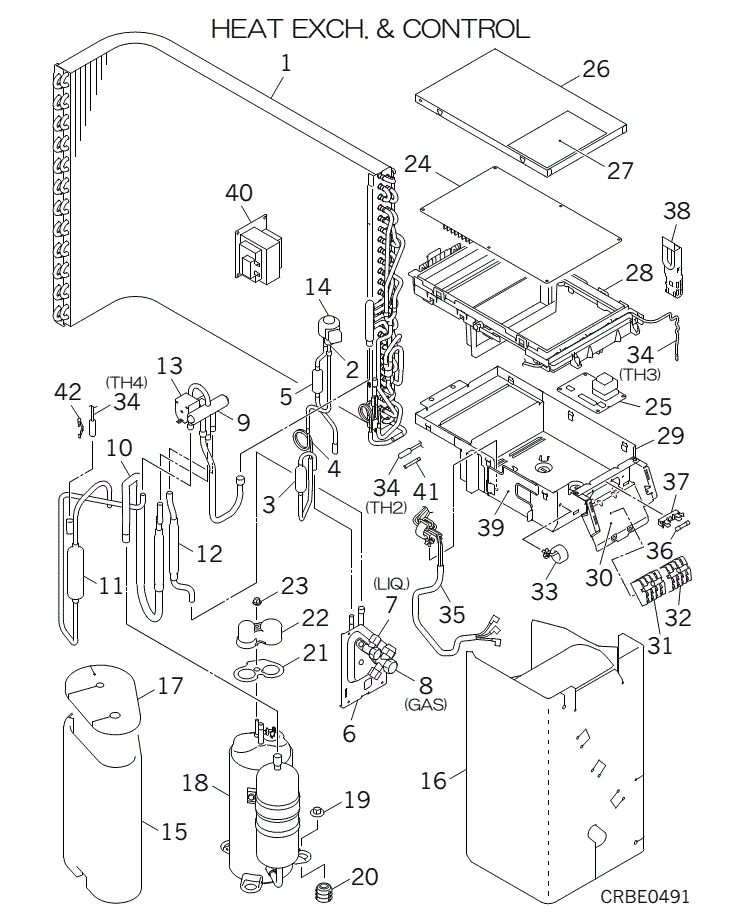

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT301A700

HEAT EXCH ASSY(AIR)

[2] In Stock

SSA387F066

VALVE,BODY(EXP)

Notes: EEV, EXPANSION VALVE BODY - BODY ONLY/ LENGTH 8CM Show Image

[2-5] Contact

RCT304A802A

PIPING ASSY(EXPAN)

Contact

[3] In Stock

SSA357A005A

STRAINER

Show Image

[4] In Stock

RCV315B202A

CAPILLARY

Notes: D2.8xD3.6 L300, 2.6X4.0 L300/ LENGTH 8.3CM Show Image

[5] In Stock

RCN325A700

PIPE,SHELL

Show Image

[6] In Stock

RCS116A004

BRACKET,VALVE

[7] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[8] In Stock

RCV381A001A

SERVICE VALVE

Notes: GAS, (3/8") GAS Show Image

[9] In Stock

SSA382C097

4 WAY VALVE

Notes: 20S, Reversing Valve Body - Body only

[10] Contact

RCT304A803

PIPING ASSY(SUCTION)

Contact

[11] Contact

RCT304A805

PIPING ASSY(DISCH)

Contact

[12] Contact

RCT321A804

PIPE ASSY(E)

Contact

[13] In Stock

RSA382F013BD

COIL ASSY,SOLENOID

Notes: FOR 20S, REVERSING VALVE SOLENOID COIL Show Image

[14] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[15] Contact

RCT154D300

INSULATION

Contact

[16] Contact

RCT154D500

INSULATION

Contact

[17] Contact

RCT154D302

INSULATION,COMP

Contact

[18] In Stock

AHT201C114WB

COMPRESSOR ASSY

Notes: RMT5111SWE3, RMT5111SWE3 ***COMPRESSORS CANNOT BE RETURNED***

[19] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[20] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[21] In Stock

RSA932C004

GASKET

Show Image

[22] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[23] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[24] In Stock

RCV505A351P

PWB ASSY

Notes: PWB1

[25] In Stock

RCT505A304

DRED

Notes: THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[26-27] In Stock

RCV142A012AN

LID ASSY, CONTROL

[27] Contact

RCV011G004C

LABEL,WIRING

Contact

[28] In Stock

RCV142A017

BOX ASSY CONTROL

[29] In Stock

RCV142A014A

BOX ASSY,CONTROL(A)

[30] Contact

RCT116A010A

BRACKET(TB)

Contact

[31] In Stock

SSA561B723C

BLOCK,TERMINAL

Show Image

[32] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[33] In Stock

SSA554D173

CORE,FERRITE

[34] In Stock

SSA551A239A

SENSOR ASSY

Notes: SENSOR ASSEMBLY Show Image

[35] In Stock

RCV504A001A

HARNESS ASSY

Notes: FOR COMP., Red,White,Black Show Image

[36] In Stock

SSA564A136

FUSE

Notes: 15A

[37] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[38] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[39] Contact

RCV142A008

LID

Contact

[40] In Stock

SSA554B099A

REACTOR

Show Image

[41] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[42] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[43] Contact

RWC011F035H

LABEL,MODEL NAME

Contact
