SRC25ZMXA-S/A PANEL AND FAN ASSY

SRC25ZMXA-S/A PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

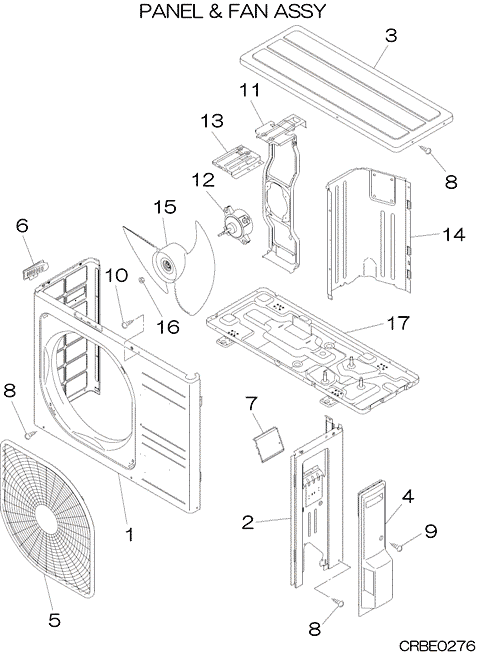

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCV122A002
PANEL,FRONT
[2] In Stock
RCV123A002
PANEL SIDE
Notes: METAL - this part is NOT THE "SERVICE COVER" and NOT THE "plastic" side cover/panel
[3] In Stock
RCV124A001
PANEL,TOP
[4] In Stock
RCV132A004
COVER ASSY,SERVICE
Notes: PIPE AND ELECTRICAL COVER AKA SERVICE PANEL (the plastic one)
[5] In Stock
RCV435A002
GRILLE, AIR OUTLET
Notes: AIR OUTLET GRILLE / FAN GUARD
[6] In Stock
SSA944B036B
HANDLE
Notes: LENGTH 9.7CM Show Image
SSA944B036B
[7] In Stock
RCV142A001
COVER(TB)
RCV142A001
[8] In Stock
SSA913A034F
SCREW,TAP
Notes: 4X8, 1pc ONLY, 4X8 Show Image
SSA913A034F
[9] In Stock
SSA913A034L
SCREW,TAP
Notes: 4X12, 1pc ONLY
[10] In Stock
SSA913A008F
SCREW,TAP
Notes: 4X10, 1pc ONLY, 4X10
[11] In Stock
RCV116A006
BRACKET ASSY
Notes: mounting Bracket for Fan Motor
[12] In Stock
SSA512T094
MOTOR,DC
Notes: CONDENSER FAN MOTOR. HAS WIRING HARNESS ATTACHED.
[13] In Stock
RCV116A003
BRACKET,MOTOR(U)
RCV116A003
[14] In Stock
RCV141A002F
PLATE, BAFFLE
[15] In Stock
SSA431B253
PROPELLER
Notes: OUTDOOR FAN BLADE
[16] In Stock
SSA914B007AC
NUT TH
Notes: 1pc, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
SSA914B007AC
[17] In Stock
RCV111A001
BASE ASSY
SKU: SRC25ZMXA-S/A PANEL AND FAN ASSY Category:
