SRC25ZGX-S HEAT EXCH. AND CONTROL

SRC25ZGX-S HEAT EXCH. AND CONTROL

Available Parts

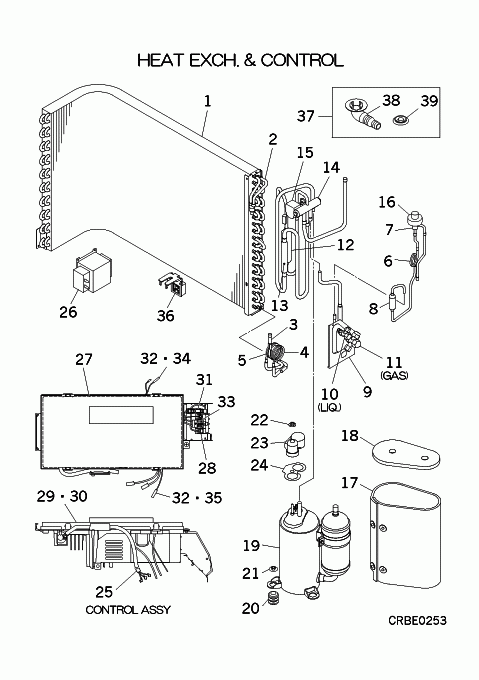

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-5] RCS301A102 HEAT EXCH ASSY(AIR In Stock
  • [2] RCS321A067 PIPE ASSY Contact Notes: !   Contact
  • [3-5] RCS321A028 PIPE ASSY Contact   Contact
  • [4] RCS315B006 CAPILLARY Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [5] RCS315B006A CAPILLARY Contact Notes: !D2.6XD4.0 L500, !D2.6XD4.0 L500   Contact
  • [6] RCS315B005 CAPILLARY,SUB In Stock Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300 Show Image
  • [6-8] RCS304A016 PIPING ASSY(EXPAN) In Stock Show Image
  • [7] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [8] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [9] RCS116A004 BRACKET,VALVE Contact   Contact
  • [10] RCS381A004B SERVICE VALVE In Stock Substitute: RCS381A004A Notes: (1/4) LIQ., LIQ. Show Image
  • [11] RCP381A004C VALVE, SERVICE (3/8) In Stock Notes: GAS
  • [12] RCD325A700 PIPE,SHELL Contact   Contact
  • [13] RCK325A501C PIPE,SHELL Contact Notes: !   Contact
  • [14] SSA382C083 VALVE,S(4WAY) In Stock Notes: 20S, 20S Show Image
  • [15] RSA382F013G COIL ASSY,SOLENOID In Stock Notes: FOR 20S, FOR 20S Show Image
  • [16] SSA382F210A COIL,SOLENOID In Stock Notes: FOR EEV, FOR EEV
  • [17] RCS154D012 INSULATION,COMP In Stock Notes: SIDE, SIDE
  • [18] RCS154D009 INSULATION,COMP In Stock Notes: UPPER, UPPER
  • [19] AHT201A864D COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM-B5077MD1
  • [20] SSA941C241 CUSION In Stock Show Image
  • [21] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [22] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [23] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [24] RSA932C004 GASKET In Stock Show Image
  • [25] RCS504A604 WIRING ASSY In Stock Notes: FOR COMP., FOR COMP. Show Image
  • [26] SSA554B069 REACTOR In Stock
  • [27] RCS505A600A PWB ASSY In Stock Show Image
  • [28] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [29] RCP142A105F LID ASSY, CONTROL In Stock
  • [30] RWC011G077B LABEL,WIRING Contact   Contact
  • [31] SSA564A136 FUSE In Stock Notes: 15A
  • [32] SSA551A216B SENSOR ASSY In Stock Notes: TH1, TH2 , TH3 Show Image
  • [33] SSA552F529 CAPASITOR In Stock
  • [34] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [35] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [36] RCS129A001 HOLDER,SENSOR Contact   Contact
  • [37] RPC008A601B PARTS,STANDARD(B) Contact Notes: !   Contact
  • [38] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [39] SSA947A089 GROMMET In Stock Substitute: RPC008A601 Notes: SSA422A024 ELBOW, D20.1 Show Image
  • [40] RWC011F011Y LABEL,MODEL NAME Contact   Contact
SKU: SRC25ZGX-S HEAT EXCH. AND CONTROL Category:
