SRC25ZG-S HEAT EXCH. AND CONTROL

SRC25ZG-S HEAT EXCH. AND CONTROL

Available Parts

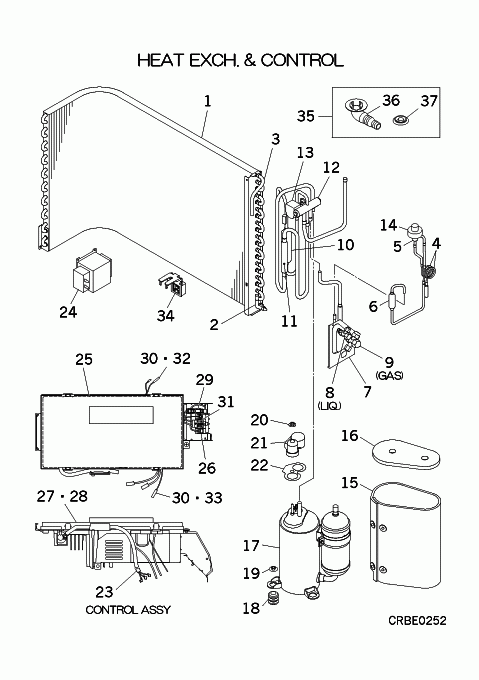

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-3] RCS301A001A HEAT EXCH ASSY(AIR Out of Stock Substitute: OUT OF PRODUCTION
  • [2] RCS321A003 PIPE Contact Notes: !   Contact
  • [3] RCP321A035A PIPE Contact Notes: !   Contact
  • [4] RCS315B005 CAPILLARY,SUB In Stock Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300 Show Image
  • [4-6] RCS304A009 PIPING ASSY(EXPAN) In Stock
  • [5] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [6] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [7] RCS116A004 BRACKET,VALVE Contact   Contact
  • [8] RCS381A004B SERVICE VALVE In Stock Substitute: RCS381A004A Notes: (1/4) LIQ., LIQ. Show Image
  • [9] RCP381A004C VALVE, SERVICE (3/8) In Stock Notes: GAS
  • [10] RCD325A700 PIPE,SHELL Contact   Contact
  • [11] RCK325A501C PIPE,SHELL Contact Notes: !   Contact
  • [12] SSA382C083 VALVE,S(4WAY) In Stock Notes: 20S, 20S Show Image
  • [13] RSA382F013B COIL ASSY,SOLENOID In Stock Notes: FOR 20S, FOR 20S
  • [14] SSA382F210A COIL,SOLENOID In Stock Notes: FOR EEV, FOR EEV
  • [15] RCS154D012 INSULATION,COMP In Stock Notes: SIDE, SIDE
  • [16] RCS154D009 INSULATION,COMP In Stock Notes: UPPER, UPPER
  • [17] AHT201A864D COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM-B5077MD1
  • [18] SSA941C241 CUSION In Stock Show Image
  • [19] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [20] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [21] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [22] RSA932C004 GASKET In Stock Show Image
  • [23] RCS504A604 WIRING ASSY In Stock Notes: FOR COMP., FOR COMP. Show Image
  • [24] SSA554B069 REACTOR In Stock
  • [25] RCS505A600 PWB ASSY In Stock Show Image
  • [26] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [27] RCP142A105F LID ASSY, CONTROL In Stock
  • [28] RWC011G077B LABEL,WIRING Contact   Contact
  • [29] SSA564A136 FUSE In Stock Notes: 15A
  • [30] SSA551A216B SENSOR ASSY In Stock Notes: TH1, TH2 , TH3 Show Image
  • [31] SSA552F529 CAPASITOR In Stock
  • [32] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [33] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [34] RCS129A001 HOLDER,SENSOR Contact   Contact
  • [35] RPC008A601B PARTS,STANDARD(B) Contact Notes: !   Contact
  • [36] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [37] SSA947A089 GROMMET In Stock Substitute: RPC008A601 Notes: SSA422A024 ELBOW, D20.1 Show Image
  • [38] RWC011F011L LABEL,MODEL NAME Contact   Contact
SKU: SRC25ZG-S HEAT EXCH. AND CONTROL Category:
