SRC25ZFX-S HEAT EXCH. AND CONTROL

SRC25ZFX-S HEAT EXCH. AND CONTROL

Available Parts

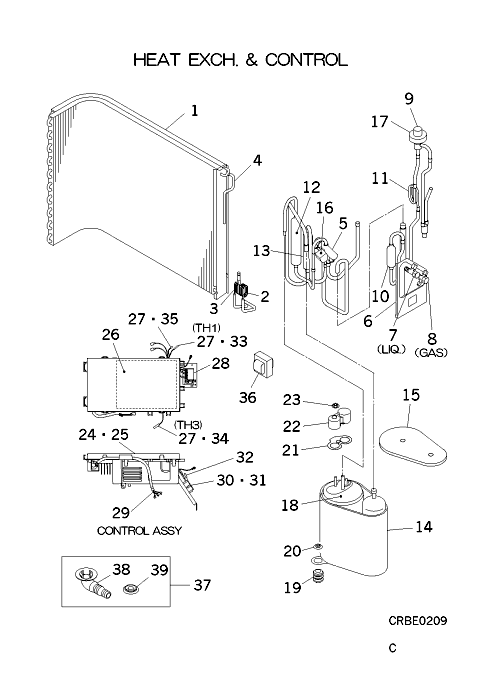

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-4] RCP301A101 HEAT EXCH A Contact   Contact
  • [2] RCP315B100 CAPILLARY In Stock Notes: !D2.0XD3.2 L300, !D2.6XD4.0 L500 Show Image
  • [2-3] RCP321A154A PIPE ASSY Contact Notes: !   Contact
  • [3] RCP315B100A CAPILLARY In Stock Notes: !D2.0XD3.2 L300, !D2.6XD4.0 L500 Show Image
  • [4] RCP321A152 PIPE ASSY Contact   Contact
  • [5] SSA382C067 VALVE,S(4WAY) Contact Notes: 20S, 20S   Contact
  • [6] RCK116A002 B/K(VALVE) Contact   Contact
  • [7] RCP381A003 SERVICE V In Stock Notes: LIQ. Show Image
  • [8] RCP381A004 SERVICE VAL Out of Stock Substitute: OUT OF PRODUCTION Notes: GAS Show Image
  • [9] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [9-11] RCP304A105 PIPING ASSY In Stock
  • [10] SSA357A005A STRAINER In Stock Substitute: ZZ60080A Show Image
  • [11] RCP315B002 CAPILLARY,SUB In Stock Notes: !D2.6XD4.0 L300 / LENGTH 8.5CM, !D2.6XD4.0 L300 Show Image
  • [12] RCD325A700A PIPE,SHELL Contact   Contact
  • [13] SSA325A001CH PIPE,SHELL Contact   Contact
  • [14] RCP154D002 INSULATION Contact Notes: SIDE   Contact
  • [15] RCM154D824 INSULATION Contact Notes: UPPER   Contact
  • [16] RSA382F013B COIL ASSY,SOLENOID In Stock Notes: FOR 20S, FOR 20S
  • [17] SSA382F210A COIL,SOLENOID In Stock Notes: FOR EEV, FOR EEV
  • [18] AHT201A864D COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM-B5077MD1
  • [19] SSA941C241 CUSION In Stock Show Image
  • [20] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [21] RSA932C004 GASKET In Stock Show Image
  • [22] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [23] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [24-25] RCP142A105A LID ASSY,CO Contact   Contact
  • [25] RWC011G077 LABEL,WIRING Contact   Contact
  • [26] RCP505A111P PWB ASSY Contact   Contact
  • [27] SSA551A216B SENSOR ASSY In Stock Notes: TH1, TH2 , TH3 Show Image
  • [28] SSA561B702B BLOCK,TERMINAL In Stock Notes: T2, T2 Show Image
  • [29] RCN504A011F WIRING ASSY Contact Notes: FOR COMPRESSOR   Contact
  • [30] SSA564A102 FUSE(CURRENT) Contact Notes: F 20A   Contact
  • [31] SSA564B064 HOLDER In Stock Substitute: SSA564B044 Notes: LENGTH 6CM
  • [32] RSA552F002 CAPACITOR ASSY In Stock Show Image
  • [33] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [34] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [35] RCP129A001 HOLDER Contact Notes: FOR OUTDOOR TEMP SENSOR   Contact
  • [36] SSA554B069 REACTOR In Stock
  • [37] RPC008A601B PARTS,STANDARD(B) Contact Notes: !   Contact
  • [38] RPC008A601 DRAIN KIT In Stock Notes: 1X ELBOW, 2X GROMMETS PER DRAIN KIT
  • [39] SSA947A089 GROMMET In Stock Substitute: RPC008A601 Notes: SSA422A024 ELBOW, D20.1 Show Image
  • [40] RWC011F010K LABEL,MODEL NAME Contact   Contact
