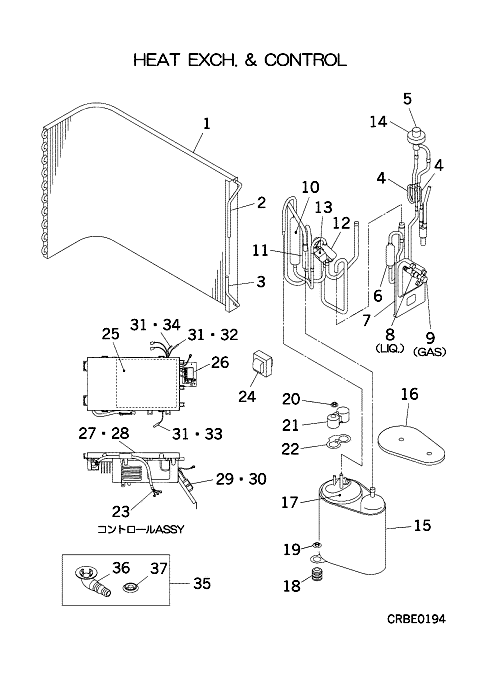

SRC25ZDA-S HEAT EXCH. AND CONTROL

SRC25ZDA-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
RCP301A001J
HEAT EXCH
Contact
[2] Contact
RCP321A159
PIPE
Contact
[3] Contact
RCP321A160
PIPE
Contact
[4] In Stock
RCP315B002
CAPILLARY,SUB
Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.5CM Show Image
RCP315B002

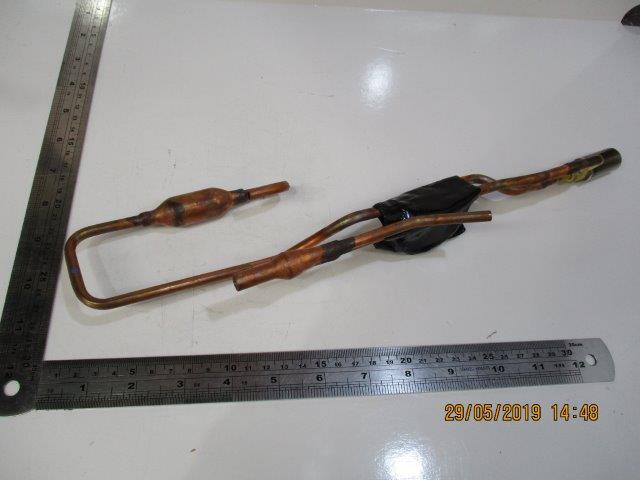

[4-6] In Stock
RCP304A105A
PIPING ASSY
Show Image
RCP304A105A
[5] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[6] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[7] Contact
RCK116A002
B/K(VALVE)
Contact
[8] In Stock
RCP381A003
SERVICE V
Notes: LIQ. Show Image
RCP381A003
[9] Out of Stock
RCP381A004
SERVICE VAL
Substitute: OUT OF PRODUCTION Notes: GAS Show Image
RCP381A004
[10] Out of Stock
RCD325A700A
PIPE,SHELL
[11] Contact
SSA325A001CH
PIPE,SHELL
Contact
[12] In Stock
SSA382C077
VALVE,S(4WAY)
Notes: 20S, REVERSING VALVE (BODY) Show Image
SSA382C077
[13] In Stock
RSA382F010B
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR REVERSING VALVE (COIL ONLY) Show Image
RSA382F010B
[14] In Stock
SSA382F210A
COIL,SOLENOID
Notes: FOR EEV
[15] Contact
RCP154D002
INSULATION
Contact
Notes: SIDE
[16] Contact
RCM154D824
INSULATION
Contact
Notes: UPPER
[17] In Stock
AHT201A864D
COMPRESSOR ASSY
Notes: RM-B5077MD1, ***COMPRESSORS CANNOT BE RETURNED***
[18] In Stock
SSA941C241
CUSION
Show Image
SSA941C241
[19] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[20] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[21] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[22] In Stock
RSA932C004
GASKET
Show Image
RSA932C004
[23] Contact
RCN504A011F
WIRING ASSY
Contact
Notes: FOR COMPRESSOR
[24] In Stock
SSA554B069
REACTOR
[25] Out of Stock
RCP505A101AD
PWB ASSY
Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION - SUB FOR RCP505A101AC
[26] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[27-28] Contact
RCP142A105A
LID ASSY,CO
Contact
[28] Contact
RWC011G077
LABEL,WIRING
Contact
[29] In Stock
SSA564A047
FUSE
Notes: F 20A Show Image
SSA564A047
[30] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044
[31] In Stock
SSA551A185H
SENSOR
Notes: HEAT EXCHANGE,DISCHARGE PIPE,OUTDOOR TEMP, TH1,TH2,TH3 Show Image
SSA551A185H
[32] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[33] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[34] Contact
RCP129A001
HOLDER
Contact
Notes: FOR OUTDOOR TEMP SENSOR
[35] Contact
RPC008A601B
PARTS,STANDARD(B)
Contact
Notes: !
[36] In Stock
RPC008A601
DRAIN KIT
Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT
[37] In Stock
SSA947A089
GROMMET
Notes: D20.1, SSA422A024 ELBOW Show Image
SSA947A089
[38] Contact
RSA011F398
LABEL,MODEL NAME
Contact
SKU: SRC25ZDA-S HEAT EXCH. AND CONTROL Category:
