SRC258CENF-A HEAT EXCH. AND CONTROL

SRC258CENF-A HEAT EXCH. AND CONTROL

Available Parts

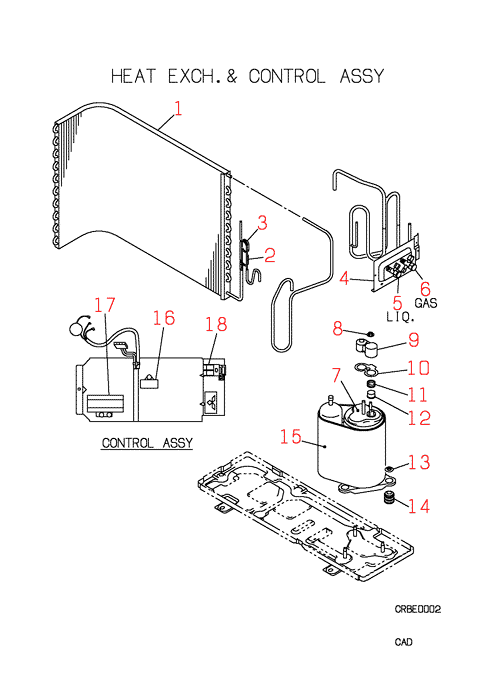

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCG311A001MJ HEAT,EX,AIR Contact   Contact
  • [1-3] RCG301A006ML HEAT,EX,AIR Contact   Contact
  • [2] RCD315B044 CAPILLARY Contact Substitute: P210V26A000 Notes: ! D2.6XD4.0 L300   Contact
  • [2-3] RCG304A027M PIPING ASSY Contact   Contact
  • [3] RCG315B026F CAPILLARY Contact Notes: ! D1.2XD2.5 L300   Contact
  • [4] RCG116A003MG BRACKET,VAL Contact   Contact
  • [5] RCG381A701 SERVICE V Contact Substitute: RCG381A013 Notes: LIQ.   Contact
  • [6] RCG381A703 SERVICE V In Stock Substitute: RCG381A008A Notes: GAS Show Image
  • [7] AHT201A190N RM5485GNE1 Contact Notes: RM5485GNE1 1PHASE 22   Contact
  • [8] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [9] AHA947K002 COVER In Stock
  • [10] AHA932C002 GASKET In Stock Substitute: RM80087
  • [11] AHA941D003 SPRING (PROTECTOR) In Stock Substitute: RM80088 Show Image

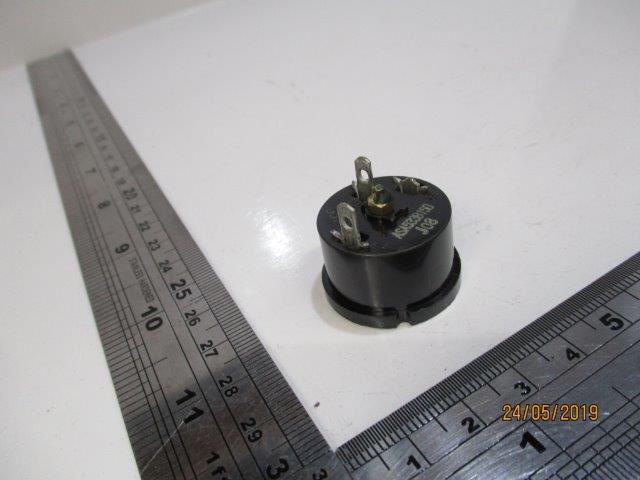

  • [12] ASA533B150 PROTECTOR In Stock Notes: 51C Show Image
  • [13] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [14] SSA941C141 CUSHION RUB Contact   Contact
  • [15] RCG151C005A INSULATION Contact   Contact
  • [16] SSA552A153 CAPACITOR,R In Stock Notes: 1.6MF 460VAC, 1.6MF 460VAC Show Image

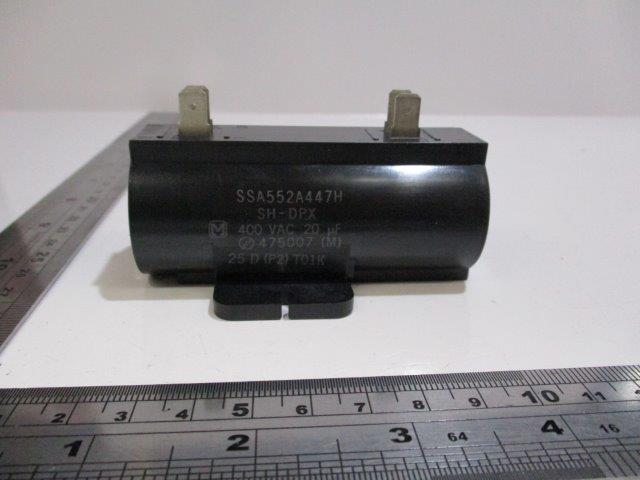

  • [17] SSA552A447H CAPACITOR In Stock Notes: CC Show Image
  • [18] SSA561B669 BLOCK,TERMI Contact   Contact
SKU: SRC258CENF-A HEAT EXCH. AND CONTROL Category:
