SRC24YMA-S HEAT EXCH. AND CONTROL

Name: SRC24YMA-S HEAT EXCH. AND CONTROL
SKU: SRC24YMA-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC24YMA-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

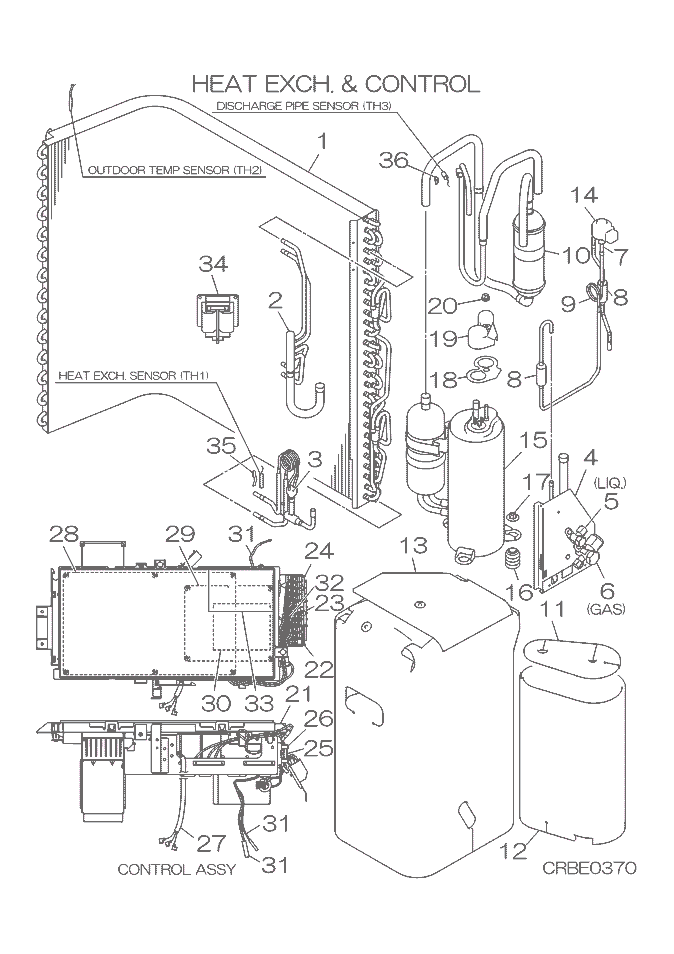

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] In Stock

RCR301A005B

HEAT EXCH ASSY(AIR)

Notes: CONDENSER HEAT EXCHANGER COIL ASSEMBLY

[2] In Stock

RCR315D004A

HEADER ASSY,GAS

Show Image

[3] In Stock

RCR315A002

DISTRIBUTOR ASSY

Show Image

[4] In Stock

RCR116A003

BRACKET(VALVE)

Show Image

[5] In Stock

RCR381A003B

VALVE,SERVICE(1/4")

Notes: LIQ., LIQUID LINE SERVICE VALVE - 1/4' - LIQ. Show Image

[6] In Stock

RCR381A004

VALVE,SERVICE(5/8)

Notes: GAS, 5/8" GAS (SUCTION)

[7] In Stock

SSA387F052

VALVE,BODY(EXP)

Notes: EEV, EEV‚ - Expansion Valve Body - Body only Show Image

[7-9] In Stock

RCR304A008B

PIPING ASSY(EXPAN)

[8] In Stock

SSA357A005A

STRAINER

Show Image

[9] Contact

RCT315B003

CAPILLARY

Contact

Notes: !D2.6XD4.0 L300

[10] In Stock

AHT351A001

ACCUMULATOR

Show Image

[11] Contact

RPC154D903

INSULATION,COMP

Contact

Notes: COMP UPPER

[12] Contact

RPC154D904

INSULATION,COMP

Contact

Notes: COMP BODY

[13] Contact

RCR154D005

INSULATION

Contact

[14] In Stock

RCM382F001G

COIL,SOLENOID(EEV)

Notes: FOR EEV, HAS HARNESS ATTACHED-WHITE PLUG, MULTI COLOR WIRES Show Image

[15] In Stock

AHT201C184DA

COMPRESSOR ASSY

Notes: RMT5118MDE2, ***COMPRESSORS CANNOT BE RETURNED*** (RMT5118MDE2)

[16] In Stock

SSA941C351A

CUSHION,RUBBER

Notes: For Compressor - Sold individually

[17] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[18] In Stock

RSA932C004

GASKET

Show Image

[19] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[20] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[21] In Stock

RPC142A902

BOX,CONTROL(A)

[22] In Stock

SSA561B665

BLOCK TERMI

Notes: T1 Show Image

[23] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[24] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[25] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[26] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[27] In Stock

RPC504A912A

WIRING ASSY

Notes: FOR COMP. Show Image

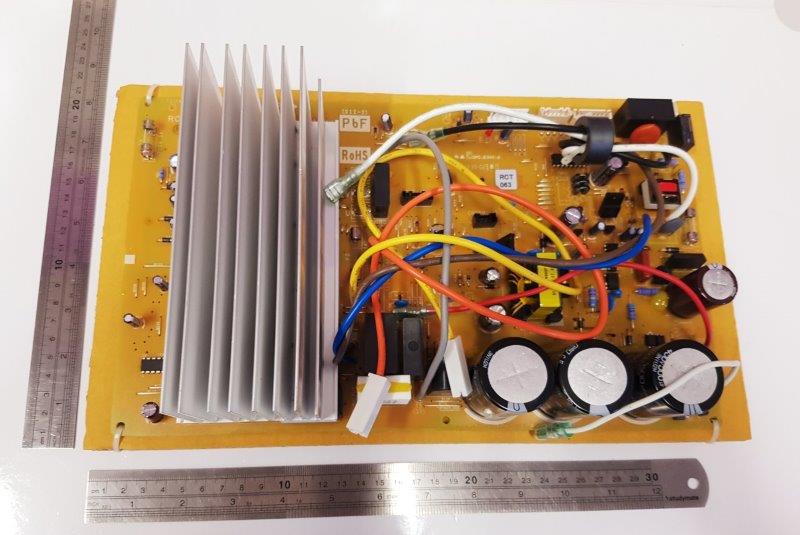

[28] In Stock

RCT505A302JB

PWB ASSY (MAIN)

Notes: PWB1

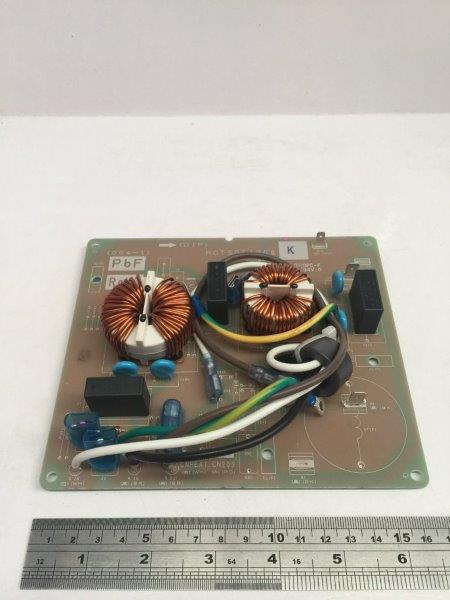

[29] In Stock

RCT505A004K

PWB ASSY (SUB)

Notes: PWB2 Show Image

[30] In Stock

RCT505A304

DRED

Notes: PWB3, THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image

[31] In Stock

SSA551A233

SENSOR ASSY

Notes: TH1,TH2,TH3, . CONTAINS ALL SENSORS ON OUTDOOR UNIT Show Image

[32] In Stock

SSA554D173

CORE,FERRITE

[33] Contact

RCR011G200A

LABEL,WIRING

Contact

[34] In Stock

SSA554B113

REACTOR

Show Image

[35] In Stock

RKJ941F001

SPRING LEAF

Show Image

[36] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[37] Contact

RCR011F005AK

LABEL,MODEL NAME

Contact
