SRC20ZMA-S/A HEAT EXCH. AND CONTROL

SRC20ZMA-S/A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

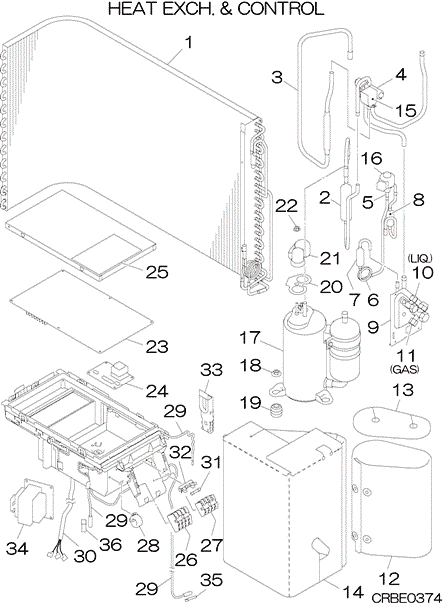

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCV301A001C
HEAT EXCH ASSY(AIR
Notes: ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***
[2] In Stock
RCV321A200A
PIPING ASSY(DISCH)
[3] In Stock
RCV321A202A
PIPING ASSY(SUCTION)
[4] In Stock
SSA382C091
VALVE,S(4WAY)
Notes: 20S
[5] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[5-8] In Stock
RCV304A009
PIPING ASSY(EXPAN)
RCV304A009
[6] In Stock
RCV315B001
CAPILLARY
Notes: !D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image
RCV315B001
[7] In Stock
SSA357A005A
STRAINER
SSA357A005A
[8] In Stock
RCN325A700
PIPE,SHELL
RCN325A700
[9] In Stock
RCS116A004
BRACKET,VALVE
[10] In Stock
RCS381A004B
SERVICE VALVE
Notes: LIQ., (1/4") LIQ. Show Image
RCS381A004B
[11] In Stock
RCV381A001A
SERVICE VALVE
Notes: GAS, (3/8") GAS Show Image
RCV381A001A
[12] In Stock
RCS154D012
INSULATION,COMP
Notes: SIDE
[13] In Stock
RCS154D009
INSULATION,COMP
Notes: UPPER
[14] In Stock
RCV154D007A
INSULATION
[15] In Stock
RSA382F013K
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S‚ - 2 BLUE WIRES - RED PLUG Show Image
RSA382F013K
[16] In Stock
SSA382F210AY
SOLENOID COIL (EEV)
Notes: FOR EEV, SOLENOID COIL FOR EEV
[17] In Stock
AHT201A864DR
COMPRESSOR ASSY
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[18] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[19] In Stock
SSA941C346A
CUSHION,RUBBER
Notes: 1pc, FOR COMPRESSOR Show Image
SSA941C346A
[20] In Stock
RSA932C004
GASKET
RSA932C004
[21] In Stock
RSA947K005
COVER TERMINAL
Notes: FOR COMPRESSOR Show Image
RSA947K005
[22] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[23] In Stock
RCV505A351
PWB ASSY
Notes: CONFIRM MODEL/SERVICE CODE Show Image
RCV505A351
[24] In Stock
RCT505A304A
DRED
Notes: THIS PWB IS ONLY REQUIRED IN SPECIAL CIRCUMSTANCES, FOR MORE INFO CONTACT TECH SUPPORT Show Image
RCT505A304A
[25] Contact
RCV011G004
LABEL.WIRING
Contact
[26] In Stock
SSA561B723
BLOCK,TERMINAL
SSA561B723
[27] In Stock
SSA561B733
BLOCK,TERMINAL
Notes: T3 Show Image
SSA561B733
[28] In Stock
SSA554D173
CORE,FERRITE
[29] In Stock
SSA551A239A
SENSOR ASSY
Notes: TH2,3,4, SENSOR ASSEMBLY Show Image
SSA551A239A
[30] In Stock
RCV504A001
WIRING ASSY
Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image
RCV504A001
[31] In Stock
SSA564A136
FUSE
Notes: 15A
[32] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[33] In Stock
RCV129A001A
HOLDER,SENSOR
RCV129A001A
[34] In Stock
SSA554B099A
REACTOR
Notes: AKA TRANSFORMER Show Image
SSA554B099A
[35] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[36] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[37] Contact
RWC011F016BY
LABEL,MODEL NAME
Contact
