SRC20ZG-S HEAT EXCH. AND CONTROL

Name: SRC20ZG-S HEAT EXCH. AND CONTROL
SKU: SRC20ZG-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC20ZG-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

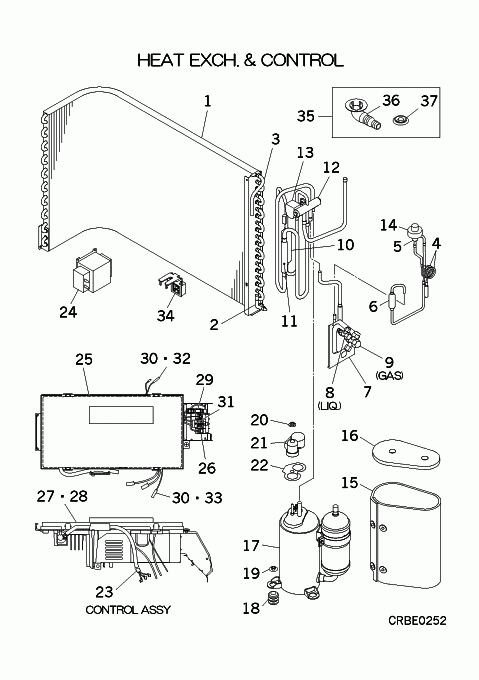

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Out of Stock

RCS301A001A

HEAT EXCH ASSY(AIR

Substitute: OUT OF PRODUCTION

[2] Contact

RCS321A003

PIPE

Contact

Notes: !

[3] Contact

RCP321A035A

PIPE

Contact

Notes: !

[4] In Stock

RCS315B005

CAPILLARY,SUB

Notes: !D2.6XD4.0 L300 Show Image

[4-6] In Stock

RCS304A009

PIPING ASSY(EXPAN)

[5] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[6] In Stock

SSA357A005A

STRAINER

Show Image

[7] In Stock

RCS116A004

BRACKET,VALVE

[8] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[9] In Stock

RCP381A004C

VALVE, SERVICE (3/8")

Notes: GAS Show Image

[10] Contact

RCD325A700

PIPE,SHELL

Contact

[11] Contact

RCK325A501C

PIPE,SHELL

Contact

Notes: !

[12] In Stock

SSA382C083

VALVE,S(4WAY)

Notes: 20S, REVERSING VALVE Show Image

[13] In Stock

RSA382F013B

COIL ASSY,SOLENOID

Notes: FOR 20S

[14] In Stock

SSA382F210A

COIL,SOLENOID

Notes: FOR EEV

[15] In Stock

RCS154D012

INSULATION,COMP

Notes: SIDE

[16] In Stock

RCS154D009

INSULATION,COMP

Notes: UPPER

[17] In Stock

AHT201A864D

COMPRESSOR ASSY

Notes: RM-B5077MD1, ***COMPRESSORS CANNOT BE RETURNED***

[18] In Stock

SSA941C241

CUSION

Show Image

[19] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[20] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[21] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[22] In Stock

RSA932C004

GASKET

Show Image

[23] In Stock

RCS504A604

WIRING ASSY

Notes: FOR COMP. Show Image

[24] In Stock

SSA554B069

REACTOR

[25] In Stock

RCS505A600

PWB ASSY

Show Image

[26] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[27] In Stock

RCP142A105F

LID ASSY, CONTROL

[28] Contact

RWC011G077B

LABEL,WIRING

Contact

[29] In Stock

SSA564A136

FUSE

Notes: 15A

[30] In Stock

SSA551A216B

SENSOR ASSY

Notes: TH1, TH2 , TH3 Show Image

[31] In Stock

SSA552F529

CAPASITOR

[32] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[33] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[34] Contact

RCS129A001

HOLDER,SENSOR

Contact

[35] Contact

RPC008A601B

PARTS,STANDARD(B)

Contact

Notes: !

[36] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[37] In Stock

SSA947A089

GROMMET

Notes: D20.1, SSA422A024 ELBOW Show Image

[38] Contact

RWC011F011K

LABEL,MODEL NAME

Contact
