SRC208HENF-A HEAT EXCH. AND CONTROL

SRC208HENF-A HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

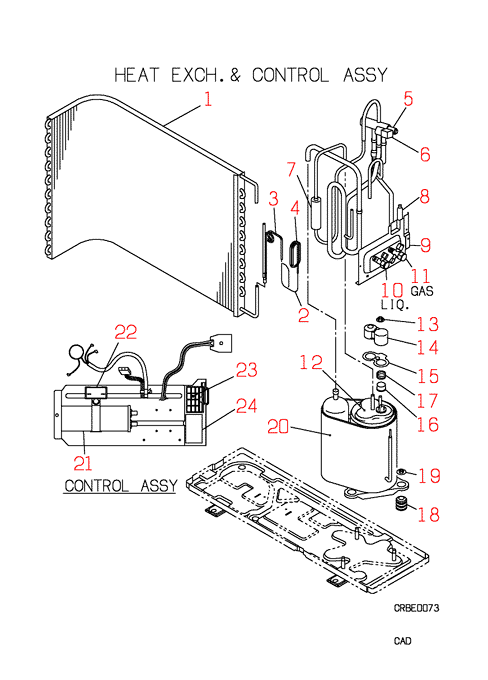

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
RCD311A701
HEAT,EX,AIR
Contact
[1-4] Contact
RCD301A704
HEAT EXCH
Contact
[2] Contact
RCD315B725
CAPILLARY
Contact
Notes: ! D1.3XD2.5 L500
[2-4] Contact
RCD304A715
PIPING
Contact
[3] Contact
RCD315B726
CAPILLARY,SUB
Contact
Notes: ! D2.6XD4.0 L300
[4] Contact
RCD315B727
CAPILLARY,SUB
Contact
Notes: ! D2.6XD4.0 L300
[5] Out of Stock
SSA382C032
VALVE 4WAY
[6] In Stock
SSA382F414
COIL SOLENO
Notes: SV, 240V Show Image
SSA382F414
[7] Contact
RCD325A700
PIPE,SHELL
Contact
[8] In Stock

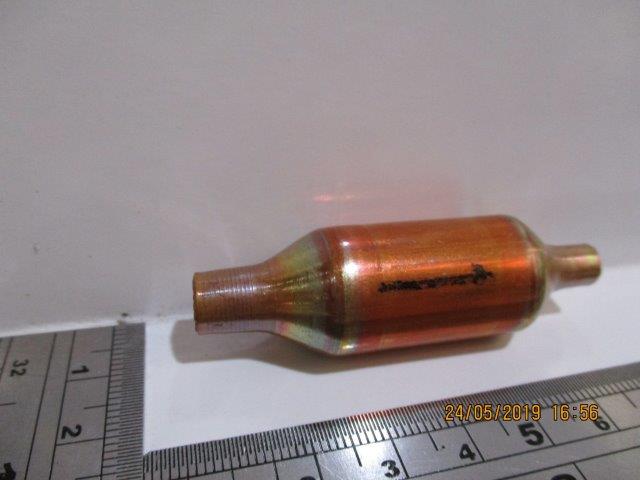

SSA357A005J
STRAINER
Show Image
SSA357A005J
[9] Contact
RCD116A702B
BRACKET V
Contact
[10] Contact
RCD381A710
SERVICE VAL
Contact
Notes: LIQ.
[11] Out of Stock
RCD381A712
SERVICE VAL
Notes: GAS
[12] Out of Stock
AHT201A190NA
RM5485GNE2
Substitute: OUT OF PRODUCTION Notes: RM5485GNE2 1PHASE 22
[13] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[14] In Stock
AHA947K002
COVER
[15] In Stock
AHA932C002
GASKET
[16] In Stock
ASA533B150
PROTECTOR
Notes: 51C Show Image
ASA533B150
[17] In Stock
AHA941D003
SPRING (PROTECTOR)
Show Image
AHA941D003
[18] Contact
SSA941C177B
CUSHION RUB
Contact
Substitute: SSA941C177
[19] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[20] Contact
RCD151C706B
INSULATION
Contact
[21] In Stock
SSA552A447H
CAPACITOR
Notes: CC Show Image
SSA552A447H
[22] In Stock
SSA552A153
CAPACITOR,R
Notes: 1.6MF 460VAC Show Image
SSA552A153
[23] In Stock
SSA561B670
BLOCK,TERMI
Notes: T2 Show Image
SSA561B670
[24] Contact
RWC011G043B
LABEL,WIRING
Contact
SKU: SRC208HENF-A HEAT EXCH. AND CONTROL Category:
