SRC18YJ-S HEAT EXCH. AND CONTROL

Name: SRC18YJ-S HEAT EXCH. AND CONTROL
SKU: SRC18YJ-S HEAT EXCH. AND CONTROL
Availability: InStock

SRC18YJ-S HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

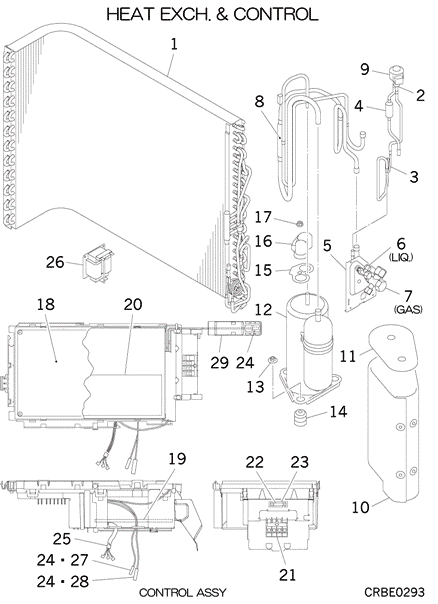

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCT301A005

HEAT EXCH ASSY(AIR

[2] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[2-4] In Stock

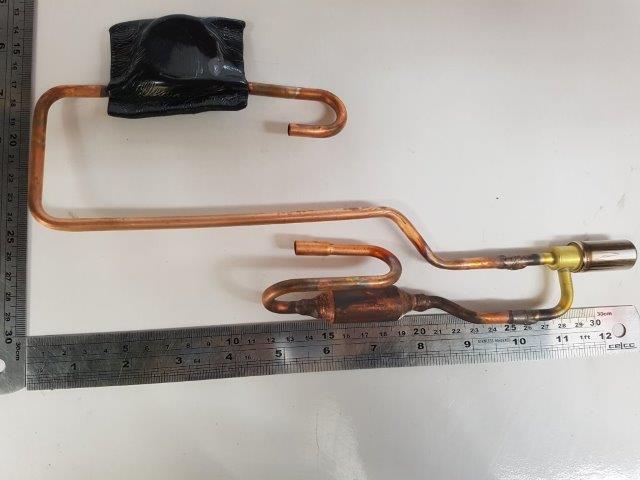

RMC304A017

PIPING ASSY (EXPAN)

Show Image

[3] In Stock

RCT315B002

CAPILLARY

Notes: !D2.6XD4.0 L300, !D2.6XD4.0 L300‚ / LENGTH 8.6CM Show Image

[4] In Stock

RCN325A700

PIPE,SHELL

Show Image

[5] In Stock

RCS116A004

BRACKET,VALVE

[6] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[7] In Stock

RCT381A002

SERVICE VALVE

Notes: GAS, VALVE,SERVICE (1/2") - GAS Show Image

[8] Contact

RMC325A001

PIPE,SHELL

Contact

[9] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[10] Contact

RCT154D004

INSULATION,COMP

Contact

[11] Contact

RCV154D003

INSULATION,COMP

Contact

[12] In Stock

RSA201A036

COMPRESSOR ASSY

Notes: ***COMPRESSORS CANNOT BE RETURNED***

[13] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[14] In Stock

SSA941C354

CUSHION,RUBBER

Show Image

[15] In Stock

RSA932C004

GASKET

Show Image

[16] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[17] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[18] In Stock

RCT505A005LA

PWB (MAIN)

Notes: MAIN / INVERTER BOARD - Show Image

[19] In Stock

RCT505A004C

PWB ASSY (SUB)

Notes: PWB ASSY (SUB)

[20] Contact

RMC011G008

LABEL,WIRING

Contact

[21] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: T2 Show Image

[22] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: 20A, F 20A‚ - 20 amp fuse Show Image

[23] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[24] In Stock

SSA551A216L

SENSOR ASSY

Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image

[25] In Stock

RCV504A001

WIRING ASSY

Notes: FOR COMP., WIRING HARNESS FOR COMPRESSOR Show Image

[26] In Stock

SSA554B113

REACTOR

Show Image

[27] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[28] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[29] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[30] Contact

RMC011F016D

LABEL,MODEL NAME

Contact
