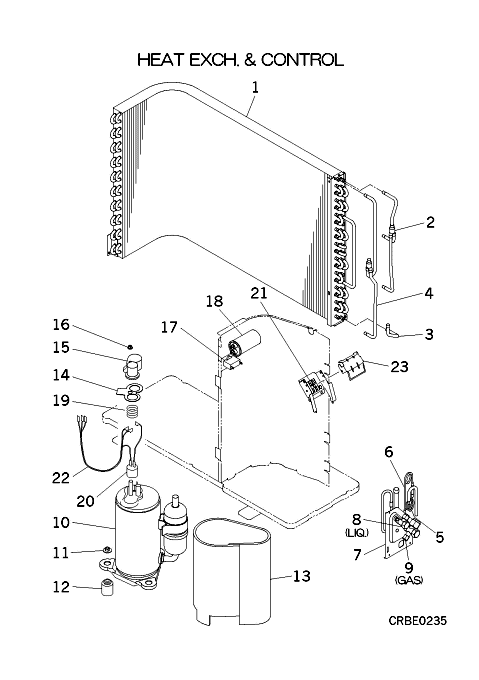

SRC13CFV HEAT EXCH. AND CONTROL

SRC13CFV HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact
RCS301A101
HEAT EXCH ASSY(AIR
Contact
[2] Contact
RCS321A054
PIPE ASSY
Contact
Notes: !
[3] Contact
RCS321A053
PIPE
Contact
Notes: !
[4] Contact
RCS321A055
PIPE ASSY
Contact
Notes: !
[5] Contact
RCS315B007
CAPILLARY
Contact
Notes: !
[5-6] Contact
RCS304A005
PIPING ASSY
Contact
Notes: !
[6] Contact
RCS315B004
CAPILLARY,SUB
Contact
Notes: !
[7] In Stock
RCS116A004
BRACKET,VALVE
[8] In Stock
RCS381A001
VALVE,SERVICE(1/4"
Notes: LIQ., LIQ.‚  - 1/4 INCH Show Image
RCS381A001

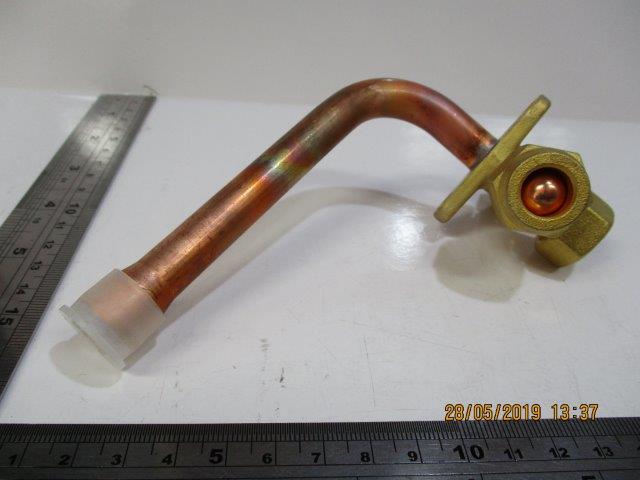

[9] In Stock
RCS381A003
VALVE,SERVICE(1/2"
Notes: GAS Show Image
RCS381A003
[10] In Stock
RSA201A017
COMPRESSOR ASSY
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[11] In Stock
SSA914C013A
NUT,FLANGE
Notes: 1pc Show Image
SSA914C013A
[12] Contact
RSA941C003
CUSHION,RUBBER
Contact
[13] Contact
RCS154D002
INSULATION,COMP
Contact
[14] Contact
RSA932C005
GASKET,COVER
Contact
[15] Contact
RSA947K006
COVER,TERMINAL
Contact
[16] In Stock
SSA552A842A
CAPACITOR,RUNNING
Notes: CFI 2.5MF 450VAC, CFO 2.5MF 450VAC Show Image
SSA552A842A
[17] In Stock
SSA552A843B
CAPACITOR,RUNNING
Notes: CFO 30MF 400VAC Show Image
SSA552A843B
[18] In Stock
AHA941D003
SPRING (PROTECTOR)
Show Image
AHA941D003
[19] Contact
RSA533B005
PROTECTOR,MOTOR
Contact
[20] Contact
SSA561B669
BLOCK,TERMI
Contact
[21] In Stock
RCS504A001
WIRING ASSY
Notes: FOR COMP. Show Image
RCS504A001
[22] Contact
RCS142A500
COVER(TB)
Contact
[23] Contact
RCS011F002A
LABEL,MODEL NAME
Contact
Notes: !
