SRC12CCA HEAT EXCH. AND CONTROL

SRC12CCA HEAT EXCH. AND CONTROL

Available Parts

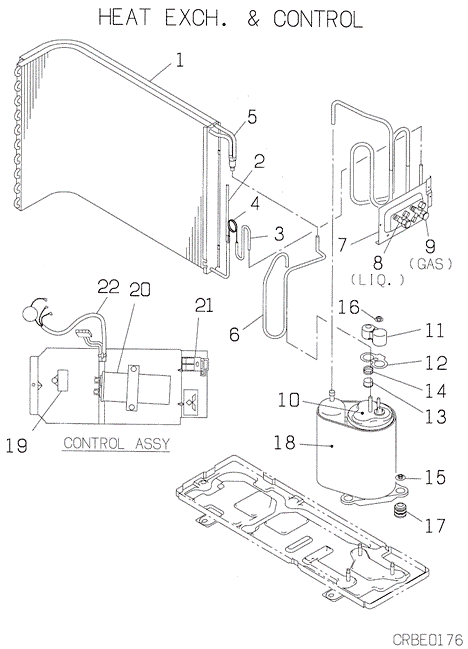

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-5] RCG301A013K HEAT,EX,AIR Contact   Contact
  • [2-4] RCG304A075A PIPING ASSY Contact   Contact
  • [3] RCG315B064 CAPILLARY Contact Substitute: P210V26A000 Notes: !D2.6XD4.0 L300   Contact
  • [4] P210V15A500 CAPILLARY In Stock Notes: !D1.5XD2.5 L230 Show Image
  • [5] RCG321A195 PIPING ASSY Contact   Contact
  • [6] RCG321A194 PIPE,DISCHARGE Contact   Contact
  • [7] RCG116A003MG BRACKET,VAL Contact   Contact
  • [8] RCG381A701 SERVICE V Contact Substitute: RCG381A013 Notes: LIQ.   Contact
  • [9] RCG381A704 SERVICE V Contact Substitute: RCG381A003A Notes: GAS   Contact
  • [10] AHT201A340NC RM5517GNE4 In Stock Substitute: AHM201A340NC Notes: ***COMPRESSORS CANNOT BE RETURNED***, RM5517GNE4 1PHASE 22
  • [11] AHA947K002 COVER In Stock
  • [12] AHA932C002 GASKET In Stock Substitute: RM80087
  • [13] ASA533B092 PROTECTOR In Stock Notes: 51C Show Image
  • [14] AHA941D003 SPRING (PROTECTOR) In Stock Substitute: RM80088 Show Image
  • [15] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [16] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [17] SSA941C239 R CUSSION Contact Substitute: OUT OF PRODUCTION   Contact
  • [18] RCG151C021B INSULATION Contact   Contact
  • [19] SSA552A153 CAPACITOR,R In Stock Notes: 1.6MF 460VAC, CFO Show Image

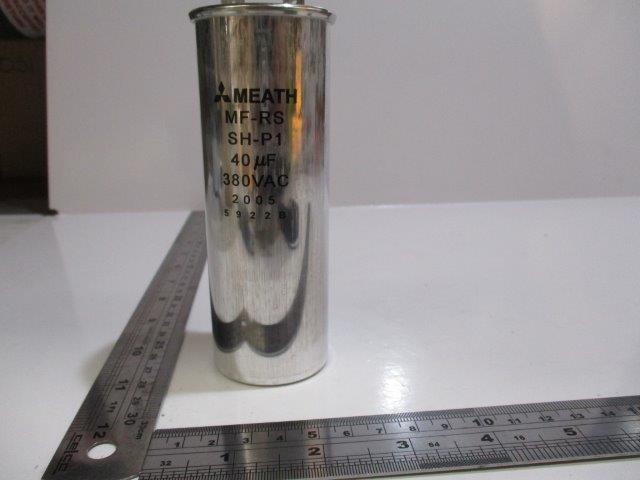

  • [20] SSA552A826 CAPACITOR In Stock Notes: CC Show Image
  • [21] SSA561B669 BLOCK,TERMI Contact   Contact

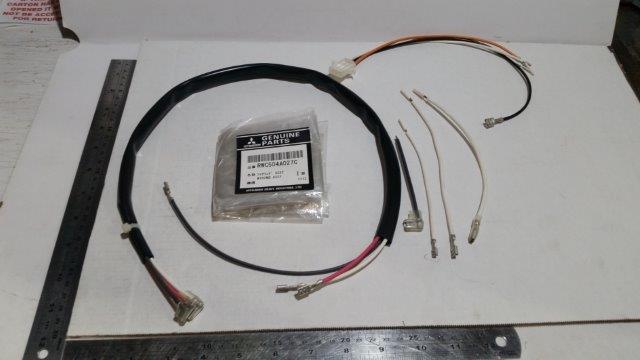

  • [22] RWC504A027C WIRING ASSY In Stock Notes: FOR COMP. Show Image
  • [23] RSA011F393K LABEL,MODEL NAME Contact   Contact
SKU: SRC12CCA HEAT EXCH. AND CONTROL Category:
