SRC10YSA-W HEAT EXCH. AND CONTROL

Name: SRC10YSA-W HEAT EXCH. AND CONTROL
SKU: SRC10YSA-W HEAT EXCH. AND CONTROL
Availability: InStock

SRC10YSA-W HEAT EXCH. AND CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

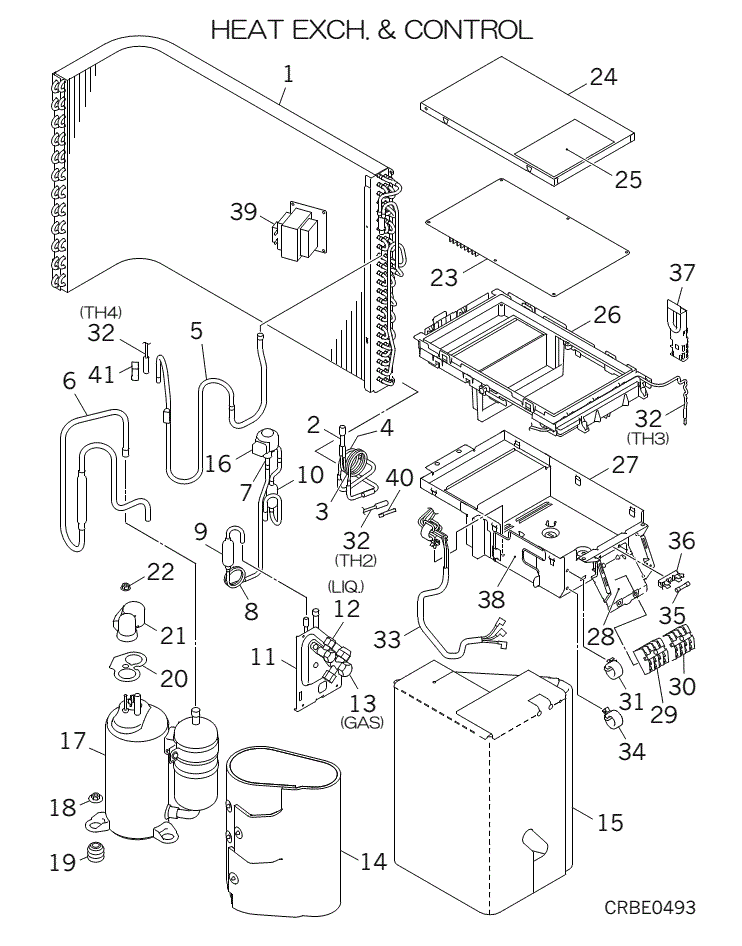

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] In Stock

RCV301A007

HEAT EXCH ASSY(AIR)

Notes: Outdoor Heat Exchanger coil assembly

[2-4] In Stock

RCV321A072

PIPE ASSY

[3] Contact

RCV315B002

CAPILLARY

Contact

Notes: D2.6xD4.0 L200

[4] Contact

RCV315B003

CAPILLARY

Contact

Notes: D2.6xD4.0 L200

[5] Contact

RCV321A116

PIPING ASSY(DISCH)

Contact

[6] Contact

RCV321A119

PIPING ASSY(SUCTION)

Contact

[7] In Stock

SSA387F066

VALVE,BODY(EXP)

Notes: EEV, EXPANSION VALVE BODY - BODY ONLY/ LENGTH 8CM Show Image

[7-10] In Stock

RCV304A009B

PIPING ASSY(EXPAN)

Notes: Includes EEV body, Capillary, Strainer & Shell Pipe

[8] In Stock

RCV315B001

CAPILLARY

Notes: D2.6XD4.0 L300, !D2.6 x D4.0 L300 Show Image

[9] In Stock

SSA357A005A

STRAINER

Show Image

[10] In Stock

RCN325A700

PIPE,SHELL

Show Image

[11] In Stock

RCS116A004

BRACKET,VALVE

[12] In Stock

RCS381A004B

SERVICE VALVE

Notes: LIQ., (1/4") LIQ. Show Image

[13] In Stock

RCV381A001A

SERVICE VALVE

Notes: GAS, (3/8") GAS Show Image

[14] Contact

RCV154D016

INSULATION,COMP

Contact

[15] In Stock

RCV154D007A

INSULATION

[16] In Stock

SSA382F210AY

SOLENOID COIL (EEV)

Notes: FOR EEV, SOLENOID COIL FOR EEV

[17] In Stock

AHT201A864BS

COMPRESSOR ASSY

Notes: RM-B5077SBE2, ***COMPRESSORS CANNOT BE RETURNED***

[18] In Stock

SSA914C013A

NUT,FLANGE

Notes: 1pc Show Image

[19] In Stock

SSA941C346A

CUSHION,RUBBER

Notes: 1pc, FOR COMPRESSOR Show Image

[20] In Stock

RSA932C004

GASKET

Show Image

[21] In Stock

RSA947K005

COVER TERMINAL

Notes: FOR COMPRESSOR Show Image

[22] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[23] In Stock

RCV505A351L

PWB ASSY

Notes: confirm Service Code as SRC25ZSA-W/B & SRC35ZSA-W/B use different part number..351Z (PWB1) Show Image

[24-25] Contact

RCV142A012BD

LID ASSY,CONTROL

Contact

[25] Contact

RCV011G004K

LABEL,WIRING

Contact

[26] In Stock

RCV142A017

BOX ASSY CONTROL

[27] In Stock

RCV142A014A

BOX ASSY,CONTROL(A)

[28] Contact

RCV116A014

BRACKET(TB)

Contact

[29] In Stock

SSA561B723C

BLOCK,TERMINAL

Show Image

[30] In Stock

SSA561B733

BLOCK,TERMINAL

Notes: T3 Show Image

[31] In Stock

SSA554D173

CORE,FERRITE

[32] In Stock

SSA551A239A

SENSOR ASSY

Notes: SENSOR ASSEMBLY Show Image

[33] In Stock

RCV504A001A

HARNESS ASSY

Notes: FOR COMP., Red,White,Black Show Image

[34] In Stock

SSA554D183

KILLER,NOISE

Show Image

[35] In Stock

SSA564A136

FUSE

Notes: 15A

[36] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[37] In Stock

RCV129A001A

HOLDER,SENSOR

Show Image

[38] Contact

RCV142A008

LID

Contact

[39] In Stock

SSA554B099A

REACTOR

Show Image

[40] In Stock

RKF941F002

SPRING

Notes: LENGTH 2.8CM Show Image

[41] In Stock

RCJ941F001

SPRING

Notes: LENGTH 2.5CM Show Image

[42] Contact

RWC011F032J

LABEL,MODEL NAME

Contact
