SRC10YL-S HEAT EXCH. AND CONTROL

SRC10YL-S HEAT EXCH. AND CONTROL

Available Parts

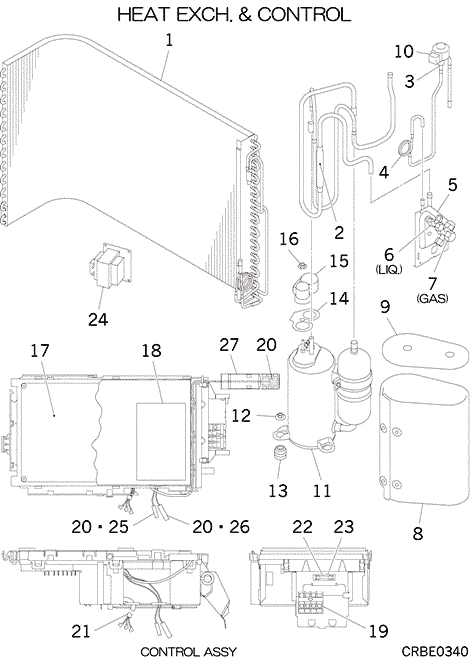

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RMC301A004A HEAT EXCH ASSY(AIR) In Stock
  • [2] RCK325A501C PIPE,SHELL Contact Notes: !   Contact
  • [3] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY ONLY, EEV
  • [3-4] RCV304A205 PIPING ASSY(EXPAN) In Stock Show Image
  • [4] RCV315B202A CAPILLARY In Stock Notes: 2.6X4.0 L300/ LENGTH 8.3CM, D2.6xD4.0 L300
  • [5] RCS116A004 BRACKET,VALVE Contact   Contact
  • [6] RCS381A004B SERVICE VALVE In Stock Substitute: RCS381A004A Notes: (1/4) LIQ., LIQ. Show Image
  • [7] RCV381A001A VALVE, SERVICE In Stock Notes: (3/8) GAS, GAS
  • [8] RCV154D201 INSULATION, COMP Contact   Contact
  • [9] RCS154D009 INSULATION,COMP In Stock Notes: UPPER, UPPER
  • [10] SSA382F210AY SOLENOID COIL (EEV) In Stock Notes: SOLENOID COIL FOR EEV, FOR EEV
  • [11] AHT201A864DT COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***
  • [12] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [13] SA941C294 CUSHION,RUBBER Contact   Contact
  • [14] RSA932C004 GASKET In Stock Show Image
  • [15] RSA947K005 COVER TERMINAL In Stock Notes: FOR COMPRESSOR Show Image
  • [16] SSA914C016 NUT In Stock Notes: 1PC Show Image

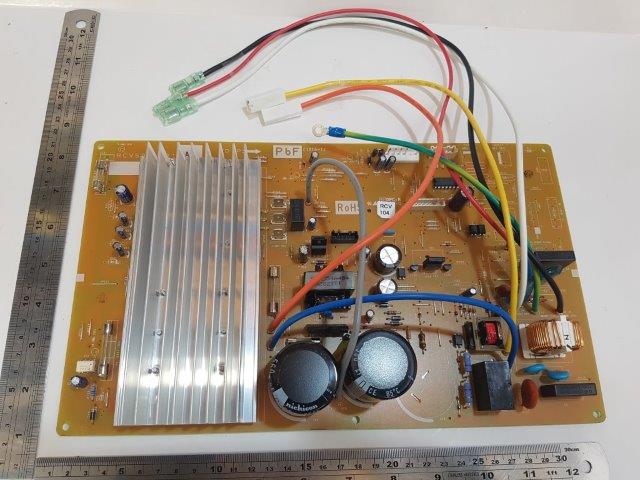

  • [17] RCV505A101AF PWB ASSY In Stock Notes: OUTDOOR PC BOARD Show Image
  • [18] RMC011G007A LABEL,WIRING Contact   Contact
  • [19] SSA561B723 BLOCK,TERMINAL In Stock Show Image
  • [20] SSA551A216L SENSOR ASSY In Stock Notes: OUTDOOR SENSOR ASSEMBLY - 3 SENSORS ON 1 PLUG Show Image
  • [21] RCV504A001 WIRING ASSY In Stock Notes: WIRING HARNESS FOR COMPRESSOR, FOR COMP. Show Image
  • [22] SSA564A136 FUSE In Stock Notes: 15A
  • [23] SSA564B088 HOLDER,FUSE Out of Stock Show Image
  • [24] SSA554B099A REACTOR In Stock Show Image
  • [25] RKF941F002 SPRING In Stock Notes: LENGTH 2.8CM Show Image
  • [26] RCJ941F001 SPRING In Stock Notes: LENGTH 2.5CM Show Image
  • [27] RCV129A001A HOLDER,SENSOR In Stock Show Image
  • [28] RMC011F016J LABEL,MODEL NAME Contact   Contact
SKU: SRC10YL-S HEAT EXCH. AND CONTROL Category:
