SRC10CHVA HEAT EXCH. AND CONTROL

SRC10CHVA HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

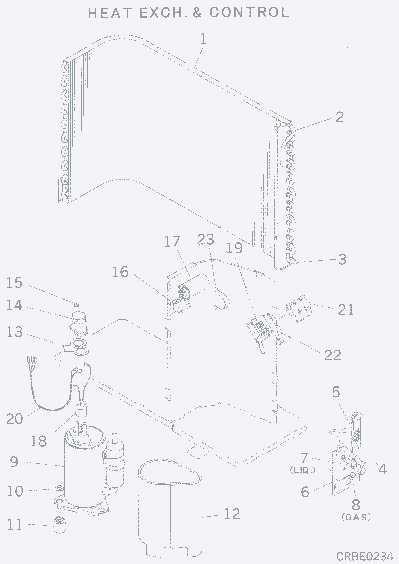

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact
RCS301A003
HEAT EXCH ASSY(AIR)
Contact
[2] Contact
RCS321A127
PIPE
Contact
[3] Contact
RCS321A139
PIPE
Contact
[4] Contact
RCS315B001
CAPILLARY
Contact
Notes: !
[4-5] Contact
RCS304A002
PIPING ASSY
Contact
Notes: !
[5] Contact
RCS315B002
CAPILLARY,SUB
Contact
Notes: !
[6] In Stock
RCS116A004
BRACKET,VALVE
[7] In Stock
RCS381A001
VALVE,SERVICE(1/4"
Notes: LIQ., LIQ.‚  - 1/4 INCH Show Image
RCS381A001
[8] In Stock
RCS381A002
VALVE,SERVICE(3/8"
Notes: GAS., GAS Show Image
RCS381A002
[9] In Stock
RSA201A018
COMPRESSOR ASSY
Notes: ***COMPRESSORS CANNOT BE RETURNED***
[10] Contact
SSA914A013A
NUT,FLANGE
Contact
Notes: 1pc
[11] Contact
RMC941C002
CUSHION,RUBBER
Contact
[12] Contact
RCS154D014
INSULATION,COMP
Contact
[13] Contact
RSA932C005
GASKET,COVER
Contact
[14] Contact
RSA947K006
COVER,TERMINAL
Contact
[15] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[16] In Stock
SSA552A497B
CAPA. RUN
Notes: RUNNING CAPACITOR Show Image
SSA552A497B
[17] In Stock
SSA552A843A
CAPACITOR,RUNNING
Notes: CC 25MF 370VAC Show Image
SSA552A843A
[18] In Stock
RSA533B004
PROTECTOR,MOTOR
Show Image
RSA533B004
[19] Contact
SSA561B669
BLOCK,TERMI
Contact
[20] In Stock
RCS504A001
WIRING ASSY
Notes: FOR COMP. Show Image
RCS504A001
[21] Contact
RCS142A500
COVER(TB)
Contact
[22] Contact
RCS116A500
BRACKET(TB)
Contact
[23] Contact
SSA937A812
CLAMP
Contact
[24] Contact
RMC011F008B
LABEL,MODEL NAME
Contact
SKU: SRC10CHVA HEAT EXCH. AND CONTROL Category:
