SRC10CFVA PANEL AND FAN ASSY

SRC10CFVA PANEL AND FAN ASSY

Available Parts

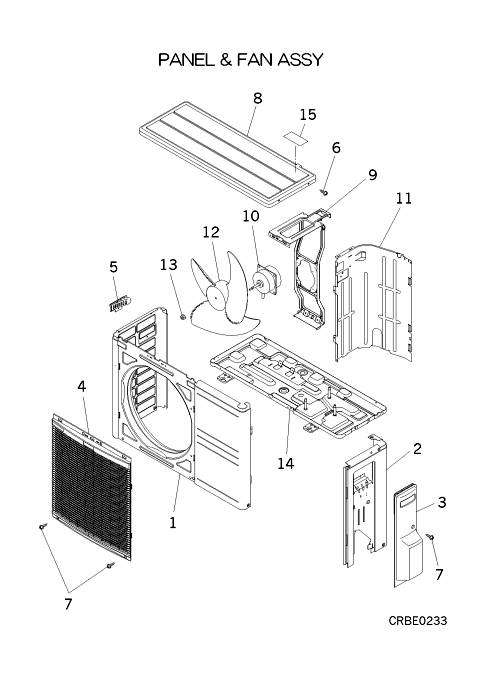

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCS122A001 PANEL,FRONT In Stock
  • [2] RCS123A001 PANEL,SIDE(R) In Stock
  • [3] RCS132A001 PANEL,SERVICE Contact   Contact
  • [4] RCS435A002 GRILL ASSY,AIR OUT In Stock Notes: PLASTIC GRILLE COVERS THE FAN
  • [5] SSA944B036B HANDLE In Stock Notes: LENGTH 9.7CM Show Image
  • [6] SSA913A034B SCREW In Stock Notes: 1PC ONLY, 4X8
  • [7] SSA913A034C SCREW In Stock Notes: 1PC ONLY, 4X12
  • [8] RCS124A500 PANEL ASSY,TOP Contact   Contact
  • [9] RCS116A003 BRACKET,MOTOR Contact Substitute: RCS116A006   Contact
  • [10] SSA511J221 MOTOR,AC In Stock Show Image
  • [11] RCS141A500 PLATE,BAFFLE Contact   Contact
  • [12] SSA431B213 PROPELLER In Stock
  • [13] SSA914B007AC NUT TH In Stock Notes: 1PC, END NUT - LOCKS FAN BLADE ON TO MOTOR SHAFT Show Image
  • [14] RCS111A001D BASE ASSY Contact   Contact
  • [15] RSA011H016A LABEL,NOTICE Contact   Contact
SKU: SRC10CFVA PANEL AND FAN ASSY Category:
