SRC10CFVA HEAT EXCH. AND CONTROL

SRC10CFVA HEAT EXCH. AND CONTROL

Available Parts

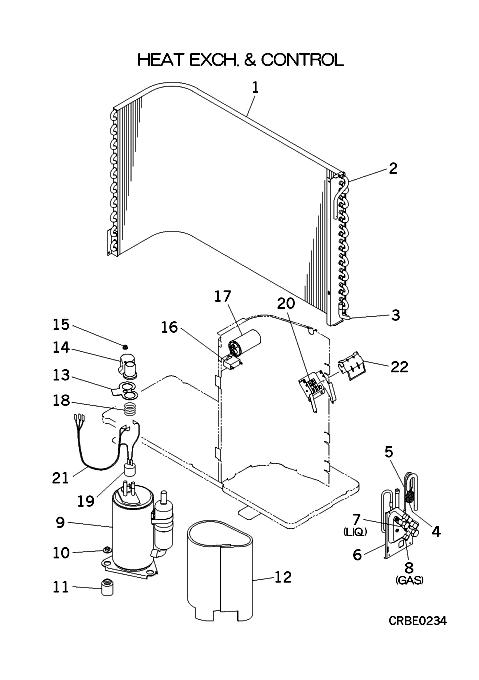

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1-3] RCS301A001B HEAT EXCH ASSY(AIR Contact   Contact
  • [2] RCP321A035A PIPE Contact Notes: !   Contact
  • [3] RCS321A003A PIPE Contact Notes: !   Contact
  • [4] RCS315B001 CAPILLARY Contact Notes: !   Contact
  • [4-5] RCS304A002 PIPING ASSY Contact Notes: !   Contact
  • [5] RCS315B002 CAPILLARY,SUB Contact Notes: !   Contact
  • [6] RCS116A004 BRACKET,VALVE Contact   Contact

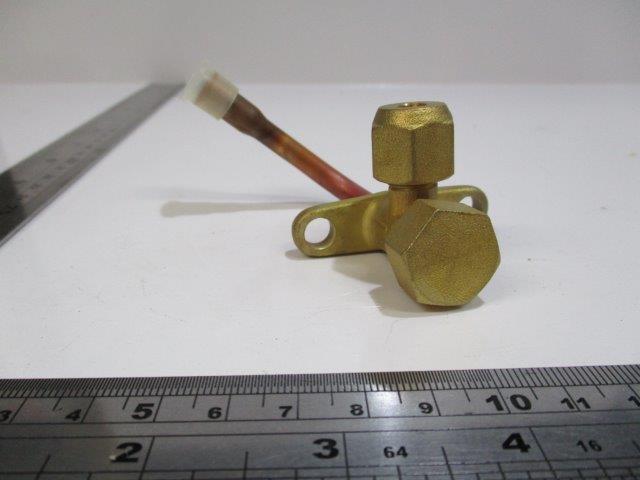

  • [7] RCS381A001 VALVE,SERVICE(1/4 In Stock Notes: LIQ. - 1/4 INCH, LIQ. Show Image

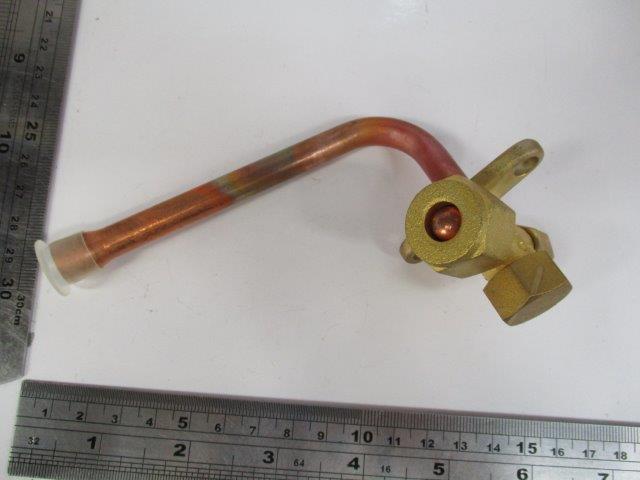

  • [8] RCS381A002 VALVE,SERVICE(3/8 In Stock Notes: GAS, GAS. Show Image
  • [9] RSA201A018 COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***
  • [10] SSA914C013A NUT,FLANGE In Stock Notes: 1PC Show Image
  • [11] RSA941C003 CUSHION,RUBBER Contact   Contact
  • [12] RCS154D001 INSULATION,COMP Contact   Contact
  • [13] RSA932C005 GASKET,COVER Contact   Contact
  • [14] RSA947K006 COVER,TERMINAL Contact   Contact
  • [16] SSA552A497B CAPA. RUN In Stock Notes: RUNNING CAPACITOR Show Image

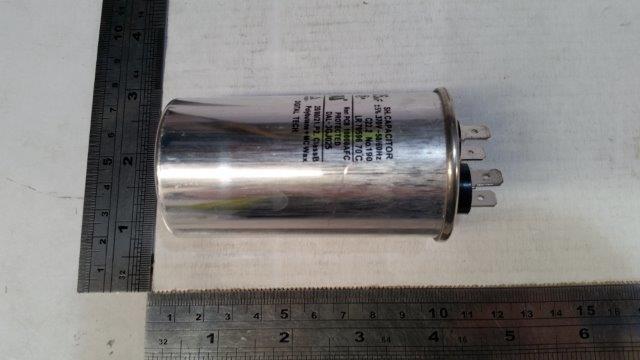

  • [17] SSA552A843A CAPACITOR,RUNNING In Stock Substitute: SSA552A178J Notes: CC 25MF 370VAC Show Image
  • [18] AHA941D003 SPRING (PROTECTOR) In Stock Substitute: RM80088 Show Image

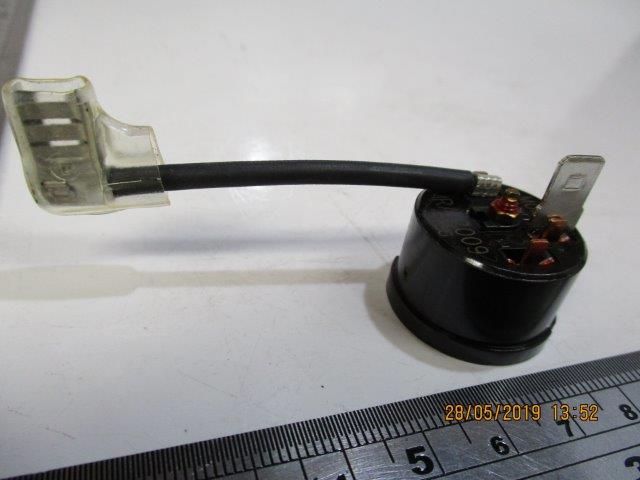

  • [19] RSA533B004 PROTECTOR,MOTOR In Stock Show Image
  • [20] SSA561B669 BLOCK,TERMI Contact   Contact

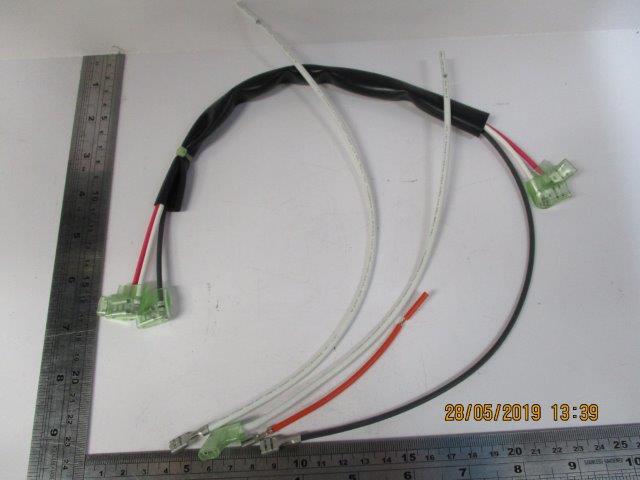

  • [21] RCS504A001 WIRING ASSY In Stock Notes: FOR COMP., FOR COMP. Show Image
  • [22] RCS142A500 COVER(TB) Contact   Contact
  • [23] RCS011F002 LABEL,MODEL NAME Contact Notes: !   Contact
SKU: SRC10CFVA HEAT EXCH. AND CONTROL Category:
